Description

Yealink SkySound CS10 Nigeria

The Yealink SkySound CS10 Nigeria is recognized for its discreet 2-way coaxial network speaker, renowned for delivering outstanding audio performance, particularly in video conferencing settings. Tailored for contemporary meeting areas,Yealink SkySound CS10 Nigeria seamlessly integrates superior sound quality with a sleek, minimalist aesthetic, perfectly suited for modern conference rooms. Engineered with versatility and user-friendliness in mind, this Power over Ethernet (PoE) enabled speaker offers flexible deployment options, including various supplementary components, streamlining installation across diverse ceiling types. Its refined design elevates the CS10 beyond mere speaker status, transforming it into an essential enhancement for your meeting environment, enriching both auditory and visual aspects. Beyond its practical utility, the CS10 embodies sophistication and technological elegance, positioning it as the ultimate audio solution for professional requirements.

Yealink SkySound CS10 Key Features

 Innovative Coaxial Structure: This speaker is equipped with a 2-way coaxial arrangement consisting of a sturdy 5.7-inch LF Woofer and a distinctive 1.1-inch HF Tweeter, guaranteeing precise audio reproduction.

High Performance Acoustics: This speaker displays exceptional acoustic qualities, boasting an 88-decibel sensitivity at 1 watt per meter and reaching a maximum sound pressure level of 99 decibels at 20 watts per meter, guaranteeing accurate and powerful audio performance.

PoE Enabled Active Speaker: The Yealink SkySound CS10 Nigeria  combines advanced active speaker features with a built-in DAC and PoE technology for seamless integration. This unique blend allows for quick digital signal processing from the network, making setup easy with low latency, perfect for various professional settings.

Dante Ready for Advanced Audio Networking: The Yealink SkySound CS10 Nigeria comes in two versions: one with Dante compatibility and another as a standard model. It seamlessly integrates into advanced audio networks, offering flexibility for intricate setups and complete compatibility with Dante audio systems.Opt for the Dante-enabled option for access to its enhanced audio networking capabilities.

Versatile Deployment:  Provides a range of indoor installation choices that work with different ceiling types and grid systems, guaranteeing seamless integration with any interior design plan.

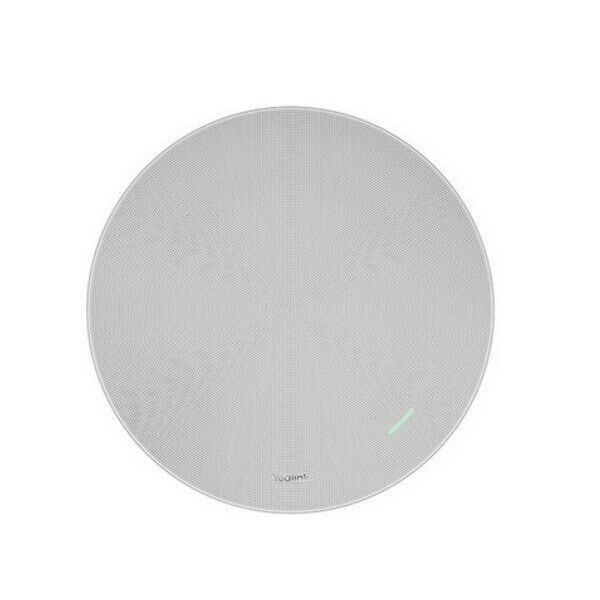

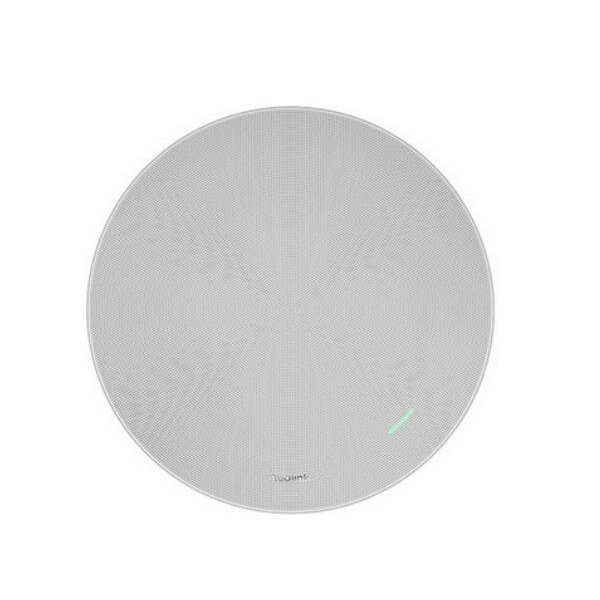

Sophisticated Design: This speaker comes with a detachable magnetic grille that can be painted to suit your style, available in black or white. The grille enhances the speaker’s sleek design, measuring 120 mm to fit well with different modern interiors.

Yealink SkySound CS10 Specifications

Package Content

• SkySound CS10 Speaker
• White Mesh Cover (Black Optional)
• Quick Star t Guide
• Assembly Fixing Bracket
• Dust Cover
• Deployment Instruction Template
• Bracing Bridge (Optional)
• Dust Cover Screw*6 (M3*4CMHOZN3)

Audio Specifications

• Frequency Response (6dB): 10020kHz
• Maximum SPL:
  • Continuous: 99dB @20W 1m
  • Sensitivity: 88dB@1m 1W

Speaker Specification

• LF: 5.7inch (145 mm) woofer
• HF: 1.1inch (28 mm) tweeter
• Nominal Impedance: 8Ω
• Nominal Coverage Angle: 120

Product Specifications

• Size:
  • ф294*H125.8mm (with cover mesh）
  • ф2*H125mm (without cover mesh)
• Weight:
  • 2808g (without cover mesh) ；
  • 207g (Cover mesh)
• Product Color: white/black
• Cover Mesh Color: white/black
• Product Materials:
  • Cover Mesh: PC/ABS Welded SPCC
  • Main Body Shell: PA (Polyamide) with 15% GF
  • Bottom Shell: aluminum alloy
  • Cover Plate: PC/ABS and SGCC
  • Plenum Rated UL 2043 (suitable for air handling spaces)

Physical Specifications

• Operating Temperature: 050℃
• Storage Temperature: 050℃
• Operating Humidity: 5%~90%
• Peak Power: 20W
• Power Supply: PoE+ (IEEE 802.3at class 4)
• Interface: 1*RJ45

Logistic Information

• Canton Size: 398 mm*355 mm*185mm
• W/CTN: 4.628kg
• W/CTN: 5.597kg
