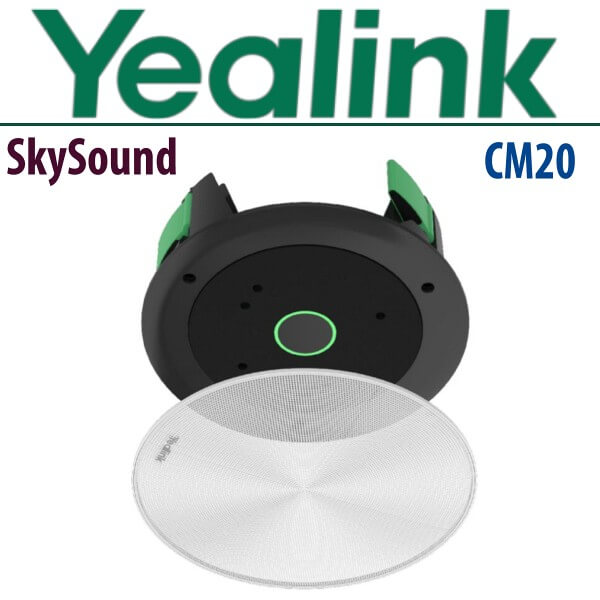

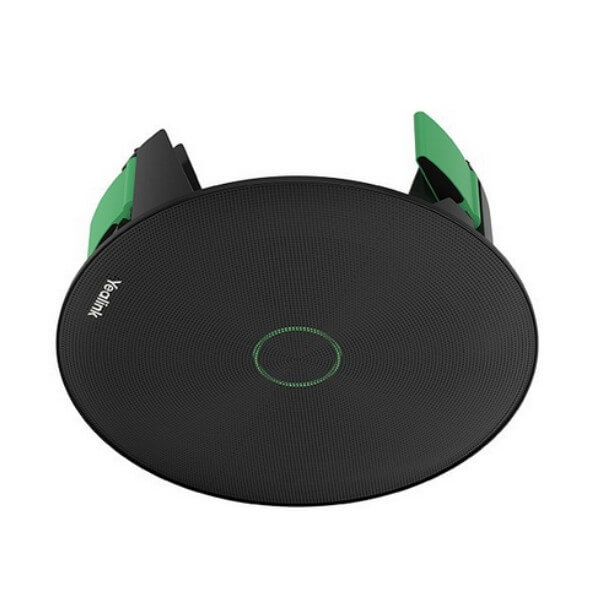

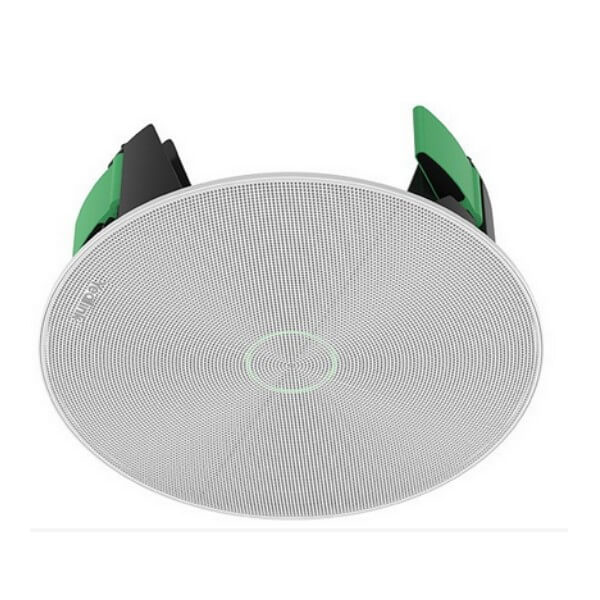

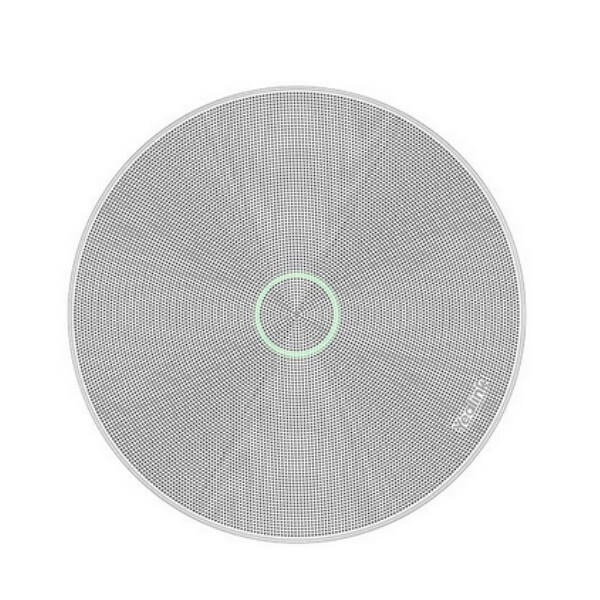

Yealink SkySound CM20 Nigeria
The Yealink SkySound CM20 Nigeria emerges as a top-tier ceiling microphone, meticulously designed to enhance audio quality in professional conference settings. With its sophisticated array of 16 omnidirectional microphones, the CM20 expertly captures sound from all angles, promoting clear and inclusive conversations. Its seamless integration with Yealink MVC systems, powered by DSP technology, simplifies audio processing without the need for additional equipment. Specifically engineered for medium to large conference areas, this microphone blends advanced technology with an elegant design, achieving a perfect balance of style and performance.
Yealink SkySound CM20 Features
Advanced Microphone Array: The Yealink SkySound CM20 Nigeria includes 16 omnidirectional units that guarantee excellent audio clarity across 8 separate pickup zones.
Superior Coverage: This device can cover areas up to 60 square meters and offers high-quality full-duplex audio recording for spaces up to 30 square meters, making it perfect for medium to large areas.
Intelligent Sound Processing: Using Yealink’s advanced technologies, it effectively removes noise, echo, and reverberation, guaranteeing clear audio in all meetings.
Intelligent Tracking: This device features 8 beam outputs for accurate speaker tracking and smoothly connects with room cameras to enhance camera tracking, enhancing meeting engagement and participation.
In-built DSP for Simplicity: The SkySound CM20 comes with a built-in DSP, which guarantees smooth integration with Yealink MVC systems and eliminates the necessity for external audio processing.
Network and Deployment Efficiency: This device effortlessly connects to audio systems that support AES67. With Power over Ethernet capability, it only needs one Ethernet cable for power and audio transmission.
Versatile Ceiling Integration: Provides a range of installation choices such as in-ceiling, pendant, and on-ceiling to simplify setup and smoothly blend into any setting.
Elegant and Unobtrusive Design: The product features a detachable mesh cover with magnetic suction, providing an elegant look and effortless maintenance due to its simple design.
Yealink SkySound CM20 Specifications
o Package Content:
o SkySound CM20 Microphone
o White Mesh Cover (Black Optional)
o Quick Start Guide
o Assembly Fixing Bracket
o Dust Cover
o Length-Adjustable Pole (Optional)
o Bracing Bridge*1 pair
o Suspend Pole Adapter (Optional)
o Expansion Bolt*6 (φ6 * 30 mm, white, Polyamide)
o Self-tapping Screw*6 (T4*30mm)
o Machine Screw*5 (3*6PMOZN3+)
o Bracing Bredge Screw*20 (M3*6PWMHOZN3)
o Audio Specifications
o Frequency Response: 120Hz-16kHz
o Maximum SPL: 122dBSPL
o Signal Noise Ratio: 94dBSPL @1kHz A-Weight
o Sensitivity: 0 dBV/Pa 94dBSPL@1kHZ
o Microphone: 16 omni-direction microphones
o AEC Channel: 1 channel internal
o Physical Features
o Operating Temperature: 0-50℃
o Storage Temperature: 0-70℃
o Operating Humidity: 5%~90%
o Continuous Power: 5.7W
o Peak Power: 9W
o Interface: 1*RJ-45
o Power Supply: PoE (IEEE 802.3af, class 3)
o Product Specifications
o Size:
223*H83mm (with cover mesh)
215*H81mm (without cover mesh)
o Weight: 615g
o Product Color: Pearl Light Gray
o Product Materials: ABS+PC&iron mesh
o Logistic Information
o Box Size: 398 mm*310 mm*135mm
o W/CTN: 2.462kg
o W/CTN: 3.078kg
