Ubiquiti USW-FlexXG Nigeria

Rating

Ubiquiti USW-FlexXG Nigeria

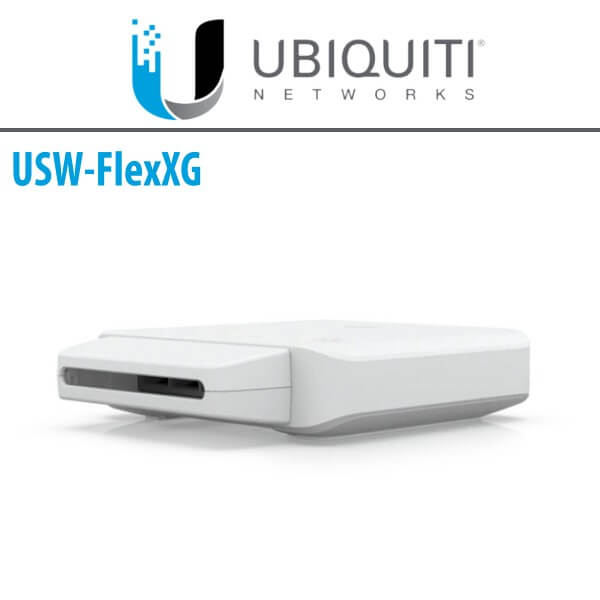

Ubiquiti USW-FlexXG Nigeria comes with a slim, compact housing that can easily be mounted on a desktop. It is a fully managed, multi-gigabit, Layer 2 switch with (4) 10GbE RJ45 ports and (1) GbE PoE input.

Description

Ubiquiti USW-FlexXG Network Switch Nigeria

Ubiquiti USW-FlexXG Nigeria comes with a slim, compact housing that can easily be mounted on a desktop. It is a fully managed, multi-gigabit, Layer 2 switch with (4) 10GbE RJ45 ports and (1) GbE PoE input. This switch can also be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.

Easily expand your network with the UniFi Switch Flex XG (USW-Flex-XG), a highly configurable, managed, 10GbE Layer 2 switch with five RJ45 Gigabit Ethernet ports, including one PoE Gigabit input and four 10GbE RJ45 Ethernet ports. Sporting a compact, slim design, the USW Flex XG delivers high-performance switching in any environment and is centrally managed in the UniFi Network application.

Features:

  • (1) GbE, 802.3at PoE+ RJ45 input

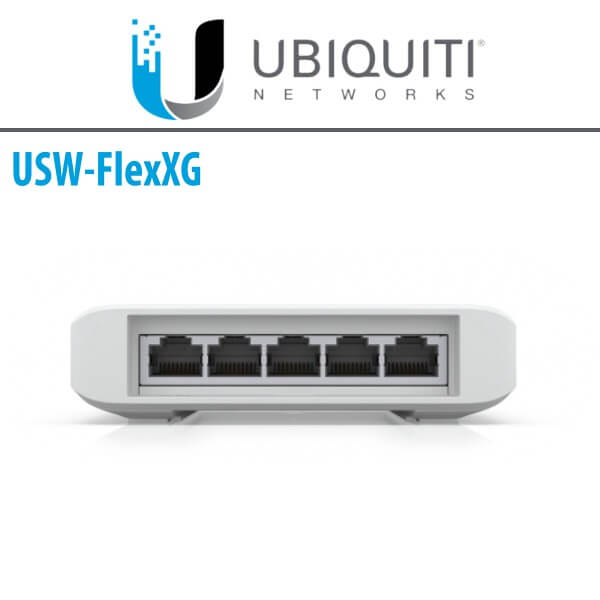

  • (4) 10GbE RJ45 ports
  • Compact, slim housing
  • Can be powered with a 5V, 5A USB-C adapter

Technical Specs

Mechanical
Dimensions 135 x 185 x 32 mm (5.31 x 7.28 x 1.27″)
Weight 1.2 kg (2.65 lb)
Enclosure Material Polycarbonate
Hardware
Total Non-Blocking Throughput 41 Gbps
Switching Capacity 82 Gbps
Forwarding Rate 61.012 Mpps
Max Power Consumption 25W
Power Method
  • (1) 802.3at PoE, 50-57VDC, 25W
  • (1) USB Type-C, 5VDC, 5A
Power Supply
  • 802.3at PoE (Pins 1, 2+/3, 6- or 4, 5+/7, 8)
  • AC/DC Power Adapter, 5VDC, 5A, 1.5 m Cord (Included)
Supported Voltage Range 90 to 264VAC (Adapter)
Management Interface Ethernet In-Band
Networking Interfaces
  • (1) 10/100/1000 Mbps RJ45 Ethernet
  • (4) 100/1,000/2,500/5,000/10,000 Mbps RJ45 Ethernet
Services SMB Layer 2 Gigabit Ethernet Switch
ESD/EMP Protection Air: ± 16 kV, Contact: ± 12 kV
Button Factory Reset
Operating Temperature -5 to 45° C (23 to 113° F)
Operating Humidity 10 – 90% Non-condensing
Certifications CE, FCC, IC

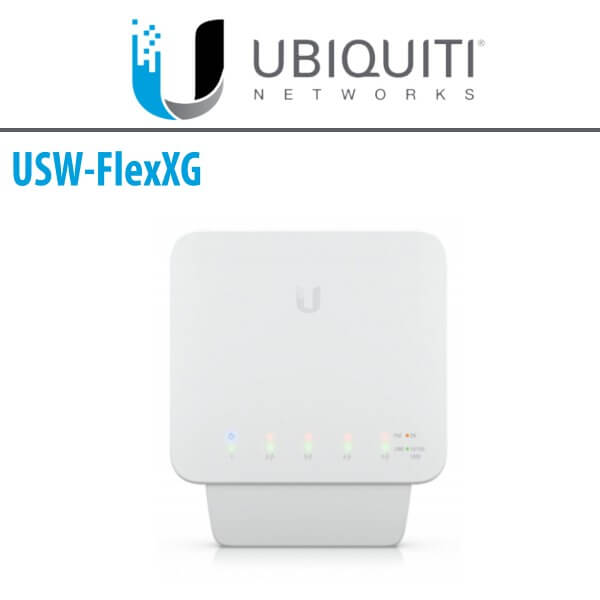

LEDs
System
  • (1) Power, Blue/White
  • Flashing White : Bootup in Progress
  • Flashing Blue : Firmware Upgrading
  • Steady White : Factory Defaults, Awaiting Adoption
  • Steady Blue : Device is Adopted
Ethernet White : Link or Activity
