Description
Ubiquiti USW-FlexMini Network Switch Nigeria

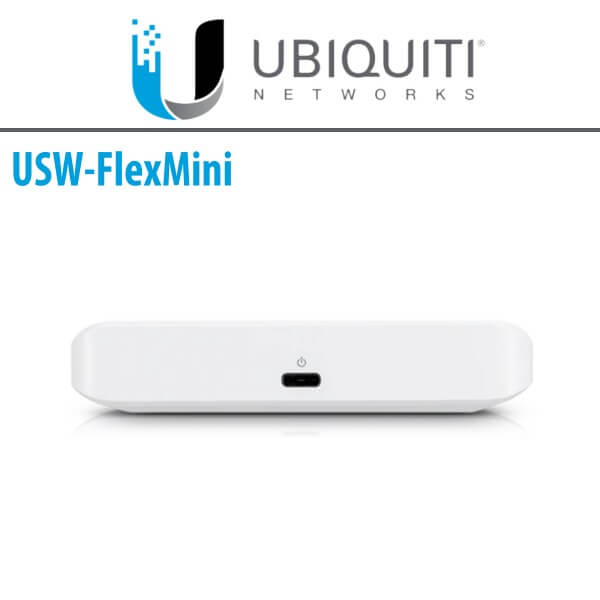

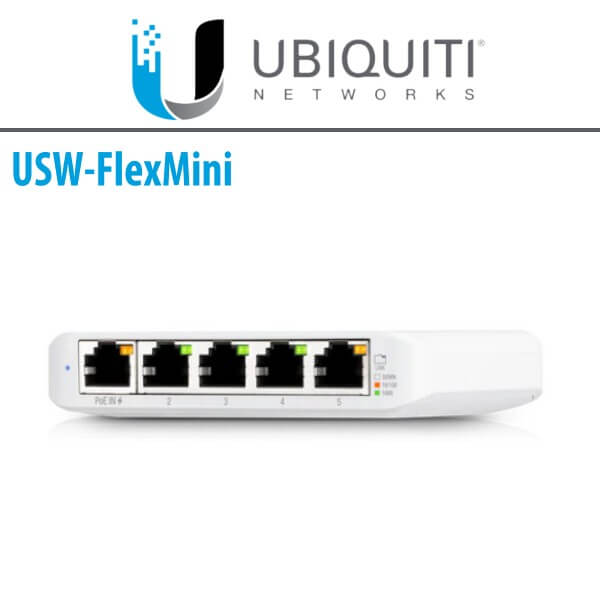

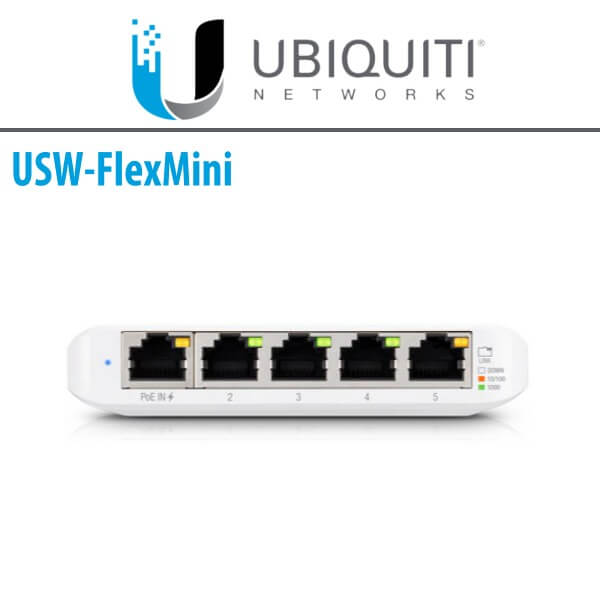

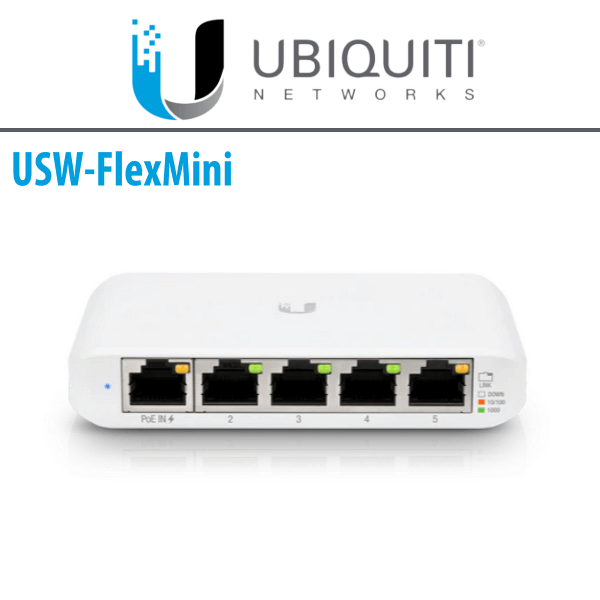

The Ubiquiti USW-FlexMini Nigeria is a fully managed, Layer 2 switch with (5) GbE RJ45 ports, including (1) 802.3af PoE input. The USW Flex Mini can be powered with either PoE (via Port 1) or its included USB-C power adapter. This switch can also be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
Expand your network with the compact Ubiquiti USW-FlexMini Nigeria 5-Port Gigabit Managed Switch from Ubiquiti Networks. This 5-port fully managed router features five RJ45 Gigabit Ethernet ports that provide fast, wired connections to compatible devices, supporting a 10 Gb/s switching capacity and 7.44 Mbps forwarding rate. The Ubiquiti USW-FlexMini Nigeria can also be powered through its PoE-in port when connected to a compatible 802.3af/at device or using the included USB Type-C power adapter. With its small, fanless desktop design, the Ubiquiti USW-FlexMini Nigeria fits into almost any office, home, or business environment, where it operates silently. Use the UniFi Network Controller platform (version 5.12.5 or higher) to configure, manage, and monitor the switch and its connected devices.
Features
- (1) GbE, 802.3af PoE RJ45 input
- (4) GbE RJ45 ports
- Compact, slim housing
- Can be powered with a 5V, 1A USB-C adapter
Technical Specs
| Mechanical | |
|---|---|
| Dimensions | 107.16 x 70.15 x 21.17 mm (4.22 x 2.76 x 0.83″) |
| Weight | 150 g (5.29 oz) |
| Interfaces Networking PoE In Management |
(5) 10/100/1000 Mbps RJ45 Ports |
| Total Non-Blocking Throughput | 5 Gbps |
| Switching Capacity | 10 Gbps |
| Forwarding Rate | 7.44 Mpps |
| Power Method | USB Type C, 5V 802.3af/at PoE (44 – 57VDC, 0.05 – 0.04A) |
| Power Supply | 5V, 1A Power Adapter* |
| Voltage Range USB Type C 802.3af/at PoE |
4.7 – 5.3VDC 44 – 57VDC |
| Max. Power Consumption | 2.5W |
| LEDs System RJ45 Data Ports |
Status Speed/Link/Activity |
| ESD/EMP Protection | ± 16kV Air, ± 12kV Contact |
| Shock and Vibration | ETSI300-019-1.4 Standard |
| Operating Temperature | -5 to 45° C (23 to 113° F) |
| Operating Humidity | 10 to 90% Noncondensing |
| Certifications | CE, FCC, IC |
