Description

Ubiquiti USW-EnterpriseXG24 Network Switch Nigeria

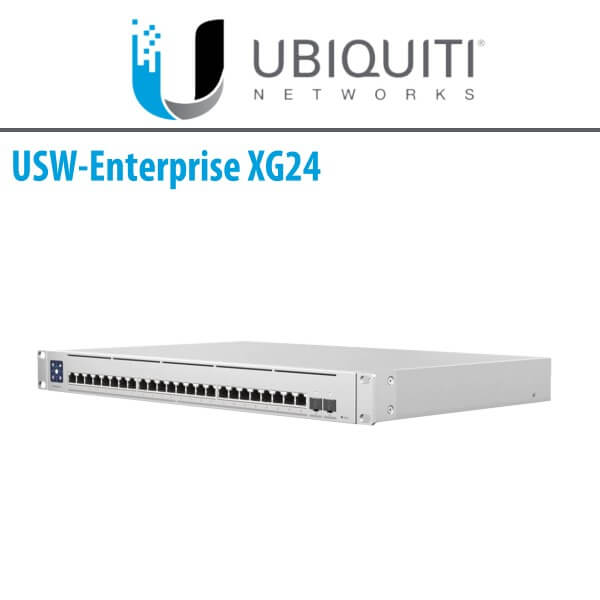

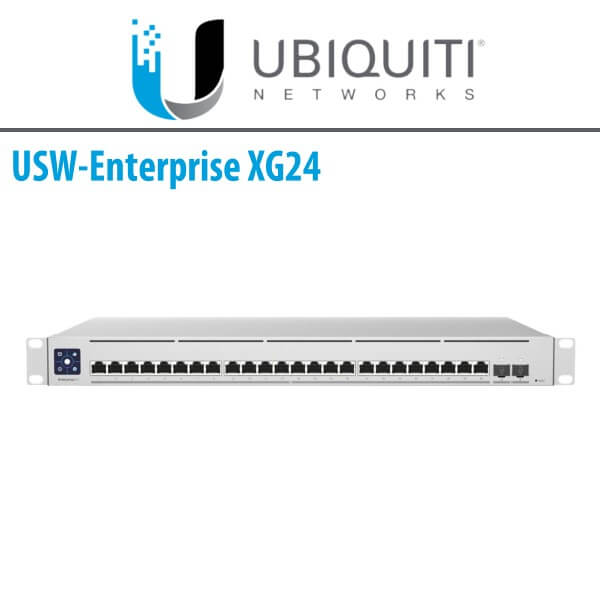

The Ubiquiti USW-EnterpriseXG24 Nigeria is a fully managed, multi-gigabit, Layer 3 switch with (24) 10GbE RJ45 ports and (2) 25G SFP28 ports. The Switch Enterprise XG 24 also features a 1.3″ LCM color touchscreen that concisely displays key system and connection insights.

Additionally, the Ubiquiti USW-EnterpriseXG24 Nigeria offers enhanced power supply failure protection when connected to the SmartPower Redundant Power System (USP RPS sold separately). This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.

Features

(1) 1.3″ LCM color touchscreen with AR switch management
(24) 10GbE RJ45 ports
(2) 25G SFP28 ports
(1) USP RPS DC input
Layer 3 switching features
Single-row RJ45 port layout for easy patch panel cable management
Managed with the UniFi Network application: Version 6.1.67 and later

Technical Specs

Mechanical
Dimensions	442 x 44 x 285 mm (17.4 x 1.7 x 11.2″)
Weight	Without Mount : 4.47 kg (9.85 lb) With Mount : 4.57 kg (11.02 lb)
Enclosure Materials	SGCC Steel
Mount Material	SGCC Steel
Hardware
Total Non-Blocking Throughput	290 Gbps
Switching Capacity	580 Gbps
Forwarding Rate	431.52 Mpps
Max. Power Consumption	100W
Power Method	(1) Universal AC input: 100-240VAC, 2A Max., 50/60 Hz (1) USP-RPS DC input: 11.5VDC, 8.7A
Power Supply	AC/DC, Internal, 100W
Management Interface	Ethernet In-Band
Networking Interfaces	(24) 100/1,000/2,500/5,000/10,000 Mbps RJ45 Ethernet
SFP28 Interfaces	(2) 1/10/25 Gbps SFP28*
Services	SMB Layer 3 Gigabit Ethernet Switch
ESD/EMP Protection	Air : ± 16 kV, Contact : ± 12 kV
LCM Display	1.3″ Touchscreen Bootup Animation : Bootup in Progress Firmware Upgrade Icon : Firmware Upgrading Steady White : Factory Defaults, Awaiting Adoption Steady Blue : Device is Adopted
Button	Factory Reset
LEDs	White: Link or Activity
Operating Temperature	-5 to 40° C (23 to 104° F)
Operating Humidity	10 – 95% Noncondensing
Certifications	CE, FCC, IC
