Ubiquiti USW-Enterprise48PoE Nigeria

Rating

Ubiquiti USW-Enterprise48PoE Nigeria

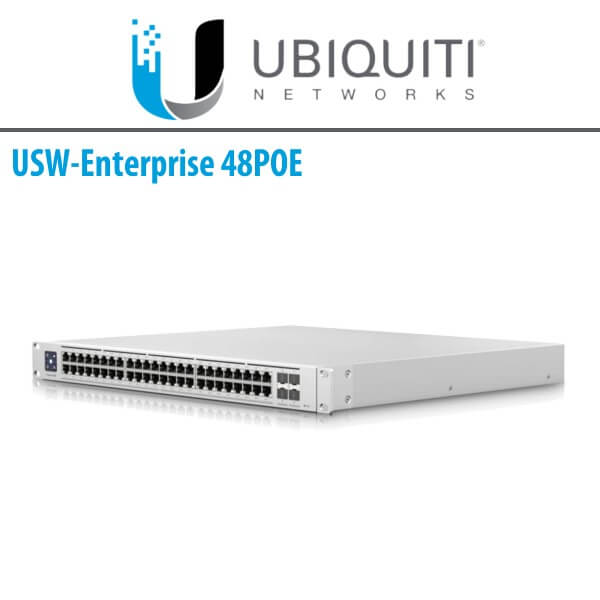

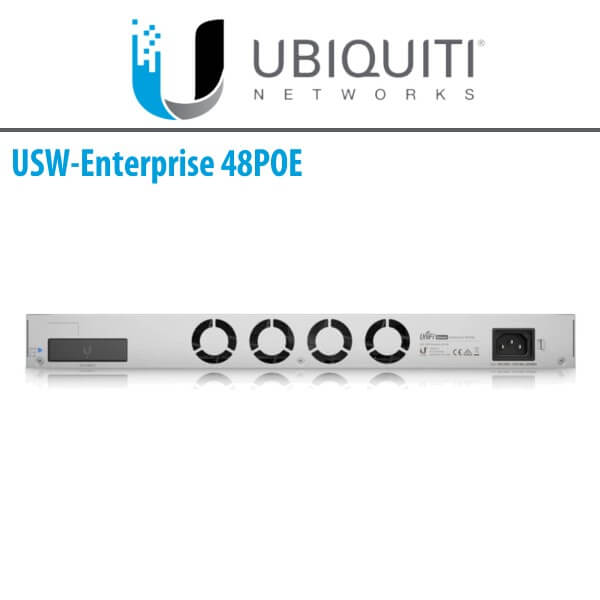

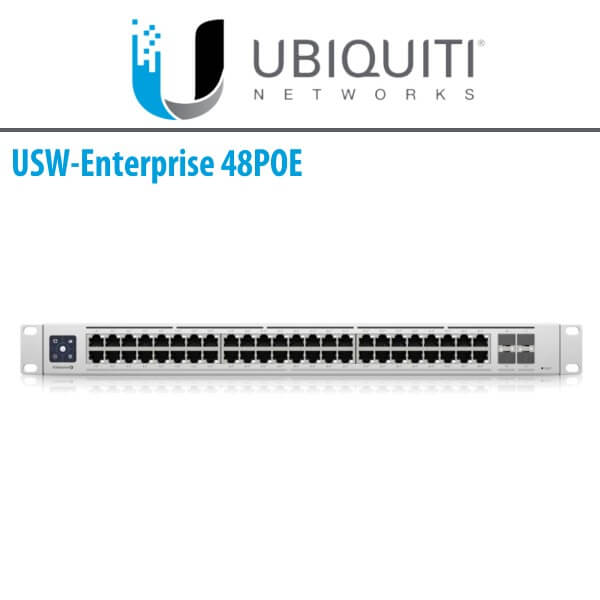

The Ubiquiti USW-Enterprise48PoE Nigeria is a fully managed switch with (48) 2.5GbE, 802.3at PoE+ RJ45 ports, (4) 10G SFP+ ports, and a 720W total PoE supply.

Description

Ubiquiti USW-Enterprise48PoE Network Switch Nigeria

The Ubiquiti USW-Enterprise48PoE Nigeria is a fully managed switch with (48) 2.5GbE, 802.3at PoE+ RJ45 ports, (4) 10G SFP+ ports, and a 720W total PoE supply. Along with its Layer 3 functionality, this switch offers an extensive suite of Layer 2 switching protocols, including port-specific operation modes (switching, mirroring, or aggregate).The USW Enterprise 48 PoE also features a 1.3″ LCM color touchscreen that concisely displays key system and connection insights.

Additionally, the USW Enterprise 48 PoE offers enhanced power supply failure protection when connected to the SmartPower Redundant Power System (USP RPS sold separately). This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.

Features

  • (1) 1.3″ LCM color touchscreen with AR switch management
  • (48) 2.5GbE, 802.3at PoE+ RJ45 ports
  • (4) 10G SFP+ ports
  • (1) USP RPS DC input
  • 720W total PoE supply
  • Layer 3 switching features

Specifications

Mechanical
Dimensions 442 x 44 x 400 mm (17.4 x 1.7 x 15.7″)
Weight
  • Without Mount : 6.2 kg (13.67 lb)
  • With Mount : 6.3 kg (13.89 lb)
Enclosure Material SGCC Steel
Mount Material SGCC Steel
Hardware
Total Non-Blocking Throughput 160 Gbps
Switching Capacity 320 Gbps
Forwarding Rate 238.095 Mpps
Max Power Consumption (Excluding PoE Output) 150W
Power Method
  • (1) Universal AC input, 100-240VAC, 10A Max, 50/60 Hz
  • (1) USP-RPS DC input, 52VDC, 13.84A; 11.5VDC, 13A
Power Supply AC/DC, Internal, 100-240V, 10A Max.
Management Interface Ethernet In-Band
Networking Interfaces (48) 100MbE/1GbE/2.5GbE RJ45 port
SFP+ Interfaces (4) 1/10G SFP+ ports
PoE Interfaces (48) PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
Total Available PoE 720W
Max. PoE+ Wattage per Port by PSE 34.2W
Voltage Range 802.3af Mode 44 to 57V
Voltage Range 802.3at Mode 50 to 57V
Services SMB Layer 3 PoE Gigabit Ethernet Switch
ESD/EMP Protection Air: ± 16 kV, Contact: ± 12 kV
LCM Display
  • (1) 1.3″ LCM color touchscreen
  • Bootup Animation : Bootup in Progress
  • Firmware Upgrade Icon : Firmware Upgrading
  • Steady White : Factory Defaults, Awaiting Adoption
  • Steady Blue : Device is Adopted
Button Factory Reset
Operating Temperature -5 to 40° C (23 to 104° F)
Operating Humidity 10 – 90% Noncondensing
Certifications CE, FCC, IC
LED
Ethernet White : Link or Activity
SFP+ White : Link or Activity
