Ubiquiti UniFi US-16-150W Switch Nigeria

Rating

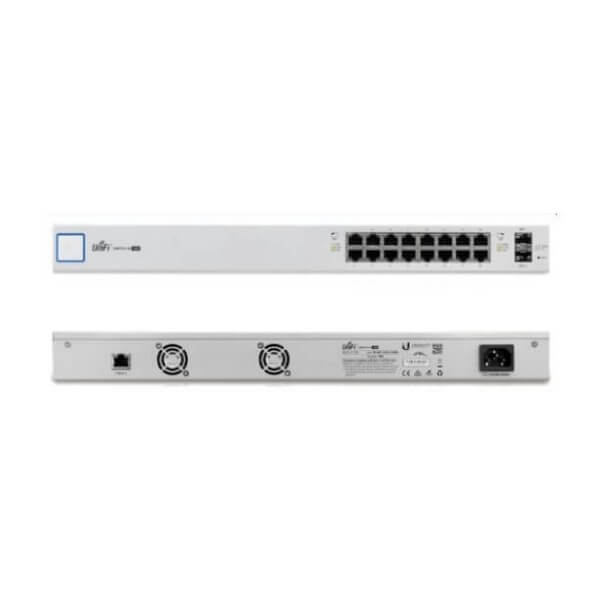

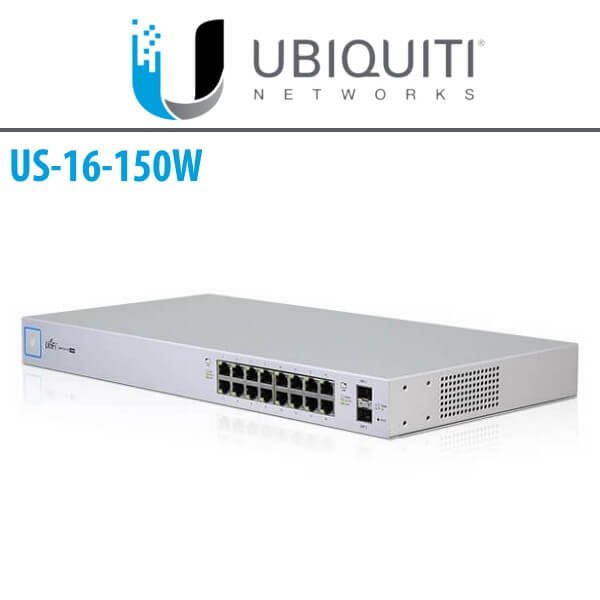

Ubiquiti UniFi US-16-150W Switch Nigeria

The Ubiquiti UniFi® Switch 16-150W PoE Switch Nigeria is a fully managed, 16-port PoE+ Gigabit switch that offers advanced enterprise switching technology with functions like dynamic and static VLAN tagging, port isolation, storm control, and guest control.

Description

UniFi US-16-150W Switch Nigeria

The Ubiquiti UniFi US-16-150W Switch Nigeria delivers robust performance over its 18 independent switching ports. Two SFP ports offer optical connectivity, and 16 Gigabit Ethernet ports of auto-sensing IEEE 802.3af/at or configurable 24V passive PoE allow you to simplify your infrastructure.

The Ubiquiti UniFi US-16-150W Switch Nigeria delivers robust performance, intelligent switching for growing networks and provides the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.

UniFi® Switches are versatile Gigabit switches that are both wall or desk-mountable. They have auto-sensing IEEE 802.3af/at PoE/PoE+ and 24V passive PoE adding the convenience to power multiple devices on the same network with ease. With the help of UniFi Controller software, network administrators can easily configure and manage the switch, view topology, statistics and switch port status information all at one place.

Key Features

  • 16 x Gigabit RJ45 Ports
  • 2 x SFP Ports
  • 1 x Serial Console Port
  • Non-Blocking Throughput : 18 Gbps
  • Switching Capacity : 36 Gbps
  • Forwarding Rate : 26.78 Mbps
  • Maximum Power Consumption : 150W
  • Supports PoE+ IEEE 802.3at/af and 24V Passive PoE
  • Rack-Mountable or Wall-Mountable with Rack-Mount Brackets (Included)
  • Versatile Mounting Options
    • The Ubiquiti UniFi US-16-150W Switch Nigeria can be placed either on a desktop, on a wall, or in a rack.
  • Versatile Port Configuration
    • Sixteen Gigabit RJ45 ports offer different power output options : auto-sensing IEEE 802.3af/at PoE/PoE+ and 24V passive PoE, and two SFP ports provide optical fiber connectivity options to support uplinks of up to 1 Gbps.
  • Integration with UniFi Controller
    • The Ubiquiti UniFi US-16-150W Switch Nigeria integrates with the UniFi Controller software for centralised management of your UniFi devices.

Technical Specifications

General

  • Dimensions : 443 x 43 x 221 mm (17.44 x 1.69 x 8.70″)
  • Weight :
    • Rack-Mount Brackets Excluded – 2.80 kg (6.17 lb)
    • Rack-Mount Brackets Included – 2.89 kg (6.37 lb
  • Networking Interfaces :
    • 16 x 10/100/1000 Mbps RJ45 Ethernet Ports
    • 2 x 1 Gbps SFP Ethernet Ports
  • Management Interface : Ethernet In-Band
  • Total Non-Blocking Throughput : 18 Gbps
  • Switching Capacity : 36 Gbps
  • Forwarding Rate : 26.78 Mpps
  • MAC Address Table : 16384
  • Maximum Aggregations : 6
  • Monitoring Sessions : 1
  • Maximum VLANs : 255
  • Power Method : 100-240VAC/50-60 Hz, Universal Input
  • Power Supply : AC/DC, Internal, 150W DC
  • Max. Power Consumption :
    • Including PoE Output : 150W
    • Excluding PoE Output : 28W
  • LEDs Per Port :
    • RJ45 Data Ports : PoE, Speed/Link/Activity
    • SFP Data Ports : Speed/Link/Activity
  • Sound Level (Background noise level : 27.5 dBa) :
    • Fan Level : 0 : 1.7 dBr
    • Fan Level : 1, 2, 3 : 10.8 dBr
  • ESD/EMP Protection Air : ± 24 kV, Contact : ± 24 kV
  • Shock and Vibration : ETSI300-019-1.4 Standard
  • Operating Temperature : -5 to 40° C (23 to 104° F)
  • Operating Humidity : 5 to 95% Noncondensing
  • Certifications : CE, FCC, IC

PoE+ Per Port

  • PoE Interfaces :
    • PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
    • 24VDC Passive PoE (Pins 4, 5+; 7, 😎
  • Max. PoE+ Wattage per Port by PSE : 34.2W
  • Voltage Range 802.3at Mode : 50–57V
  • Max. Passive PoE Wattage per Port : 17W
  • 24V Passive PoE Voltage Range : 20-27V
