Ubiquiti UniFi UAP-IW-HD Nigeria

Rating

Ubiquiti UniFi UAP-IW-HD Nigeria

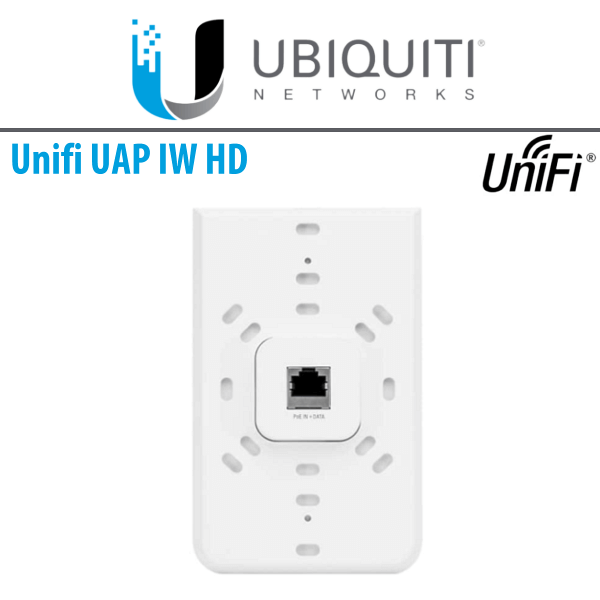

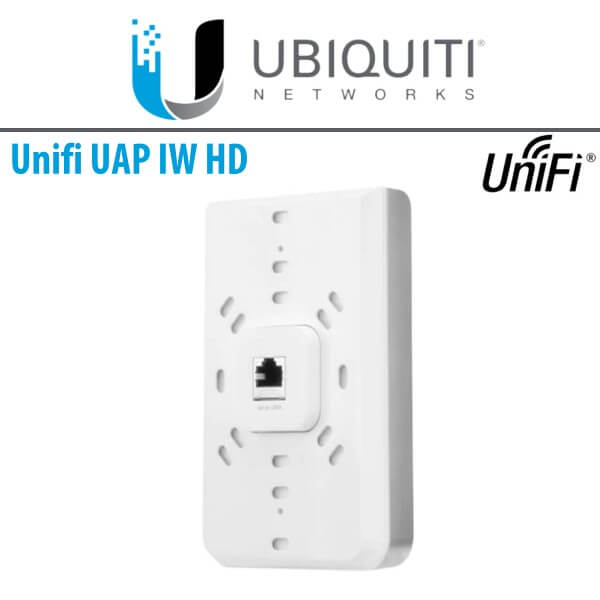

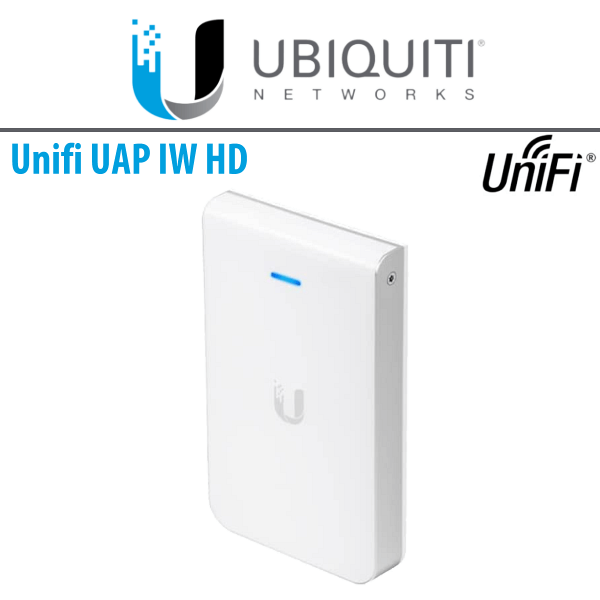

The Ubiquiti UAP-IW-HD Nigeria is a high-density In-Wall access point with a refined industrial design. It can be easily installed using the included mounting hardware. The sleek and elegant Ubiquiti UAP-IW-HD Nigeria transforms an Ethernet wall connection into a simultaneous, dual-band 802.11ac Wi-Fi Access Point with 4×4 MIMO technology.

Description

Ubiquiti UniFi UAP-IW-HD In-Wall Access Point Nigeria

The Ubiquiti UniFi UAP-IW-HD Nigeria is a high-density In-Wall access point with a refined industrial design. It can be easily installed using the included mounting hardware. The sleek and elegant Ubiquiti UAP-IW-HD Nigeria transforms an Ethernet wall connection into a simultaneous, dual-band 802.11ac Wi-Fi Access Point with 4×4 MIMO technology.

Features

  • Superior Processing Power
    • The Ubiquiti UniFi UAP-IW-HD Nigeria is capable of complex operations (guest control, filtering, and other resource-intensive tasks) that may slow down a lesser-equipped AP.
  • Power over Ethernet (PoE) Standard
    • The UAP-IW-HD can be conveniently powered by an 802.3af or 802.at compliant switch. We recommend powering your UniFi devices with a UniFi PoE Switch.
  • Customizable with Various Skins
    • Optional skins (sold separately) allow the Ubiquiti UAP-IW-HD Nigeria to discreetly blend into its setting.
  • UniFi Network application
    • Use the UniFi Network application to provision thousands of UniFi APs, map out networks, quickly manage system traffic, and provision additional UniFi APs.
  • Quick and Simple Installation
    • The Ubiquiti UniFi UAP-IW-HD Nigeria has a refined industrial design and can be easily installed using the included mounting hardware.

Specifications

Physical Characteristics

  • Dimensions :  139.7 x 86.7 x 25.75 mm (5.5 x 3.41 x 1.01″)
  • Weight : 210 g (7.41 oz)
  • Networking Interface : 5 x 10/100/1000 Ethernet Ports
  • Buttons : Reset
  • Power Method :
    • 802.3af PoE
    • 802.3at PoE+
  • Supported Voltage Range : 44 to 57VDC
  • PoE Out : 48V Passthrough (Pins +1, 2; -3, 6)
  • Power Save : Supported
  • Beamforming : Supported
  • Maximum Power Consumption : 11W
  • With PoE Passthrough : 23W
  • TX Power :
    • 2.4 GHz : 23dBm
    • 5 GHz : 26 dBm
  • Dual Band Antennas : 2 x Single-Port, Single-Polarity Dual-Band Antennas, 2.4 GHz : 1.8 dBi Each, 5 GHz : 3.4 dBi Each
  • Single-Band : 2 x Single-Port, Dual-Polarity, Single-Band Antennas, 5 GHz : 6 dBi Each
  • WiFi Standards : 802.11 a/b/g/n/ac/ac-wave2
  • Wireless Security : WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) 802.11w/PMF
  • BSSID : Up to 8 per Radio
  • Mounting : 1-Gang Electrical Wall Box (Not Included)
  • Operating Temperature : -10 to 60° C (14 to 140° F)
  • Operating Humidity : 5 to 95% Noncondensing
  • Certifications : CE, FCC, IC

Advanced Traffic Management

  • VLAN : 802.1Q
  • Advanced QoS : Per-User Rate Limiting
  • Guest Traffic Isolation : Supported
  • WMM : Voice, Video, Best Effort, and Background
  • Concurrent Clients : 200+

Supported Data Rates (Mbps)

  • Standard : Data Rates
  • 802.11a : 6, 9, 12, 18, 24, 36, 48, 54 Mbps
  • 802.11n : 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)
  • 802.11ac : 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80)
  • 802.11b : 1, 2, 5.5, 11 Mbps
  • 802.11g : 6, 9, 12, 18, 24, 36, 48, 54 Mbps
