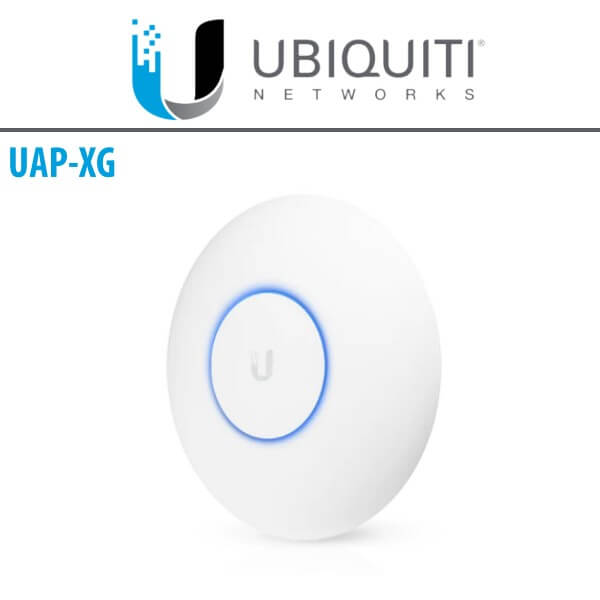

The Ubiquiti UAP-XG Wi-Fi 5 Access Point Nigeria is a powerful access point that is designed for easy deployment in high-density environments that require maximum wireless performance. It boasts of simultaneous, dual-band 4×4 MU-MIMO technology and convenient 802.3bt PoE compatibility for extended network use. Up to 3 client radios can deliver unparalleled Wi-Fi performance whereas a dedicated security radio provides persistent threat management.

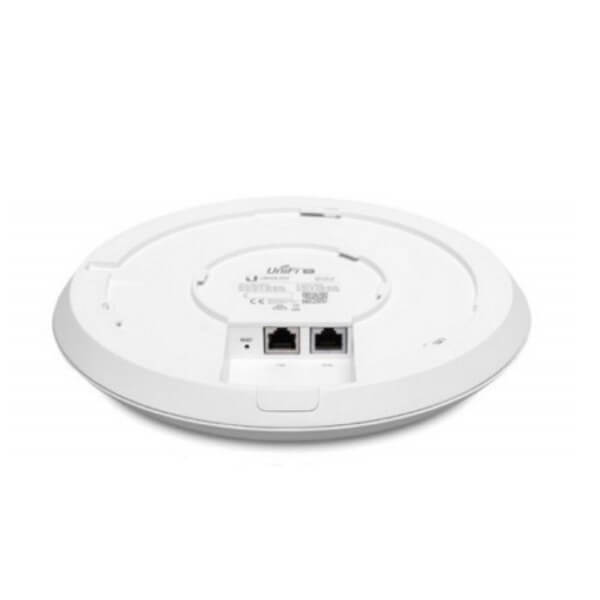

The UniFi UAP-XG Nigeria is capable of complex operations (guest control, filtering, and other resource-intensive tasks) that may slow down a lesser-equipped AP. The primary port carries both data and PoE, while the secondary Gigabit Ethernet port is for bridging and also supports PoE input. Its sleek design seamlessly integrates into any environment and is compatible with existing UAP-AC-PRO mounts.

Features

• WiFi speeds up to 4266 Mbps (800+1733+1733 Mbps)
• Simultaneous Tri-Band 4×4 Multi-User MIMO.
• Dedicated Security Radio with Persistent Threat Management.
• Real-Time Spectrum and airTime Utilisation Engine.
• Latest in Wi-Fi 802.11ac Wave 2 MU-MIMO technology combined with dedicated security and Bluetooth radios.
• Includes Hotspot functionality :
  • Built-in support for billing integration using major credit cards.
  • Built-in support for voucher-based authentication, including the ability to generate voucher codes.
  • Built-in Hotspot Manager for voucher creation, guest management, and payment refunds.
  • Full customisation and branding of Hotspot portal pages, including use of your own logo.
• The Ubiquiti UAP-XG Wi-Fi 5 Access Point Nigeria can be powered by any 802.3bt PoE compliant switch.
• Four antennas with 2 x 2.4 GHzDual-Port 6dBi Dual-Polarity Antennas and 2 x 5GHz Dual-Port 8dBi Dual-Polarity Antennas.
• Easy Deployment and Management
  • The Ubiquiti UAP-XG Nigeria is fully provisioned to our Cloud Controller prior to dispatch, so you simply connect it to your network via an Ethernet cable and away you go! Adding Access Points is simple! Just purchase any of the UniFi Cloud Controller Access Points to increase your Wi-Fi network, and they will be dispatched ready to join your network. With Ubiquiti UniFi’s user management, you can see exactly who is on the network and the location of connected devices on your Wi-Fi network. You can monitor user bandwidth and block users if required. UniFi is the revolutionary Wi-Fi system that combines enterprise performance, unlimited scalability, and a central management controller. These access points have a refined industrial design and can be easily installed using the mounting hardware included.
• Guest Portal/Hotspot Support
  • Easy customisation and advanced options for Guest Portals include authentication, Hotspot setup options, and the ability to link to an external portal server *. Take advantage of UniFi’s rate limiting for your Guest Portal and Hotspot package offerings. Apply different bandwidth rates (download/upload), limit total data usage, and limit duration of use.
• Scalable Enterprise Wi-Fi Management
  • The UniFi Ecosystem enables the system integrator to effectively and efficiently create wireless network designs of any size, from small to large, with the potential for unlimited scalability. The built-in, dedicated security and monitoring radio of the UniFi UAP-XG AP provides visibility into site performance, channel planning, and local interferers, allowing the integrator to properly evaluate performance and quickly respond to changing interference and security threat landscapes. Easily accessible through any standard web browser and the UniFi app (iOS or Android), the UniFi Controller software is a powerful software engine ideal for high density client deployments requiring low latency and high uptime performance.
• 802.11ac Technology
  • Initial 802.11ac Wave 1 SU-MIMO (Single-User, Multiple Input, Multiple Output) technology allows an earlier-generation AP, such as the UniFi AC Pro AP, to communicate with only one client at a time. 802.11ac Wave 2 MU-MIMO (Multi-User, Multiple Input, Multiple Output) technology allows a Wave 2 AP, such as the Ubiquiti UAP-XG Wi-Fi 5 Access Point Nigeria, to communicate with multiple clients at the same time – significantly increasing multi-user throughput and overall user experience.
• MU-MIMO
  • Assuming the same conditions, a Wave 2 radio provides up to 75% improvement beyond a Wave 1 radio. This improvement increases wireless performance and/or serves more clients at the same performance level. 4×4 Spatial Streams At any single time, a Wave 2 radio can communicate with the following MU-MIMO clients :
    • four 1×1 clients
    • two 2×2 clients
    • one 2×2 client and two 1×1 clients
    • one 3×3 client and one 1×1 client
• Real-World Performance
  • Combining twice the number of 5 GHz radios and four times the associations per radio, the UniFi UAP-XP delivers an order of magnitude more performance than a typical 802.11ac Wave 1 AP.
• Client Compatibility
  • For optimal performance, use MU-MIMO clients. SU-MIMO clients will also benefit and gain up to 10-20% greater performance when used with the UniFi UAP-XG.
• Application Scenarios
  • For very high-density environments, such as a large auditorium or concert hall containing numerous clients in a relatively small space, we recommend the UniFi UAP-XG. Wave 1 and Wave 2 APs offer 28 independent (non-overlapping) channels : three for the 2.4 GHz band and twenty-five for 5 GHz, including DFS channels. When you use the 2.4 GHz band in a high-density location, you encounter self-interference and channel saturation. When you use the 5 GHz band, you can deploy smaller cells (coverage areas), so you can support more clients in any cell that deploys more than one AP. With the advantages of MU-MIMO technology and 4×4 spatial streams, the Ubiquiti UAP-XG Wi-Fi 5 Access Point Nigeria can support more than triple the number of users per radio than a typical Wave 1 AP.

Security Features :

The UniFi UAP-XG Nigeria delivers unprecedented wireless awareness and security, including tools for real-time spectrum monitoring, airtime utilisation analytics, and intrusion detection/prevention.

• Dedicated Spectral Security Radio
  • Using a persistent spectral scan, the Ubiquiti UAP-XG Wi-Fi 5 Access Point Nigeria constantly monitors the RF environment to check for both potential malicious activity and the best channel for network performance. The dedicated security radio allows the UniFi UAP-XG to scan for security threats, such as malicious frames and rogue access points, while maintaining throughput for client devices. At the same time, UniFi, in conjunction with the UniFi UAP-XG, analyses the wireless spectrum and airtime utilization to automatically select the best channel to optimize performance across your installation.
• Threat Management
  • The UniFi UAP-XG’s dedicated security radio provides persistent threat management to act as a Wireless Intrusion Prevention System (WIPS) and Wireless Intrusion Detection System (WIDS). Such a dedicated radio affords frequency agility – meaning all available Wi-Fi channels are monitored constantly for threats – not just the channels the AP is using.
• Spectrum and Wi-Fi Packet Analysis
  • The airView tool offers real-time visibility into your RF spectrum. Because it uses the dedicated security radio, it analyzes all of your available RF channels without affecting performance or disrupting client activity. The airTime tool visualizes and analyses how the APs use channels in real time. The breakdown is by frame type, clients, neighboring APs, protocols, and interference.
