Ubiquiti UAP-AC-LR Nigeria

The innovative antenna design provides a long-range, symmetrical-link coverage area, and the antenna gain of the Ubiquiti UAP-AC-LR Nigeria performs better than one-way, high transmit power does for connecting distant clients.

Description

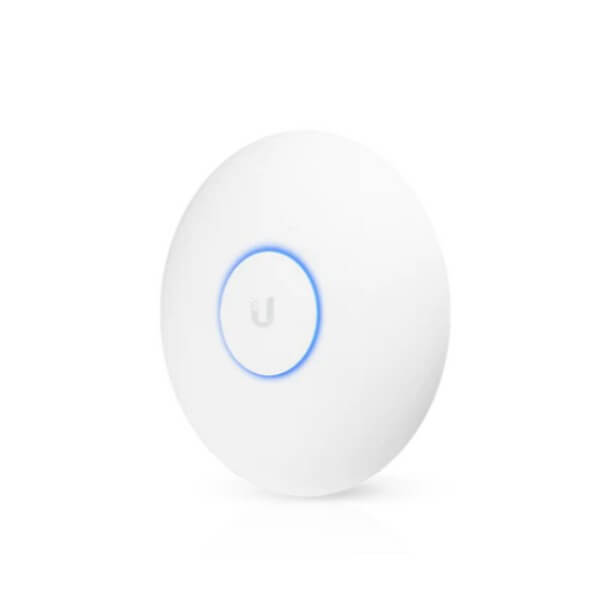

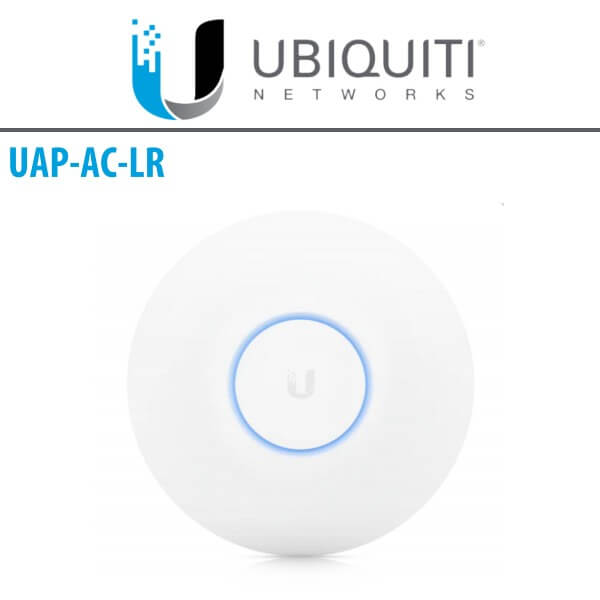

Ubiquiti UniFi UAP-AC-LR Access Point Nigeria

The Ubiquiti UAP-AC-LR Nigeria is ideal for long‑range deployments. This access point offers simultaneous, dual band operation with 3 x 3 MIMO in the 2.4 GHz band and 2 x 2 MIMO in the 5 GHz band. It has a range of up to 183 metres or 600ft and one Gigabit Ethernet port.

Ubiquiti UAP-AC-LR Nigeria supports 802.11ac and speeds of up to 867Mbps in the 5GHz radio band and up to 450Mbps in the 2.4GHz radio band.

The innovative antenna design provides a long range, symmetrical link coverage area. The antenna gain of this access point performs better than what one way, high transmit power does for connecting distant clients.

UAP-AC-LR Features:

Simultaneous Dual-Band Operation
5 GHz Band with Speeds of up to 867 Mbps
2.4 GHz Band with Speeds of up to 450 Mbps
Range up to 183 meters (600 feet)
Scalable Enterprise Wi-Fi Management
- The UniFi Controller v4 software is a powerful, enterprise wireless software engine ideal for high-density client deployments requiring low latency and high uptime performance. With its software-based capabilities, the UniFi virtual control plane allows for unlimited scalability under one centralised controller.
Innovative Antenna Design
- The innovative antenna design provides a long-range, symmetrical-link coverage area, and the antenna gain of the Ubiquiti UAP-AC-LR Nigeria performs better than one-way, high transmit power does for connecting distant clients.

Technical Specifications

General

Dimensions 175.7 x 175.7 x 43.2 mm (6.92 x 6.92 x 1.70″)
Weight 240 g (8.5 oz) With Mounting Kits 315 g (11.1 oz)
Networking Interface (1) 10/100/1000 Ethernet Port
Buttons Reset
Antennas (1) Dual-Band Antenna, Tri-Polarity, 3 dBi
Wi-Fi Standards 802.11 a/b/g/n/ac
Power Method Passive Power over Ethernet (24V), (Pairs 4, 5+; 7, 8 Return)
Power Supply 24V, 0.5A Gigabit PoE Adapter*
Maximum Power Consumption 6.5W
Maximum TX Power 2.4 GHz 22 dBm 5 GHz 24 dBm
BSSID Up to Four per Radio
Power Save Supported
Wireless Security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
Certifications CE, FCC, IC
Mounting Wall/Ceiling (Kits Included)
Operating Temperature -10 to 70° C (14 to 158° F)
Operating Humidity 5 to 95% Noncondensing
* Only the single-pack of the UAP-AC-LR includes a PoE adapter.
