Description

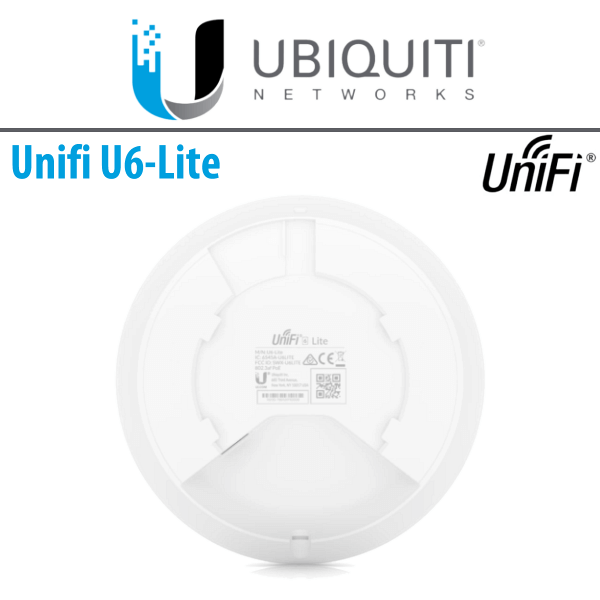

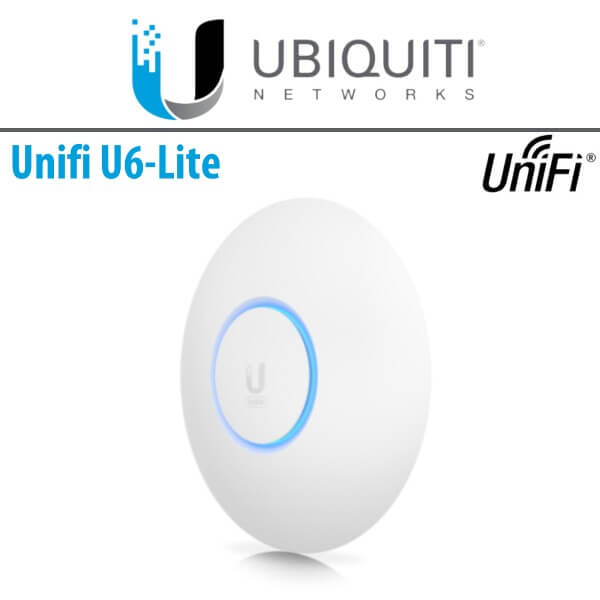

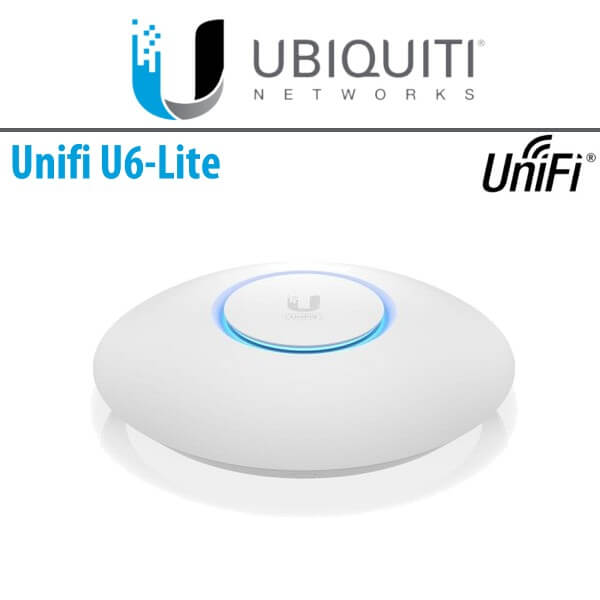

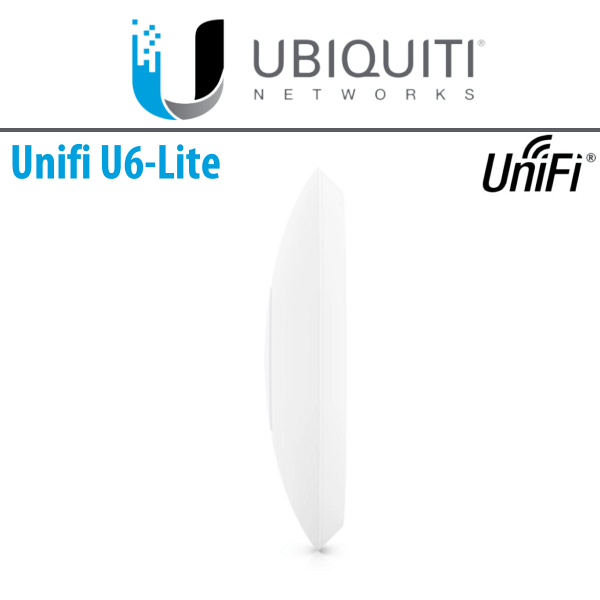

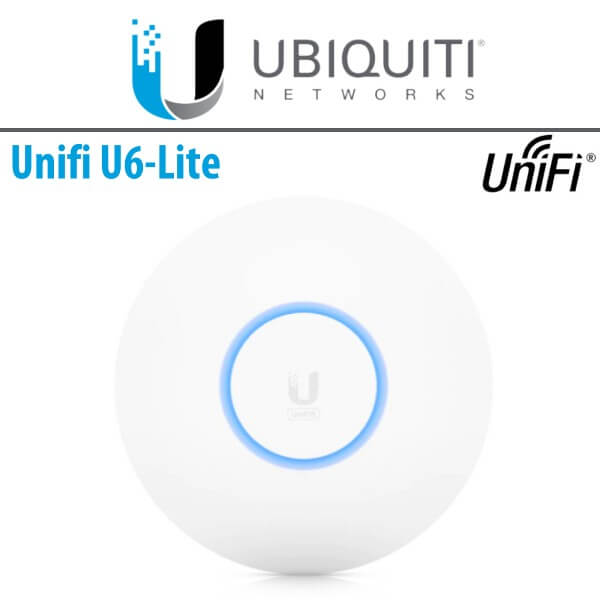

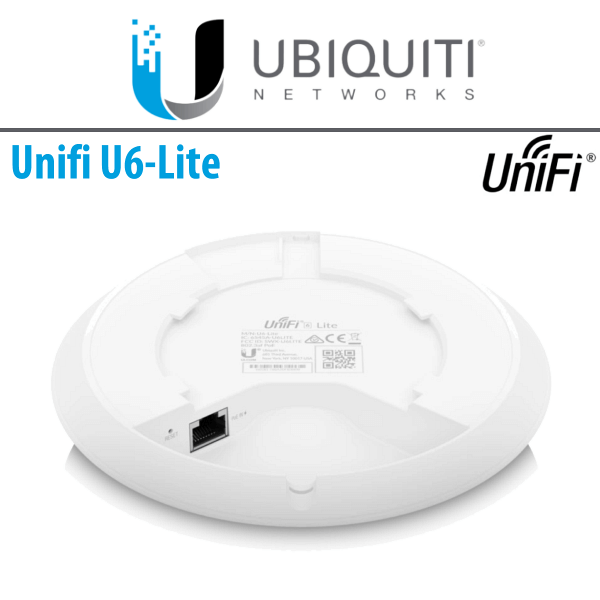

Ubiquiti U6Lite Access Point Nigeria

The Ubiquiti UniFi -U6Lite Nigeria is a 2×2 Wi-Fi 6 access point that delivers up to 1.5 Gbps aggregate radio rate with 5 GHz (MU-MIMO and OFDMA) and 2.4 GHz (MIMO) radios. Mount Ubiquiti UniFi -U6Lite Nigeria horizontally in the ceiling to cover a high-density environment, or mount it vertically on the wall to extend its range. The Ubiquiti UniFi -U6Lite Nigeria has a compact and nano-sized design, so it can use nanoHD covers and mounting accessories.

Features :

• • 2×2 high-efficiency Wi-Fi 6
  • 5 GHz band 2×2 MU-MIMO and OFDMA with radio rate of 1.2 Gbps
  • 2.4 GHz band 2×2 MIMO with radio rate of 300 Mbps
  • Gigabit Ethernet, powered with 802.3af PoE (PoE injector not included)
  • Compatible with UAP-nanoHD covers and recessed mounting bracket
• Less interference with OFDMA
  • With OFDMA, Wi-Fi 6 access points not only deliver higher-volume data packets, but tactically parse and deliver data to multiple devices simultaneously, drastically improving their upload and download speeds.
• Two-stream, high-efficiency Wi-Fi 6 technology
  • Wi-Fi 6 APs deliver an aggregate radio rate of up to 1.5 Gbps with 5 GHz (2×2 MU-MIMO and OFDMA) and 2.4 GHz 2×2 MIMO radios.
• Powerful, wider wireless coverage
  • The Ubiquiti UniFi -U6Lite Nigeria access point utilizes Wi-Fi 6 technology to provide strong and expansive wireless coverage to all enterprise networking environments.
• Simultaneously connect to more devices
  • Create and support over 300 distinct client connections.
• Easily set up and grow your network
  • The Ubiquiti UniFi -U6Lite Nigeria seamlessly integrates with the UniFi Network Application and simplifies network bridging.

Technical Specifications

Mechanical

• Dimensions : Ø160 x 32.65 mm (Ø6.3 x 1.3″)
• Weight :
  • Without Mount : 300 g (10.6 oz)
  • With Mount : 315 g (11.1 oz)
• Enclosure Characteristics : Polycarbonate 110 and ADC12 Die Casting
• Mounting Characteristics : Polycarbonate, SGCC Steel

Hardware

• Processor Specs : 880 MHz MIPS 1004 KEc
• Memory Information : 256 MB
• Management Interface : Ethernet In-Band
• Networking Interface : (1) 10/100/1000 Mbps Ethernet RJ45
• Buttons : Factory Reset
• LEDs : White/Blue
• Power Method : 802.3af PoE, Passive PoE (48V)
• Power Supply : 802.3af PoE; 48V, 0.32A PoE Adapter (Not Included)
• Supported Voltage Range : 44 to 57VDC
• Max. Power Consumption : 12W
• Max. TX Power
  • 2.4GHz : 23 dBm
  • 5GHz : 23 dBm
• MIMO :
  • 2.4GHz : 2 x 2-
  • 5GHz : 2 x 2
• Throughput Speeds
  • 2.4GHz : 300 Mbps
  • 5GHz : 1201 Mbps
• Antenna Gain
  • 2.4GHz : 2.8 dBi
  • 5GHz : 3 dBi
• Operating Temperature : -30 to 60° C (-22 to 140° F)
• Operating Humidity : 5 95% Noncondensing
• Certifications : CE, FCC, IC

Software

• WiFi Standards
  • 802.11a/b/g
  • WiFi 4/Wi-Fi 5/Wi-Fi 6
• Wireless Security : WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
• BSSID 8 per Radio
• VLAN : 802.1Q
• Advanced : QoS Per-User Rate Limiting
• Guest Trafc Isolation : Supported
• Concurrent Clients : 300+
