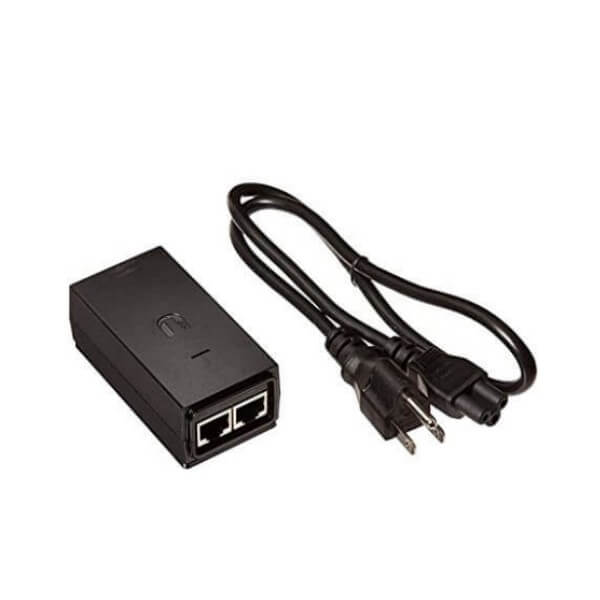

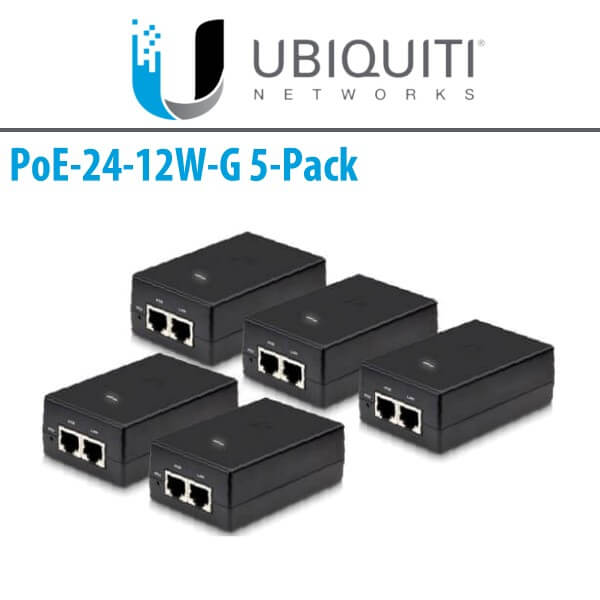

Ubiquiti PoE-24-12W-G 5Pack PoE Adapter Nigeria
The Ubiquiti PoE-24-12W-G 5Pack Nigeria is a PoE adapter designed to power various Ubiquiti devices. Ubiquiti Networks offers Power over Ethernet (PoE) adapters to power a variety of Ubiquiti products. The Ubiquiti PoE-24-12W-G 5Pack adapters are compatible with most Ubiquiti PoE devices, including : airFiber(R), airMAX(R), EdgeMAX(R), mFi(R),
UniFi(R) AP, UniFi Video / airVision(R).
Features
- Device Protection
- Ubiquiti PoE-24-12W-G 5Pack Nigeria are highly reliable, and when used with the Ubiquiti TOUGHCable(TM), they provide earth grounding and surge protection to help protect against electrostatic discharge (ESD) events.
- Convenient Wall-Mounting
- The 24 V, 0.5 A models, PoE-24-12W and PoE-24-12W-G, are wall-mountable using the optional wall-mount brackets.
- Seamless airGateway(TM) Compatibility
- The 15 V, 0.8 A and 24 V, 0.5 A models, PoE-15-12W, PoE-24-12W and POE-24-12W-G, work with the airGateway(TM) to bridge airMAX(R) connections to Wi-Fi at customer locations.
Specifications
- Gigabit LAN port : Yes
- Output voltage : 24 V DC at 0.5 A
- Input voltage : 90-260 V AC at 47-63 Hz
- Input current : 0.3 A at 120 V AC, 0.2 A at 230 V AC
- Inrush current : <15 A peak at 120 V AC, <30 A peak
- Efficiency : 70+ %
- Output ripple : 1% max.
- Switching frequency : 200 kHz
- Line regulation : +/-0.5%
- Load regulation : +/-1%
- Operating temperature : -10°C to +60°C
- Storage temperature : -20°C to +85°C
- Size (L x W x H) : 85 x 55 x 33 mm
- Weight : 4 oz
- AC connector : IEC-320 C6
- Data IN/PoE : RJ45 shielded socket
- 80% current indicator : Power LED will change color
- Surge protection : Common mode
- Clamping protection : 11 V data, 77.5 V power
- Max. surge discharge : 1200 A (8/20 uS) power
- Peak pulse current : 36 A (10/1000 uS data)
- Shunt capacitance : <5 pF data
- Response time : <1 nS
- Compliance : UL, EN55022 (CISPR22) class B, meets CE
- NO remote reset button
