Ubiquiti PBE-5AC-500 Wireless Bridge Nigeria

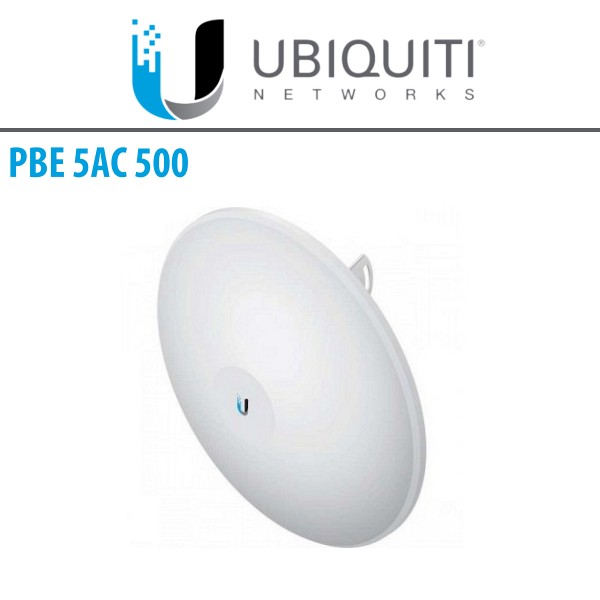

The Ubiquiti PBE-5AC-500 Nigeria is a high-performance airMAX ac Bridge Incorporating a dish reflector design with proprietary airMAX ac technology, the PowerBeam ac is ideal for CPE deployments requiring maximum performance.

The Ubiquiti PBE-5AC-500 Nigeria comes with a compact form factor which delivers the highest gain for its size. Its excellent beam directivity provides the best performance in high-noise environments.

Key Features

802.11ac Wireless AC : Built on the 5GHz ac standards for improved performance in wireless speeds up to 450mbps.

Plug and Play Installation : The Ubiquiti PBE 5AC-500 Nigeria requires no tools for assembly; only a single wrench is required for pole-mounting.

Incredible Antenna Beam Performance : The form factor of the Ubiquiti PBE-5AC-500 Nigeria features the highest gain for its size. The PowerBeams excellent beam directivity provides the best performance in high-noise environments.

Advanced Software Technology : Ubiquiti airMAX technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments.

TDMA airMAX protocol : enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.

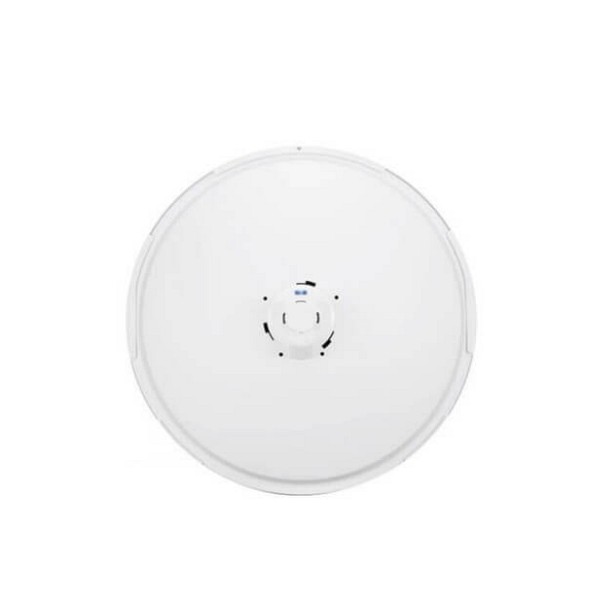

Protective Radome : Includes a protective radome to shield the radio from the elements.

Dish Reflector Design : The Ubiquiti PBE-5AC-500 Nigeria features the “Dish Reflector Design”. This leverages Ubiquiti’s “InnerFeed” technology which integrates the radio into the feedhorn of the antenna, so there is no need for any cable, improving performance by eliminating cable losses. By providing increased performance with its faster processor and innovative mechanical design at a low cost, the Ubiquiti PBE-5AC-500 PowerBeam ac is extremely versatile and cost-effective to deploy.

Software airOS : airOS is an intuitive, versatile, highly developed Ubiquiti firmware technology. It is exceptionally intuitive and was designed to require no training to operate. Behind the user interface is a powerful firmware architecture, which enables high-performance, outdoor multi-point networking.

Utilise airMAX Technology : Unlike standard Wi-Fi protocol, Ubiquiti’s Time Division Multiple Access (TDMA) airMAX protocol allows each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller. This ‘time slot’ method eliminates hidden node collisions and maximises airtime efficiency. It provides significant performance improvements in latency, throughput, and scalability compared to all other outdoor systems in its class.

Specifications

Processor Specs : Atheros MIPS 74Kc, 560 MHz
Memory : 128 MB DDR2, 8 MB Flash
Networking Interface : 10/100/1000 Ethernet Port
Wireless Approvals : FCC, IC, CE
RoHS Compliance : Yes
Dimensions
- Radome Excluded : 520 x 520 x 308 mm (20.47 x 20.47 x 12.13 in)
- Radome Included : 525 x 525 x 315 mm (20.67 x 20.67 x 12.40 in)
Weight
- Radome Excluded : 2.35 kg (5.18 lb)
- Radome Included : 3.15 kg (6.95 lb)
Power Supply : 24V, 0.5A Gigabit PoE
Power Method : Passive PoE (Pairs 4, 5+; 7, 8 Return)
Max. Power Consumption 8.5W
Gain : 27 dBi
Operating Frequency
- Worldwide : 5150 – 5875 MHz
- USA : 5725 – 5850 MHz
Wind Loading : 419.6 N @ 200 km/h (94.33 lbf @ 125 mph)
Wind Survivability : 200 km/h (125 mph)
LEDs Power : (1) LAN, (4) WLAN Signal Strength LEDs
Software : Adjustable to Correspond to Custom RSSI Levels
Channel Sizes 5/8/10/20/30/40 MHz
Polarization : Dual Linear
Enclosure : Outdoor UV Stabilized Plastic
Mounting : Pole-Mount Kit Included
ESD/EMP Protection
- Air : ± 24 kV,
- Contact : ± 24 kV
Operating Temperature : -40 to 70° C (-40 to 158° F)
Operating Humidity : 5 to 95% Non-Condensing
Salt Fog Test : IEC 68-2-11 (ASTM B117), Equivalent : MIL-STD-810 G Method 509.5
Vibration Test : IEC 68-2-6
Temperature Shock Test : IEC 68-2-14
UV Test : IEC 68-2-5 at 40° C (104° F), Equivalent : ETS 300 019-1-4
Wind-Driven Rain Test : ETS 300 019-1-4, Equivalent : MIL-STD-810 G Method 506.5
