Ubiquiti LocoM2 AirMax Nigeria

Rating

Ubiquiti LocoM2 AirMax Nigeria

Featuring a panel antenna and dual-polarity performance, the Ubiquiti LocoM2 Outdoor NanoStation Nigeria is ideal for Point-to-MultiPoint (PtMP) applications requiring high-performance CPE devices with a sleek form factor.

Description

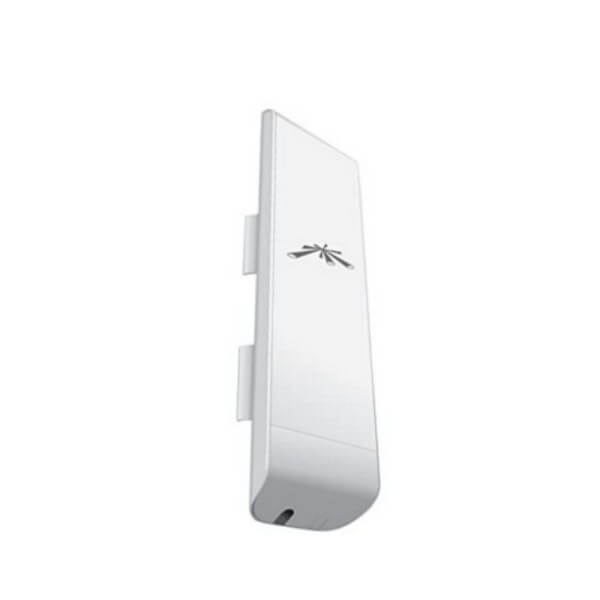

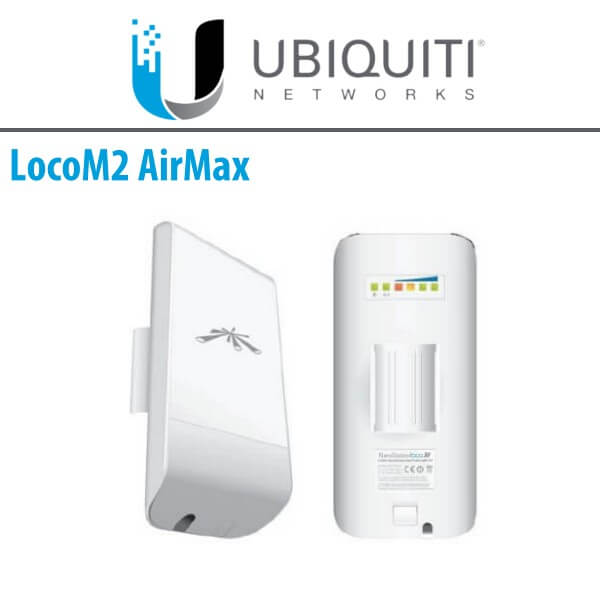

Ubiquiti LocoM2 AirMax Outdoor NanoStation Nigeria

The Ubiquiti LocoM2 Nigeria is an affordable and highly reliable solution that delivers excellent performance to its users. It boasts of a long transmission range of up to 10km, 25+Mb/s of throughput performance, as well as an intuitive AirOS by Ubiquiti. It is also equipped with a broadband wireless CPE technology which delivers a fast performance.

Features

  • Compact CPE Design
    • Featuring a panel antenna and dual-polarity performance, the Ubiquiti LocoM2 Outdoor NanoStation Nigeria is ideal for Point-to-MultiPoint (PtMP) applications requiring high-performance CPE devices with a sleek form factor.
  • Plug and Play Installation
    • The Ubiquiti LocoM2 NanoStation requires no tools for assembly; only a single wrench is required for pole-mounting.
  • Dual Ethernet Connectivity
    • With software-enabled PoE output, the secondary Ethernet port can power an external device, such as a PoE security camera, for seamless IP video integration.
  • Versatile Application Use
    • The Ubiquiti LocoM2 Outdoor NanoStation Nigeria can be deployed for Point-to-Point (PtP) bridging, wireless connectivity to a video surveillance system, or use as an airMAX CPE.
  • Powerful airOS Features
    • Ubiquiti’s versatile airOS firmware technology enables high-performance, outdoor multi-point networking. airOS provides features such as wireless settings, bridge or routing configuration and system management services.
  • Advanced Software Technology
    • Ubiquiti’s airMAX technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.
  •  Window/Wall-Mounting Kit
    • Use the NanoStation Mount to quickly mount the Ubiquiti LocoM2 Outdoor NanoStation Nigeria on a window or wall. 180° vertical or horizontal adjustment allows for custom positioning.
  • Wall/Pole Mounting Kit
    • The Universal Arm Bracket is designed for convenient wall or pole mounting of the Ubiquiti LocoM2 NanoStation Nigeria. 90° tilt adjustment allows for easy positioning.

Specifications

Wireless
Wireless Frequency Bands 2.4 GHz
Sensitivity -72 to -95 dBm
Antenna Gain 8 dBi
Transmit Power 15 to 20 dBm
Interface
Ports 1 x 10/100 Mb/s Ethernet (RJ45)
Throughput 150 Mb/s Total
Hardware
RAM 16 MB
Storage Capacity 4 MB
Processor 180 MHz MIPS 4KC
Electrical
DC Input Power VDC at 0.5 A
Environmental
Operating Temperature -4 to 158°F / -20 to 70°C
Operating Humidity 5 to 95%
General
Certifications RoHS, as per Manufacturer
Dimensions 6.4 x 3.1 x 1.2″ / 16.3 x 8 x 3.1 cm
Weight 0.4 lb / 0.2 kg
Packaging Info
Package Weight 1.07 lb
Box Dimensions (LxWxH) 8.55 x 3.8 x 3.2″
