Ubiquiti GBE-LR AirMAX Nigeria

Rating

Ubiquiti GBE-LR AirMAX Nigeria

The 60 GHz radio of the Ubiquiti GBE-LR AirMAX Nigeria supports the full bandwidth use of 2.16 GHz. An integrated dedicated management radio allows easy setup with mobile devices via Wi-Fi using the UNMS software.

Category:

Description

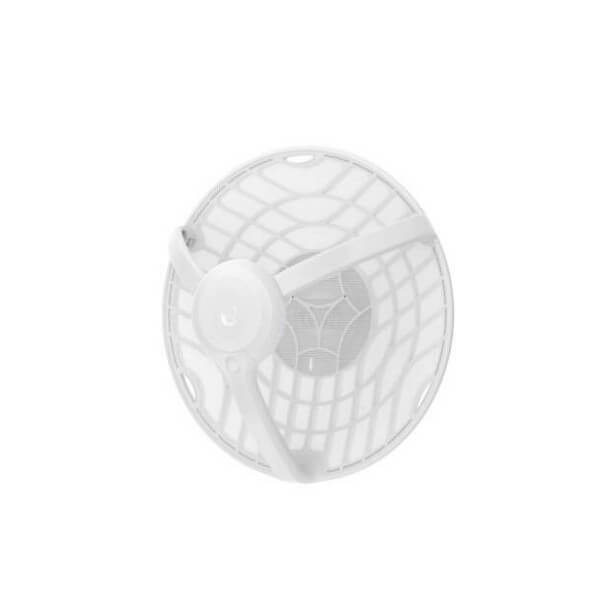

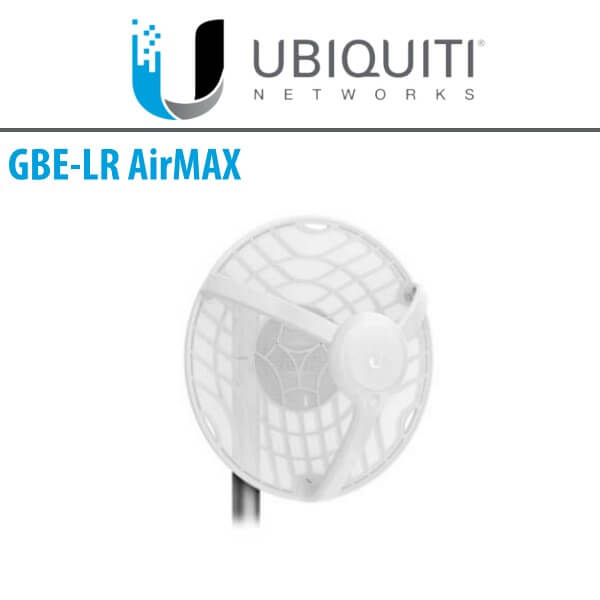

Ubiquiti GBE-LR AirMAX Outdoor Radio Nigeria

Featuring a high-gain dish antenna, the Ubiquiti GBE-LR Nigeria is an AirMAX  60 GHz radio designed for low-interference and high-throughput connectivity of up to 1+ Gbps in long-range deployments of up to 2 km. The Ubiquiti GBE-LR AirMAX   Nigeria includes a 5 GHz radio for 60GHz link failover. Easy setup can be done via UISP app. For the 60 GHz link, the Ubiquiti GBE-LR AirMAX   Nigeria supports full bandwidth use of 2.16 GHz. The dedicated management radio allows easy setup via Wi-Fi.

The 60 GHz radio of the Ubiquiti GBE-LR AirMAX  Nigeria supports the full bandwidth use of 2.16 GHz. An integrated dedicated management radio allows easy setup with mobile devices via Wi-Fi using the UNMS software.

Features :

  • 60 GHz radio with 5 GHz radio backup
  • Low-interference 60 GHz spectrum
  • Up to 1+ Gbps with low latency
  • 2.4 GHz management radio
  • Full bandwidth support : 2.16 GHz
  • Enclosure : Aluminium, UV-Resistant Polycarbonate
  • Networking Interface : 10/100/1000 Ethernet Port, Wi-Fi for Management
  • Mounting :
  • Pole-Mount Kit (Kit Included)
  • Wall-Mount (Not Included)

Product Specifications

  • Antenna Gain
  • 5 GHz : 11 dBi
  • 60 GHz : 38 dBi
  • Networking Interface : (1) 10/100/1000 Mbps Ethernet Port
  • Max. Power Consumption : 11W
  • Power Method : Passive PoE (Pairs 4, 5+; 7, 8- )
  • Power Supply : 24VDC, 0.5A Gigabit PoE (Included)
  • Voltage Range : +22 to +26VDC
  • LEDs : Power/ Ethernet/ 5G/ 60G
  • Wind Loading : 56 N @ 200 Km/H (12.6 lbf @ 125 MPH)
  • Wind Survivability : 200 Km/H (125 MPH)
  • Mounting : Pole-Mount (Included)
  • ESD/ EMP Protection : ± 24kV Contact/ Air
  • Operating Temperature : -40 to 60°C (-40 to 140°F)
  • Operating Humidity : 5 to 95% Non-condensing
  • Certifications : CE, FCC, IC

Radio

  • Max. Conducted TX Power :
  • 5/ 60 GHz Combined : 25 dBm
  • Channel Bandwidth :
  • 60 GHz : 2160 MHz
  • 5 GHz : 20/ 40/ 80 MHz
  • Management Radio (MHz) :
  • US/CA : 2412-2462

Product Includes

  • (1) Dish
  • (1) Main Arm
  • (2) Support Arms
  • (1) Mounting Bracket
  • (1) Screw
  • (1) U-Clamp
  • (2) Flat Washers
  • (2) Lock Washers
  • (2) Flange Nuts
  • (1) Gigabit PoE (24V, 0.5A) with Mounting Bracket
  • (1) Power Cord
