Ubiquiti AM-5AC22-45 Nigeria

The Ubiquiti AM-5AC22-45 Nigeria is highly resistant to noise interference in co-location deployments and features an innovative deflector design, together with the reduced sidelobes and backlobes, reject interference from other transmitters in the area – potentially on the same tower.

Category:

Description

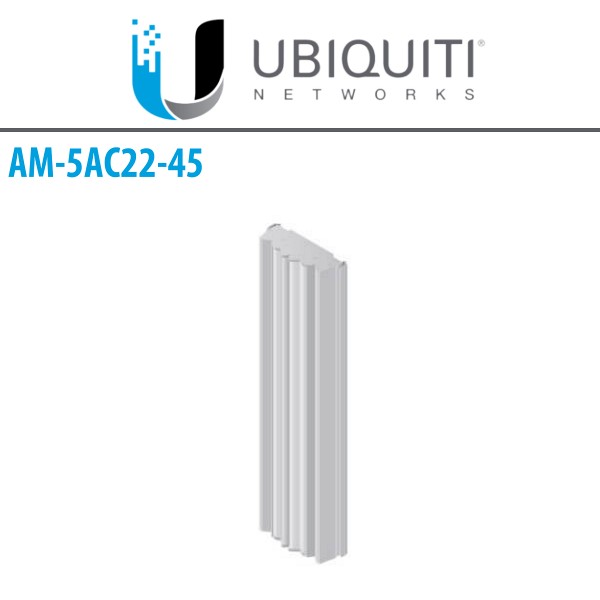

Ubiquiti AM-5AC22-45 Sector Antenna Nigeria

The Ubiquiti AM-5AC22-45 Nigeria is a Ubiquiti Networks airMAX sector antenna designed to be used with Rocket 5AC radios. It operates on 5GHz frequency with 22dBi and 45deg; beamwidth. The airMAX 802.11ac Sector Antenna Nigeria is highly resistant to noise interference in co-location deployments and features an innovative deflector design, together with the reduced sidelobes and backlobes, reject interference from other transmitters in the area – potentially on the same tower.

With improved Signal-to-Noise Ratio (S/N or SNR), the airMAX 802.11ac Sector Antenna Nigeria allows a higher-order modulation to be used, for example, 256QAM rather than 16QAM. This increases the number of bits per second for a fixed bandwidth (or data rate).

Features

  • Breakthrough Design and Performance
    The airMAX® ac Sector Antennas feature carrier-class construction with an innovative deflector design and 2×2, dual-polarity performance for airMAX networks.
  • Superior Noise Immunity
    Featuring reduced sidelobes and backlobes, the airMAX® ac Sector Antennas are engineered to reject noise interference in co‑location deployments.
  • Market-Leading Beam Performance
    Compare the diagram of the airMAX® ac Sector Antenna, model AM-5AC22-45, to the diagram of a standard sector antenna, and note the superior noise immunity and beam performance of the AM-5AC22-45.
  • Industrial-Strength Construction
    airMAX® ac Antennas are designed with robust mechanical design for outdoor application use.
  • Plug and Play Integration

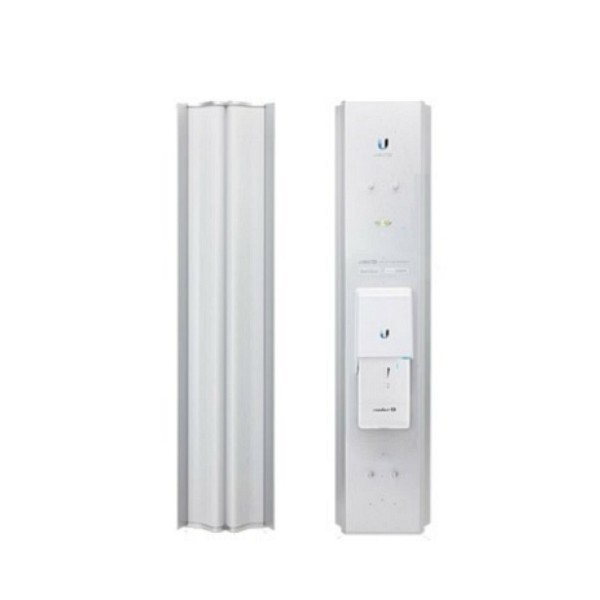

    Every airMAX® ac Antenna has a built-in Rocket™ mount, so no tools are needed to install the Rocket BaseStation.

Technical Specifications

Dimensions

  • 750 x 215 x 94 mm
    (29.53 x 8.47x 3.70″)

Weight

  • 6 kg
    (13.23 lbs)

Frequency Range

  • 5.10 – 5.85 GHz

Gain

  • Gain 22 dBi

HPOL Beamwidth

  • 45° (6 dBi)

VPOL Beamwidth

  • 45° (6 dBi)

Electrical Beamwidth

  • 4°

Electrical Downtilt

  • 2°

Max. VSWR

  • 1.5 : 1

Wind Survivability

  • 200 km/h (125 mph)

Wind Loading

  • 347 N @ 200 km/h
    (78 lbf @ 125 mph)

Polarisation

  • Dual-Linear

Cross-Polarisation Isolation

  • 30 dB Min.

ETSI Specification

  • EN 302 326 DN2

Mounting

  • Universal Pole Mount, Rocket Bracket, and Weatherproof RF Jumpers Included
