Ubiquiti AM-5AC21-60 Nigeria

The Ubiquiti AM-5AC21-60 Nigeria is highly resistant to noise interference in co-location deployments. The innovative deflector design, together with the reduced sidelobes and backlobes, reject interference from other transmitters in the area – potentially on the same tower.

Description

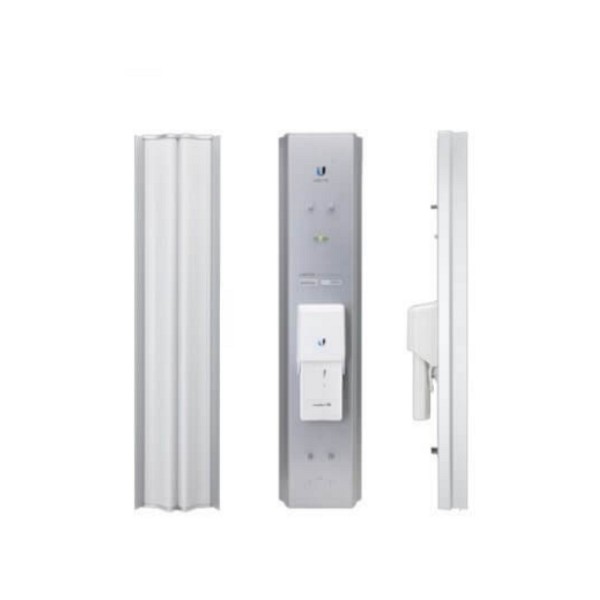

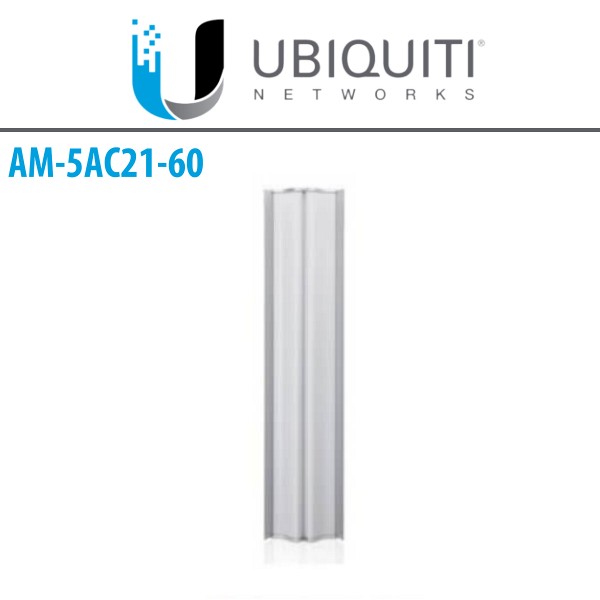

Ubiquiti AM-5AC21-60 AirMAX Sector Antenna Nigeria

The Ubiquiti AM-5AC21-60 Nigeria is a sector antenna from Ubiquiti which supports their latest Radios using 802.11 AC (Rocket M5 AC PTMP – sold separately) to deliver high throughput to multiple clients.

The Ubiquiti AM-5AC21-60 Nigeria is highly resistant to noise interference in co-location deployments. The innovative deflector design, together with the reduced sidelobes and backlobes, reject interference from other transmitters in the area – potentially on the same tower.

Features

  • Breakthrough Performance – The Ubiquiti AM-5AC21-60 Nigeria is highly resistant to noise interference in co-location deployments. The innovative deflector design, together with the reduced sidelobes and backlobes, reject interference from other transmitters in the area – potentially on the same tower. Improved Signal-to-Noise Ratio (S/N or SNR) allows a higher-order modulation to be used, for example, 256QAM rather than 16QAM. This increases the number of bits per second for a fixed bandwidth (or data rate). Due to innovative design, the airMAX ac Sector Antennas provide higher gain and superior beam performance for high-capacity, multipoint networks.
  • Innovative Deflector Design – The Ubiquiti AM-5AC21-60 Nigeria is designed to reject interference and provide enhanced scalability, higher gain, and superior beam performance in PtMP networks.
  • Superior Noise Immunity
    Featuring reduced sidelobes and backlobes, the AM-5AC21-60 Nigeria is engineered to reject noise interference in co‑location deployments.
  • Industrial-Strength Construction
    Ubiquiti AM-5AC21-60 Nigeria Antennas are designed with robust mechanical design for outdoor application use.
  • Plug and Play Integration
    Every Ubiquiti AM-5AC21-60 Nigeria Antenna has a built-in Rocket™ mount, so no tools are needed to install the Rocket Base Station.

Technical Specifications

Dimensions

  • 750 x 173 x 78 mm
    (29.53 x 6.81 x 3.07″)

Weight

  • 4.8 kg
    (10.58 lbs)

Frequency Range

  • 5.10 – 5.85 GHz

Gain

  • Gain 21 dBi

HPOL Beamwidth

  • 60° (6 dBi)

VPOL Beamwidth

  • 60° (6 dBi)

Electrical Beamwidth

Electrical Downtilt

Max. VSWR

  • 1.5:1

Wind Survivability

  • 200 km/h (125 mph)

Wind Loading

  • 391 N @ 200 km/h
  • (88 lbf @ 125 mph)

Polarisation

  • Dual-Linear

Cross-Polarisation Isolation

  • 25 dB Min.

ETSI Specification

  • EN 302 326 DN2

Mounting

  • Universal Pole Mount, Rocket Bracket, and Weatherproof RF Jumpers Included
