Ubiquiti AF5 Nigeria

The Ubiquiti AF5 Nigeria supports FDD (Frequency Division Duplexing) in full-duplex mode for < 1 ms latency, resulting in increased efficiency for carrier-class network backhauls.

Description

Ubiquiti AF5 Wi-Fi Bridge Nigeria

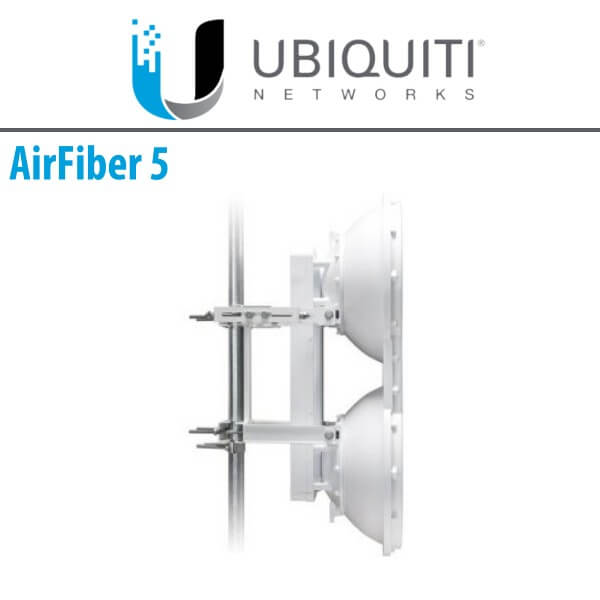

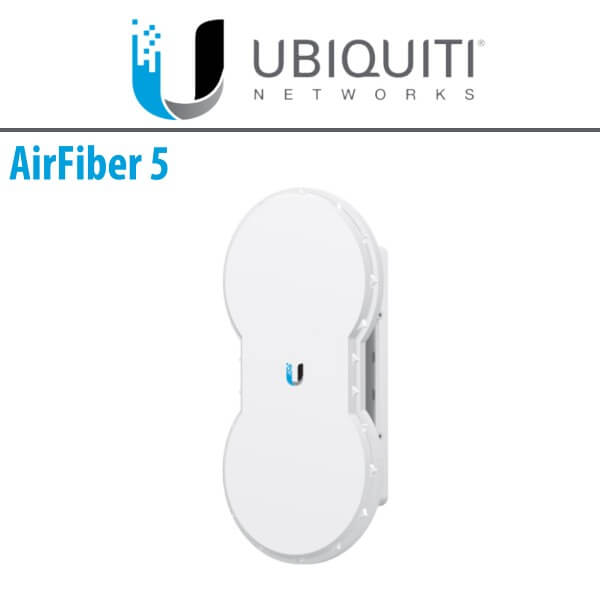

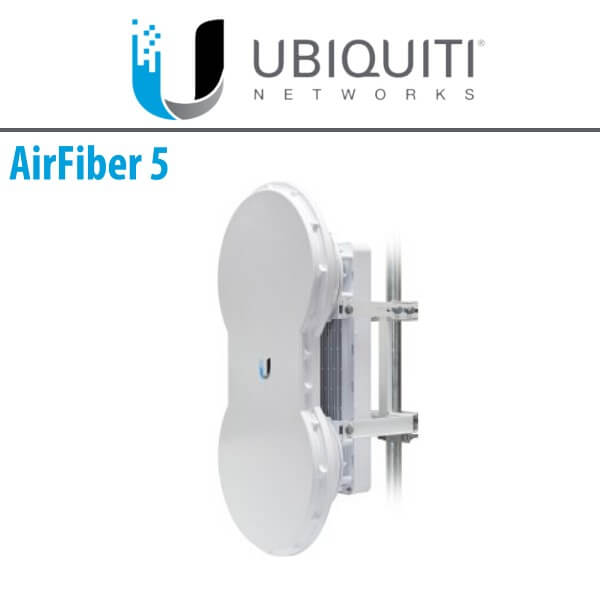

The Ubiquiti AF5 Nigeria is a modern Point-to-Point wireless platform that features a compact, highly-efficient form factor for easy deployment. It delivers amazing wireless gigabit+ performance, low latency, and long range. Ubiquiti AF5 Nigeria ushers in a new era in price-disruptive wireless technology ideal for carrier backhaul, building-to-building enterprise use, or public safety applications. This model features the popular mid-band frequencies, which are freely used in many parts of the world.

Features

  • Innovative Antenna Design
    Ubiquiti AF5 Nigeria features high-isolation, dual-antenna design which is ideal for robust performance in the harshest RF noise environments.
  • Revolutionary Performance
    Surpassing conventional wired backhauls, the Ubiquiti AF5 Nigeria delivers real throughput of up to 1.2+ Gbps.
  • Long-Range Links: 100+ km
    Designed to be a high-performance backhaul, the Ubiquiti AF5 Nigeria performs at a range of up to 100+ km.
  • Low-Latency Carrier Backhaul
    The Ubiquiti AF5 Nigeria supports FDD (Frequency Division Duplexing) in full-duplex mode for < 1 ms latency, resulting in increased efficiency for carrier-class network backhauls.
  • 5 GHz Unlicensed Band
    The Ubiquiti AF5 operates in worldwide, license-free, 5 GHz frequencies. Users can deploy AF5 almost anywhere they choose (subject to local country regulations).

Technical Details

Operating Frequency 5725 – 5850 MHz (FCC 15.247, IC RSS 21) 5725 – 5875 MHz (ETSI EN 302 502) 5725 – 6200 MHz (Other Regions)
Dimensions 938.4 x 468.4 x 281.4 mm
Weight 16 kg (Mount included)
Maximum Power Consumption 40 W
Power Supply 50V, 1.2A PoE GigE Adapter (Included)
Power Method Passive Power over Ethernet (42-58VDC)
Certifications CE, FCC, IC
Mounting Pole Mount Kit (Included)
Wind Loading 194 lbf @ 125 mph
Wind Survivability 125 mph
Operating Temperature -40 to 55°C (-40 to 131° F)
LEDs
  • (12) Status LEDs:
  • Data Port Link/Activity
  • Data Port Speed
  • Management Port Link/Activity
  • Management Port Speed
  • GPS Synchronization
  • Master/Slave
  • Link Status
  • Modulation Mode 0.25x to 4x, 6x, 8x, Overload
  • Remote and Local Displays (Calibrated Signal Strength)
Interface
Data Port (1) 10/100/1000 Ethernet Port
Configuration Port (1) 10/100 Ethernet Port
Auxiliary Port (1) RJ-12, Alignment Tone Port
System
Maximum Throughput 1.0+ Gbps
Maximum Range 100+ km (Dependent on Regulatory Region)
Packets per Second 1+ Million
Encryption 128-Bit AES
Forward Error Correction 164/205
Cyclic Prefix 1/16 Fixed
Uplink/Downlink Ratio 50% Fixed
Radio Frame Synchronization GPS
Dynamic Frequency Selection CE, (FCC/IC Not Applicable)
Radio Frequency
GPS GPS Clock Synchronization
EIRP ~33 dBm (FCC/IC), ~20 dBm (CE)
Frequency Accuracy ±2.5 ppm without GPS Synchronization
±0.2 ppm with GPS Synchronization
Channel Bandwidth 100 MHz
Modulation
  • 64QAM MIMO
  • 16QAM MIMO
  • QPSK MIMO
  • QPSK SISO
  • ¼x QPSK SISO
Integrated Split Antenna
TX Gain 23 dBi
RX Gain 23 dBi
Beamwidth
Front-to-Back Ratio 70 dB
Polarity Dual-Slant Polarization
Cross-Polarity Isolation > 28 dB
