Ubiquiti AF11 Nigeria

Ubiquiti AF11 Nigeria is an outdoor radio purpose-built for outdoor PtP bridging and carrier-class network back-hauls using the licensed 11GHz radio band. The AF-11 breaks free from the congested 5 GHz band to help meet the growing need for broadband capacity.

Description

Ubiquiti AF11 Wi-Fi Bridge Nigeria

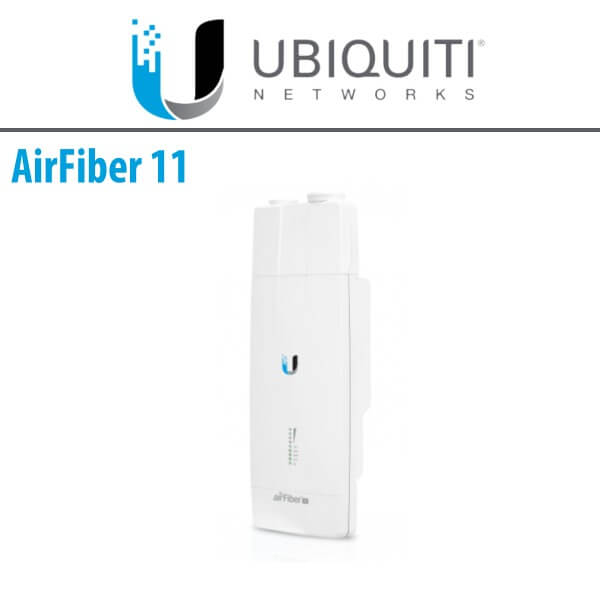

Ubiquiti AF11 Nigeria is the first modular airFiber radio system purpose-built for the 11 GHz licensed frequency market that breaks free from the congested 5 GHz band. Housed in a compact, highly efficient form factor, airFiber 11 delivers amazing wireless gigabit+ performance, low latency, and long range, making it ideal for carrier backhaul, building-to-building enterprise use, or public safety applications.

Ubiquiti AF11 Nigeria is an outdoor radio purpose-built for outdoor PtP bridging and carrier-class network back-hauls using the licensed 11GHz radio band. The AF-11 breaks free from the congested 5 GHz band to help meet the growing need for broadband capacity.

Features

  • True Full-Duplex Design : Offers a true FDD solution that fully satisfies all licensing requirements for the 11GHz band.
  • Ultra-Low Latency : Overall customer experience and system capacity is enhanced with FDD performance.
  • Enhanced Robustness : Ubiquiti AF11 Nigeria features a unique, built-in, rain-fade mitigation strategy for increased link robustness.
  • Extended Range : The RF power amplifiers feature a unique bias scheme, allowing high-order constellations at longer ranges.
  • Optimized Channels : Can use SISO or bonded MIMO channels depending on your licensing requirements.
  • Reconfigurable Duplexers : Each radio can be configured to support any allowable frequency by simply changing the duplexers for high-band or low-band use.
  • Highest Performance Value : Ubiquiti AF11 Nigeria supports high-order constellations – up to 1024QAM – allowing it to deliver the greatest spectral efficiency in its class.
  • Advanced Engineering : Custom silicon and radio architecture are designed for long-distance, outdoor wireless applications providing superior performance.
  • Power Source Options : Ubiquiti AF11 Nigeria has built-in support for PoE or DC power gives you the flexibility to power the AF-11 separately from Ethernet traffic.
  • Versatile Ruggedized N-Type Connectors : Specially designed silicon boots provide a weatherproof barrier against dust and moisture.

Technical Specs

Dimensions 327 x 112 x 86 mm
(12.87 x 4.41 x 3.39″)
Weight 2.26 kg (5.0 lb)
RF Connectors (4) SMA Weatherproof, Two per Chain:
TX 0, RX 0 (Chain 0) and TX 1, RX 1 (Chain 1) (2) N-Type Waterproof, One per Duplexer
Power Supply 50V, 1.2A PoE Gigabit Adapter (Included)
Power Method Passive Power over Ethernet, DC Power Block)
Power Supply UniFi PoE Switch
Supported Voltage Range 38-56VDC
Certifications FCC Part 101, ETSI EN 302 217
Mounting AF-11G35 Mount Compatible
Operating Temperature -40 to 55° C (-40 to 131° F)

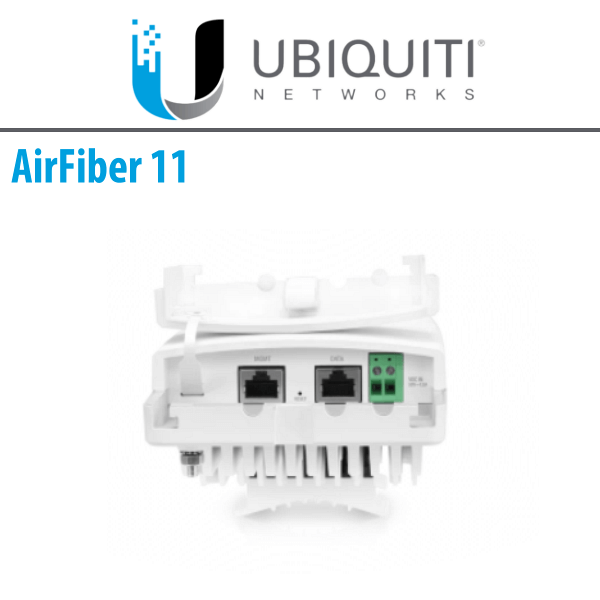

Networking Interface
Data
Management
  • (1) 10/100/1000 Ethernet Port
  • (1) 10/100 Ethernet Port
System
Processor INVICTUS 2 IC
Maximum Throughput 1.2+ Gbps
Encryption 128-bit AES
OS airOS F
Wireless Modes SISO/MIMO
Operating Frequency 10.7-11.7 GHz
(Depends on Regulatory Region*)
Max. Conducted TX Power 30 dBm
(Depends on Regulatory Region*)
Frequency Accuracy ± 1 ppm
Channel Bandwidth 3.5/5/7/10/14/20/28/30/40/50/56 MHz
Selectable**
Programmable Uplink and Downlink Duty Cycles
AirFiber AF‑11G35
Dimensions 811 x 811 x 460 mm
(31.9 x 31.9 x 18.1″)
Weight
Mount Not Included
Mount Included
7.14 kg (15.74 lb)
11.85 kg (26.12 lb)
Frequency 10.3 to 11.7 GHz
Gain 35 dBi
HPOL Beamwidth 2.5°
VPOL Beamwidth 2.5°
Maximum VSWR 2:1
Wind Loading 1538 N @ 200 km/h
(346 lbf @ 125 mph)
Wind Survivability 200 km/h (125 mph)
Polarization
Default
After Rotating OMT
H/V
± 45°
Cross-Pol Isolation 35 dB
Mounting Pole Mount
Pattern Regulatory ETSI 302 217-4-2, Class 3
and FCC Cat B
