Tplink VIGI C300HP Nigeria

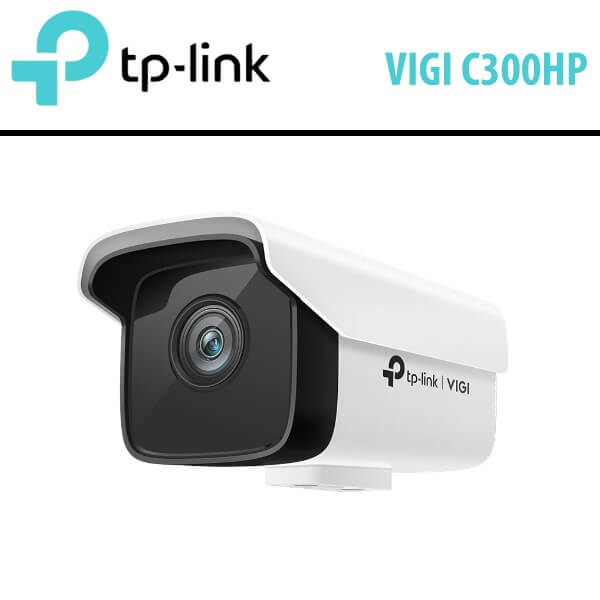

The Tplink VIGI C300HP Nigeria is a 3MP ultra-high definition video camera, offering more than enough pixels to pick up some of the more discrete details. This version features a 4mm lens, which is better suited to monitoring enclosed spaces where long distance is not a requirement.

Category:

Description

Tplink VIGI C300HP Video Camera Nigeria

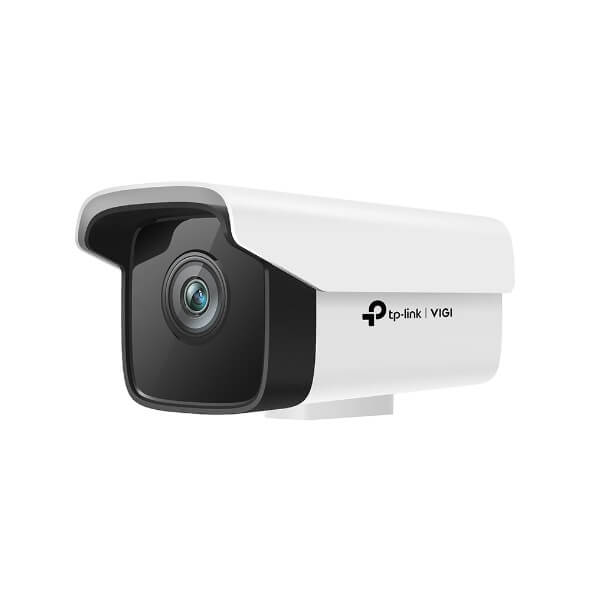

The Tplink VIGI C300HP Nigeria is a 3MP ultra-high definition video camera, offering more than enough pixels to pick up some of the more discrete details. This version features a 4mm lens, which is better suited to monitoring enclosed spaces where long distance is not a requirement. The Tplink VIGI C300HP Nigeria has Smart Detection, which includes motion detection, area intrusion, line-crossing, and video tampering. Users can receive notifications and check feeds when someone crosses a boundary, enters an area you’ve set, or obstructs the camera. Users can also manage security from their mobile phone with the VIGI app.

The Tplink VIGI C300HP Nigeria features Smart IR, which keeps objects from being under-rendered and gives superior footage when filming at night, along with WDR, which adjusts for lighting contrast to minimize shadowing effects and renders images true to life. VIGI C300HP offers H.265+ encoding, allowing your camera to transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality. Power can be provided by PoE or 12V DC.

Features

  • 3MP Ultra-High Definition: The Tplink VIGI C300HP Nigeria camera comes with 3MP–more than enough pixels to pick up some of the more discrete details.
  • 4/6mm Lens: Whether you need a wide angle lens to cover enclosed spaces or a higher millimeter lens for longer distances in open spaces, Tplink VIGI C300HP Nigeria comes with two different lens versions to better suit your security needs.
  • Smart Detection (motion detection, area intrusion, line-crossing, video tampering): Receive notifications and check feeds when someone crosses a boundary, enters an area you’ve set, or obstructs the camera.
  • Smart IR: Keeps objects from being under-rendered when far away or overexposed when close to camera at night.
  • WDR: Adjusts for lighting contrast to minimize shadowing effects and renders images true to life.
  • 3D DNR: Removes abnormal pixelation to provide clearer video and eliminate distortion.
  • Night Vision: A robust night vision system ensures your camera performs well in low light conditions and records what’s happening for future inspection.
  • 265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
  • PoE/12V DC: Two power supply ways not only give you more convenience but also make your wiring remarkably easy.
  • VIGI App: Manage your security from the palm of your hand with the VIGI app.

Specifications

NETWORK
Security Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
API ONVIF
Simultaneous Live View 4 Main Streams & 3 Sub-Streams, or 3 Main Streams & 5 Sub-Streams
GENERAL
Package Contents
  • VIGI Network Camera
  • Quick Start Guide
  • Waterproof Cable Attachments
  • Mounting Bracket
  • Mounting Accessories (Screws, Drywall Anchors, Hex Key)
Operating Temperature -30–60 °C
Certifications CE, FCC, RCM, BSMI, VCCI, IP67, RoHS
Dimensions( H X W X D ) 164.9 × 87.4 × 83.4 mm
Material Plastic
Weight 283.5g
General Features Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
Power Requirements
  • 12V DC ± 5%, 5.5mm Coaxial Power Plug
  • PoE (802.3af/at, class 0)
CAMERA
Image Sensor 1/2.8” Progressive Scan CMOS
Lens 4 mm / 6 mm
Aperture
  • 4 mm : F2.4
  • 6 mm : F2.0
Lens Mount M12
Viewing Angle
  • (4 mm) horizontal FOV : 82.5°, vertical FOV : 44.9°, diagonal FOV : 99.3°
  • (6 mm) horizontal FOV : 51.9°, vertical FOV : 28.7°, diagonal FOV : 60°
Day/Night Mechanism IR Cut Filter
IR Working Distance 30m
Minimum Illumination Color : 0.1 Lux@F2.0; 0 Lux with IR
Weatherproof Rating IP67
Digital Noise Reduction 3D DNR
WDR DWDR
VIDEO/IMAGE
Video Compression
  • Main stream : H.265/H.264
  • Sub-Stream : H.265/H.264
Frame Rate & Resolutions
  • Frame Rate : 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
  • Resolution : 2304×1296, 2048×1280, 1920×1080, 1280×720, 704×576, 640×480, 352×288, 320×240
Video Streaming
  • Main Stream
  • Sub-Stream
Image Settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software
Image Enhancement BLC/3D DNR/Prevent Overexposure to Infrared Light
Video Bit Rate 64 Kbps to 6 Mbps
SMART FEATURE-SET
Smart Event Area Intrusion Detection, Line-Crossing Detection
Basic Event Motion Detection, Camera Tampering Detection, Exception ( illegal login)
Linkage Method Trigger Notification : ONVIF, HTTPS
Region of Interest 1 Region
INTERFACES
Network Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port
Alarm
Button
Video Output

Datasheet Download
