Tplink TL-WPA4230P Nigeria

Rating

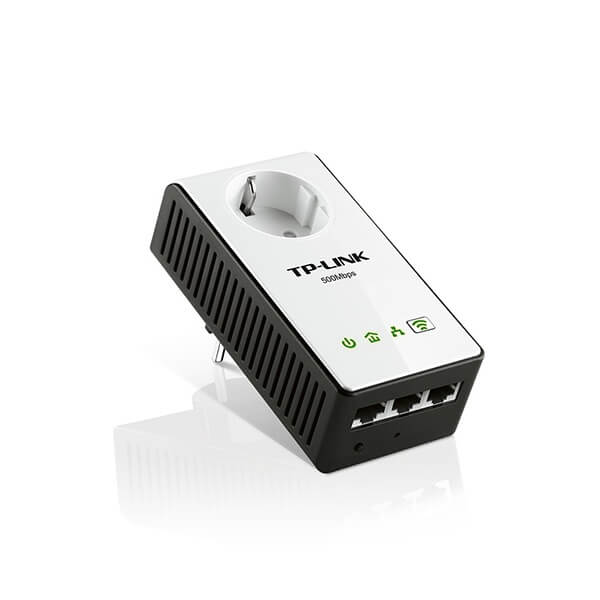

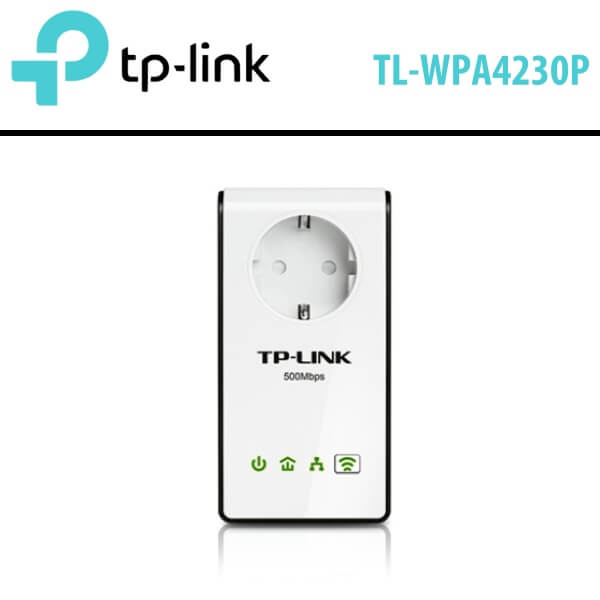

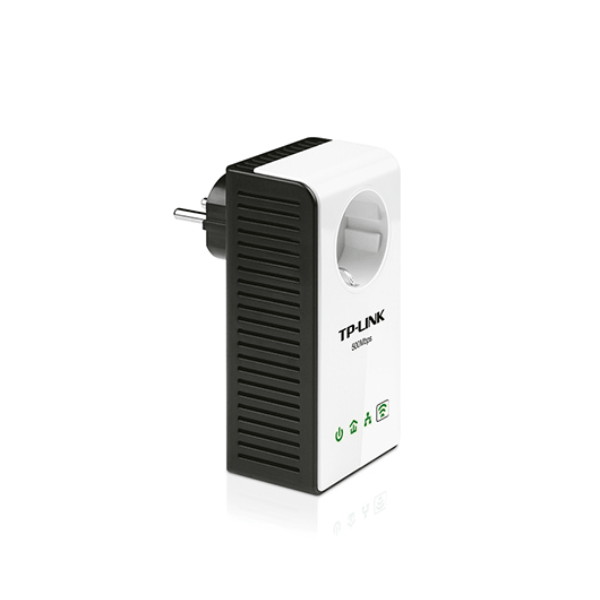

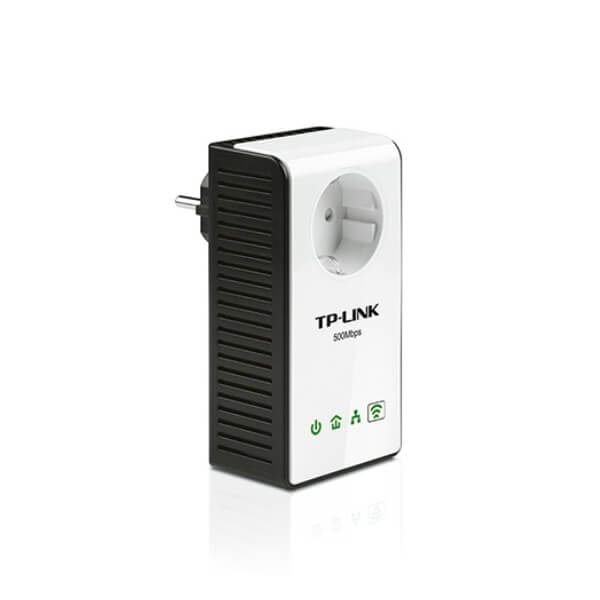

Tplink TL-WPA4230P Nigeria

The Tplink TL-WPA4230P Nigeria extends Wi-Fi coverage to every room with wireless speeds of up to 300Mbps, you can effortlessly extend your Wi-Fi network via the existing powerline.

Description

Tplink TL-WPA4230P Powerline Adapter Nigeria

The Tplink TL-WPA4230P Nigeria extend Wi-Fi coverage to every room with wireless speeds of up to 300Mbps, you can effortlessly extend your Wi-Fi network via the existing powerline. In doing so, you can broadcast a wireless signal to every room to share with all your Wi-Fi enabled devices. If necessary, TL-WPA4230P KIT’s Wi-Fi Clone Button can simplify your Wi-Fi configuration and help build a seamless unified home network.

Features

Wi-Fi Clone for Seamless Wireless Roaming

With a Wi-Fi Clone Button, Tplink TL-WPA4230P Nigeria can automatically copy the wireless network name (SSID) and Password of your router at the push of a button. After pressing the button, you can place the power-line adapter anywhere and enjoy seamless networking across you entire home or office. It will save the trouble of entering the new SSID and password when you move from one place to another place, especially when you have a smart phone, a tablet and a laptop at the same time.

Ideal for Bandwidth Intensive Applications

With powerline speeds of up to 500Mbps and high-performance data transmission, Tplink TL-WPA4230P Nigeria can transmit multiple HD video streams to every room, making it a great choice for an easy-to-build multimedia entertainment network.

Extra Power Socket for Additional Devices

Tplink TL-WPA4230P KIT Nigeria provides integrated power socket, allowing an additional device or power bar to be connected to the adapter as though it were a normal wall socket. No power outlet goes to waste.

Multiple Ethernet Ports

Equipped with 3 Ethernet ports, TL-WPA4230P allows you to connect several devices such as game con-soles, IPTVs or media receivers, at the same time just by plugging in network cables, avoiding the hassle of adding other networking devices for more access to the Internet.

Zero Configuration. Just Plug in and Play

Tplink TL-WPA4230P Nigeria is Plug one internet connected adapter into a nearby power outlet. Connect additional adapters to lap-tops/PCs/Internet TVs or other net-worked devices wirelessly or via an Ethernet cable – and you’re done!

Specifications

HARDWARE FEATURES
Plug Type EU, UK, FR
Standards and Protocols HomePlug AV, IEEE1901, IEEE802.3, IEEE802.3u, IEEE802.11b/g/n
Interface 3*10/100Mbps Ethernet Ports
Button Pair, Reset, Wi-Fi/Wi-Fi Clone
LED Indicator PWR, PLC, ETH, Wi-Fi/Wi-Fi Clone
Dimensions ( W x D x H ) 5.0 x 2.5 x 1.7 in. (126 × 64 × 42mm)
Range 300 Meters over electrical circuit
WIRELESS FEATURES
Frequency 2.4-2.4835GHz
Signal Rate
  • 11n : Up to 300Mbps(dynamic)
  • 11g : Up to 54Mbps(dynamic)
  • 11b : Up to 11Mbps(dynamic)
Reception Sensitivity
  • 270M : -68dBm@10% PER
  • 130M : -68dBm@10% PER
  • 108M : -68dBm@10% PER
  • 54M : -68dBm@10% PER
  • 11M : -85dBm@8% PER
  • 6M : -88dBm@10% PER
  • 1M : -90dBm@8% PER
Transmit Power
  • CE : <20dBm(2.4GHz)
  • FCC : <30dBm
Wireless Functions Enable/DisableWireless Radio,WMM, Wireless Statistics
Wireless Security 64/128-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK
SOFTWARE FEATURES
Modulation Technology OFDM (PLC)
Encryption Powerline Security :
128-bit AES
Wireless Security :
WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryption
OTHERS
Certification CE, FCC, RoHS
Package Contents
  • Powerline Ethernet Adapter TL-WPA4230P&TL-PA4020P
  • Resource CD
  • Quick Installation Guide
  • 2-meter RJ-45 Ethernet Cable * 2
System Requirements Windows 8/7/Vista/XP/2000, Mac OS X, Linux-based operating system
Environment
  • Operating Temperature : 0℃~40℃ (32℉~104℉)
  • Storage Temperature : -40℃~70℃ (-40℉~158℉)
  • Operating Humidity : 10%~90% non-condensing
  • Storage Humidity : 5%~90% non-condensing



Datasheet Download
