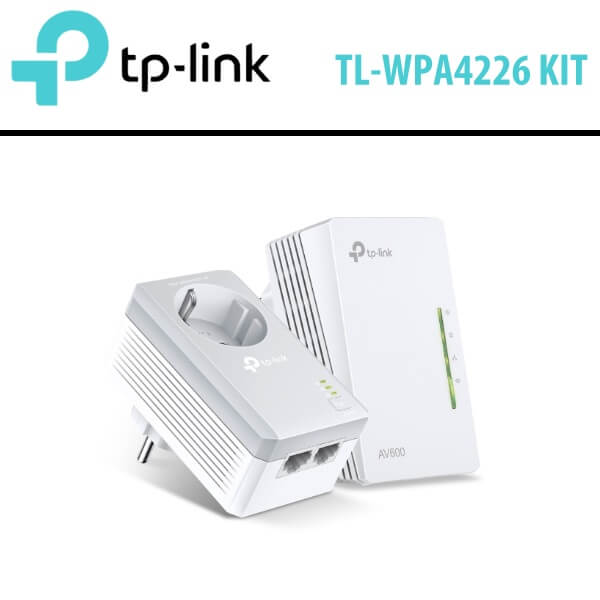

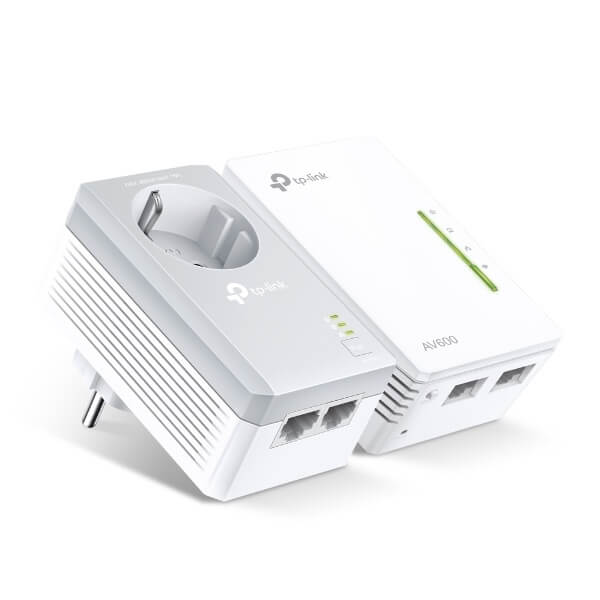

Tplink TL-WPA4226 KIT Nigeria

The Tplink TL-WPA4226 KIT Nigeria AV500 Powerline Wi-Fi Kit extends your Internet connection to every room of the house through your home’s existing electrical circuitry.

Description

Tplink TL-WPA4226 KIT Powerline Adapter Nigeria

The Tplink TL-WPA4226 KIT Nigeria AV500 Powerline Wi-Fi Kit extends your Internet connection to every room of the house through your home’s existing electrical circuitry. The TL-WPA4220 features a Wi-Fi Clone Button which can automatically extend your router’s wireless signal, making it easy to realize seamless roaming within your home network. What’s more, Tplink TL-WPA4226 KIT Nigeria has an integrated power socket, which allows an additional device or power bar to be connected to the adapter as though it were a normal wall socket.

Features

  • One Touch Super Range Extension – Wi-Fi Clone Button simplifies your Wi-Fi configuration and helps build a seamless unified home network
  • HomePlug AV standard compliant
  • Extend 300Mbps wireless connections to previously hard-to-reach areas of your home and office
  • Integrated power socket makes sure that no power outlet is going to waste

One Touch Super Range Extension

Tplink TL-WPA4226 KIT Nigeria is equipped with a Wi-Fi Clone Button enabling Super Range Extension, the powerline automatically copy the wireless network name (SSID) and Password of your router at the push of a button. After pressing the button, you can place the powerline extender anywhere you want wired or wireless access and enjoy seamless networking across your entire home or office.

AV500 for HD Video Streaming

With advanced HomePlug AV technology, Tplink TL-WPA4226 KIT Nigeria provides you with stable, high-speed data transfer rate on a line length of up to 300 meters. It is a great choice for a whole home solution to connect all network compatible devices – from computers, game consoles to set-top boxes for IPTV to printers and NAS

Extend Wi-Fi Coverage to Every Room

Tplink TL-WPA4226 KIT Nigeria has wireless speeds of up to 300Mbps, allowing effortlessly extend your Wi-Fi network via the existing powerline and broadcast a wireless signal to share with all your Wi-Fi enabled devices in another area of your home or office.

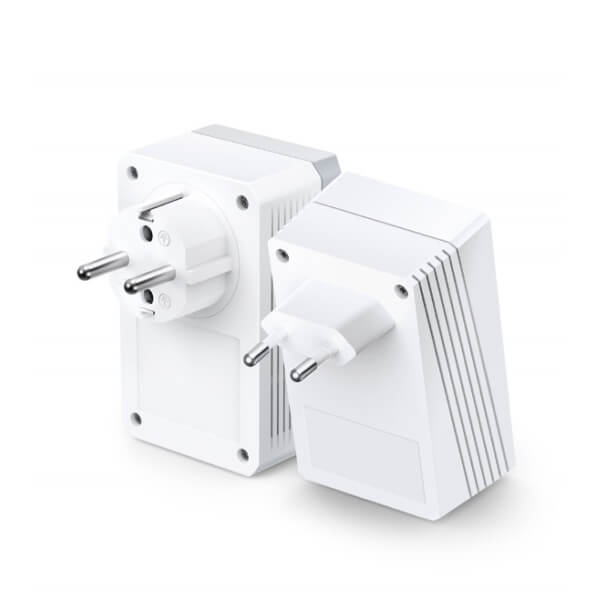

Extra Power Socket for Additional Devices

With TL-PA4020P’s integrated power socket, the new Tplink TL-WPA4226 KIT Nigeria provides real convenience for your home network. The integrated power socket allows an additional device or power bar to be connected to the adapter as though it were a normal wall socket. This ensures that even with the TL-PA4020P plugged in, no power outlet is going to waste

Plug and Play

You can set up a hassle-free Tplink TL-WPA4226 KIT Nigeria powerline network within minutes with TP-LINK’s powerline adapters, just plug in and play. Also, the adapters’ “Pair” buttons can be utilized for securing or managing multiple powerline adapters in your home powerline network.

  1. Plug one Internet connected adapter into a nearby power outlet.
  2. Connect additional adapters to PCs/laptops/Internet TVs or other networked devices via an Ethernet cable or Wi-Fi, and you’re done!

Specifications

HARDWARE FEATURES
Plug Type US
Standards and Protocols HomePlug AV2, HomePlug AV, IEEE 1901, IEEE 802.3, IEEE
802.3u, IEEE 802.3ab
Interface
  • 2 * 10/100Mbps Ethernet Ports –TL-WPA4220
  • 2 * 10/100Mbps Ethernet Ports – TL-PA4020P
  • Power Socket
Button Pair Button, Wi-Fi Button, Reset Button
Power Consumption
  • Maximum : 8.218W
  • Typical : 7.686W
  • Standby : 4.630W
LED Indicator Power, Powerline, Ethernet, Wi-Fi
Dimensions ( W x D x H )
  • TL-WPA4220 : 2.1 × 1.6 ×3.7 in (54 × 40 × 94 mm)
  • TL-PA4020P : 2.3 × 1.7 × 3.7 in (58 × 42 × 95mm)
Range Up to 300 meters/1,000 feet over existing electrical wiring
SOFTWARE FEATURES
Modulation Technology OFDM (PLC)
Encryption
  • Wireless Security : WPA-PSK / WPA2-PSK, WEP Encryptions
  • Powerline Security : 128-bit AES
OTHERS
Certification CE, RoHS
Package Contents
  • AV600 Powerline Wi-Fi Kit
  • 1 × TL-WPA4220 (Wi-Fi Extender)
  • 1 × TL-PA4020P
  • 2 × Ethernet Cables
  • 1 × Quick Installation Guide
System Requirements Windows 10/8.1/8/7/Vista/XP, Mac OS or Linux-based operating system
Environment
  • Operating Temperature : 0°C~40°C (32°F ~104°F)
  • Operating Humidity : 10%~90% non-condensing
  • Storage Humidity : 5%~90% non-condensing
