Tplink TL-WPA2220 Nigeria

Rating

Tplink TL-WPA2220 Nigeria

The Tplink TL-WPA2220 Nigeria extends your Internet connection to every room of the house through your home’s existing electrical circuitry. The TL-WPA2220 features a Wi-Fi Clone Button enabling Super Range Extension

Description

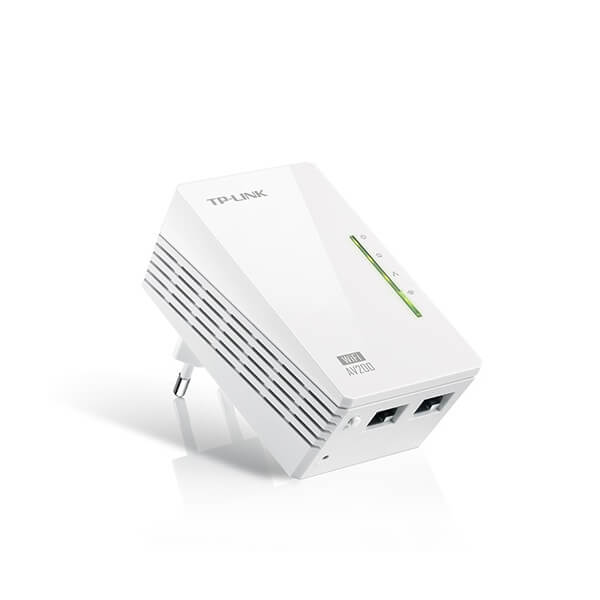

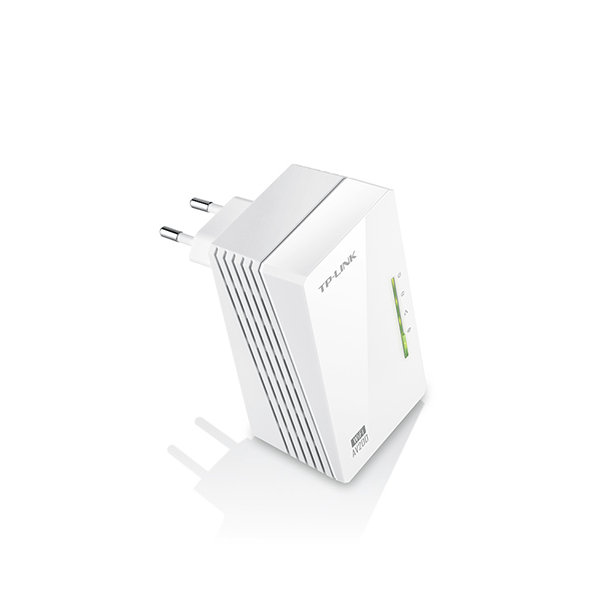

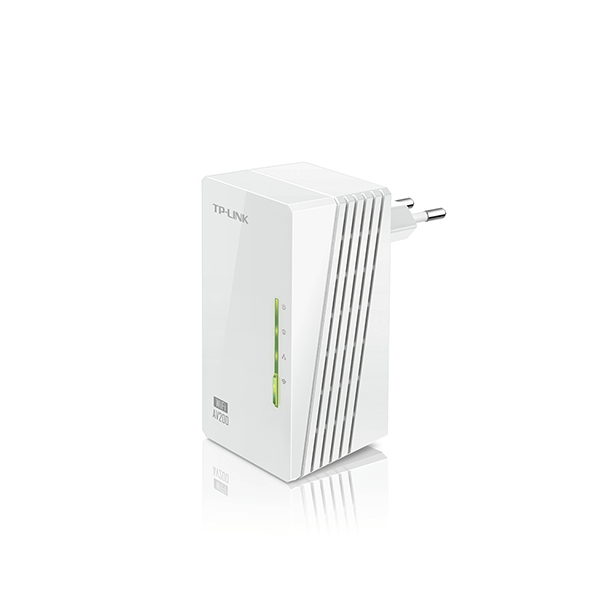

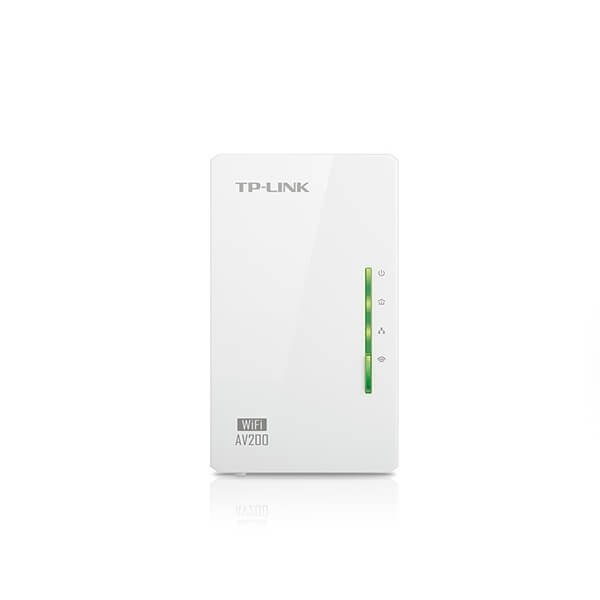

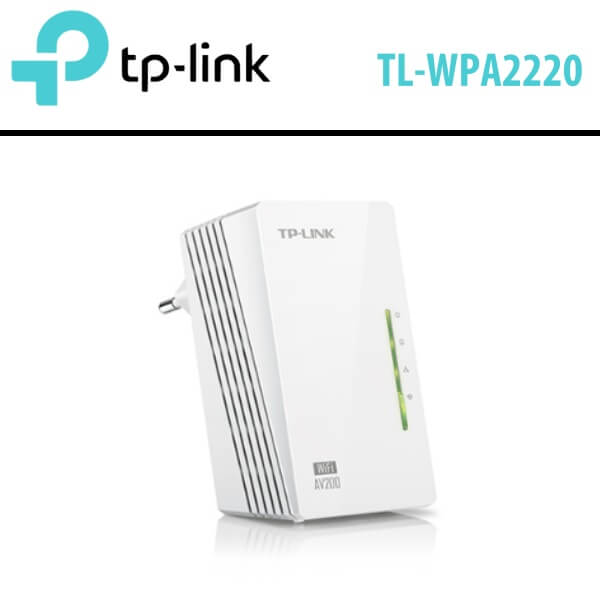

Tplink TL-WPA2220 Wi-Fi Powerline Adapter Nigeria

The Tplink TL-WPA2220 Nigeria extends your Internet connection to every room of the house through your home’s existing electrical circuitry. The TL-WPA2220 features a Wi-Fi Clone Button enabling Super Range Extension, which means it can automatically copy the SSID and Password of your router. In this way, TL-WPA2220 simplifies your Wi-Fi configuration and allows for seamless roaming within your home network.

Features

  • One Touch Super Range Extension – Wi-Fi Clone Button simplifies your Wi-Fi configuration and helps build a seamless unified home network
  • Extend 300Mbps wireless connections to previously hard-to-reach areas of your home and office
  • HomePlug AV standard providing up to 200Mbps high speed data transmission over a home’s existing electrical wiring, ideal for lag-free HD or 3D video streaming and online gaming

Extend Wi-Fi Coverage to Every Room

Tplink TL-WPA2220 Nigeria offers high wireless speeds of up to 300Mbps, you can effortlessly extend their Wi-Fi network via the existing powerline and broadcast a wireless signal to share with all your Wi-Fi enabled devices in another area of your home or office.

Extend Wi-Fi Coverage to Every Room

With wireless speeds of up to 300Mbps, you can effortlessly extend their Wi-Fi network via the existing powerline and broadcast a wireless signal to share with all your Wi-Fi enabled devices in another area of your home or office.

One Touch Super Range Extension

With a Wi-Fi Clone Button enabling Super Range Extension, Tplink TL-WPA2220 Nigeria can automatically copy the wireless network name (SSID) and Password of your router at the push of a button. After pressing the button, you can place the powerline adapter anywhere you want wired or wireless access and enjoy seamless networking across your entire home or office.

Plug and Play

Set up a hassle-free Tplink TL-WPA2220 Nigeria Powerline network within minutes with TP-LINK’s powerline adapters, just plug in and play. Also, the adapters’ “Pair” buttons can be utilized for securing or managing multiple powerline adapters in your home powerline network. Plug one Internet connected adapter into a nearby power outlet. Then connect additional adapters to PCs/laptops/Internet TVs or other networked devices via an Ethernet cable or Wi-Fi – and you’re done!

Specifications

HARDWARE FEATURES
Plug Type EU, UK, US, AR
Standards and Protocols HomePlug AV, IEEE802.3, IEEE802.3u, IEEE802.11b/g/n
Interface 2*10/100Mbps Ethernet Port
Button Pair, Reset, Wi-Fi/Wi-Fi Clone
Power Consumption
  • Maximum: 5.0W (220V/50Hz)
  • Typical: 5.0W (220V/50Hz)
  • Standby: 2.5W (220V/50Hz)
LED Indicator PWR, PLC, ETH, Wi-Fi/Wi-Fi Clone
Dimensions ( W x D x H ) 3.7 x 2.1 x 1.6 in. (94×54×40mm)
Range 300 Meters over electrical circuit
WIRELESS FEATURES
Frequency 2.4-2.4835GHz
Signal Rate
  • 11n: Up to 300Mbps(dynamic)
  • 11g: Up to 54Mbps(dynamic)
  • 11b: Up to 11Mbps(dynamic)
Reception Sensitivity
  • 270M: -68dBm@10% PER
  • 130M: -68dBm@10% PER
  • 108M: -68dBm@10% PER
  • 54M: -68dBm@10% PER
  • 11M: -85dBm@8% PER
  • 6M: -88dBm@10% PER
  • 1M: -90dBm@8% PER
Transmit Power CE:<20dBm(2.4GHz)
FCC:<30dBm
Wireless Functions Enable/DisableWireless Radio,WMM, Wireless Statistics
Wireless Security 64/128-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK
SOFTWARE FEATURES
Modulation Technology OFDM (PLC)
Encryption Powerline Security:
128-bit AES
Wireless Security:
WEP, WPA/WPA2, WPA-PSK/WPA2-PSK Encryption
OTHERS
Certification CE, FCC, RoHS
Package Contents
  • Powerline Ethernet Adapter TL-WPA2220
  • 6.5 ft. (2 m) Ethernet cable (RJ45)
  • Resource CD
  • Quick Installation Guide
System Requirements Windows 2000/XP/2003/Vista, Windows 7/8, Mac, Linux
Environment
  • Operating Temperature: 0°C~40°C (32°F ~104°F)
  • Storage Temperature: -40°C~70°C (-40°F ~158°F)
  • Operating Humidity: 10%~90% non-condensing
  • Storage Humidity: 5%~90% non-condensing



Datasheet Download
