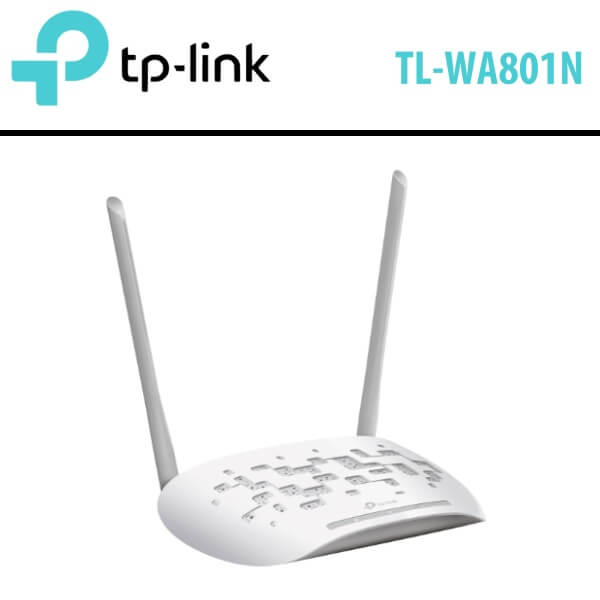

Tplink TL-WA801N Nigeria

Rating

Tplink TL-WA801N Nigeria

The Tplink TL-WA801N Nigeria Wireless N Access Point is designed to establish or expand a scalable high-speed wireless N network or to connect multiple Ethernet-enabled devices such as game consoles, digital media adapters, printers, or network-attached storage devices to a wireless network.

Description

Tplink TL-WA801N Wireless Access Point Nigeria

The Tplink TL-WA801N Nigeria Wireless N Access Point is designed to establish or expand a scalable high-speed wireless N network or to connect multiple Ethernet-enabled devices such as game consoles, digital media adapters, printers, or network-attached storage devices to a wireless network. The Tplink TL-WA801N Nigeria AP supports a host of different functions that makes your wireless networking experience more flexible than ever before. Now, you can enjoy a better Internet experience when downloading, gaming, video streaming or any other applications that you may wish to use.

Features

  • 300 Mbps wireless speed ideal for smooth HD video, voice streaming, and online gaming
  • Supports multiple operation modes: Access Point, Multi-SSID, Client, and Range Extender modes
  • Protects your home network with WPA2 encryption and makes quick connection with the push of a button
  • Up to 30 meters (100 feet) of flexible deployment with included Passive Power over Ethernet Injector

Wireless N – Speed & Range

Tplink TL-WA801N Nigeria Access Point adopts IEEE 802.11n advanced MIMO (Multi Input Multi Output) technology, it simultaneously works through two antennas to Tx and Rx to overcome the interference and signal degradation when traveling long distances or through physical barriers in a small office or a large apartment, resulting in an incredible improvement in the wireless performance, even in a steel-and-concrete building. Above all, you could easily pick up the wireless network during long-distance connection where legacy 11g products may not!

Easy to Build WLAN

Tplink TL-WA801N Nigeria Supports multiple operation modes (Access Point, Multi-SSID, Client, Range Extender) to enable various wireless applications to give users a more dynamic and comprehensive experience when using their APs. Multiple operating modes also help you easily build wireless network for hard-to-wire locations or eliminating wireless dead zone.

More Flexible Deployment

The Tplink TL-WA801N Nigeria is able to be powered using an Ethernet cable to simultaneously send data and electricity to wherever your AP may be located even up to 100 feet away. This feature multiplies your options allowing you to place the AP in a position that is most convenient to get the best signal possible, such as on the wall or on the ceiling of your office.

Specifications

HARDWARE FEATURES

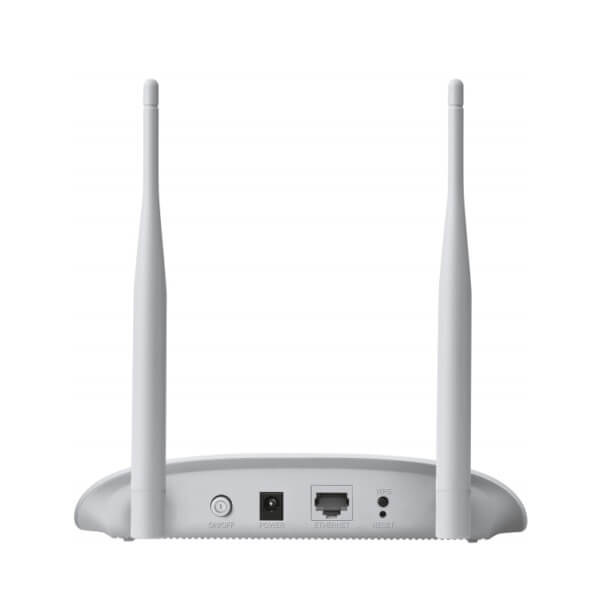

Interface
  • 1× 10/100 M Ethernet Port(RJ45)
  • Support Passive PoE
Button Power On/Off Button, WPS Button, Reset Button
External Power Supply 9VDC / 0.6A
Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Dimensions ( W x D x H ) 7.1 × 5.1 × 1.4 in (181.6 × 129.5 × 36.2 mm)
Antenna Type 2 Fixed Omni-Directional Antennas
WIRELESS FEATURES
Frequency 2.4 GHz
Signal Rate 300 Mbps at 2.4 GHz
Reception Sensitivity
  • 11g 6Mbps: -90dBm
  • 11g 54Mbps: -77dBm
  • 11n HT20 MC7: -73dBm
  • 11n HT40 MC7: -70dBm
Transmit Power CE: <15dBm; FCC: <20dBm
Wireless Modes
  • AP Mode
  • Multi-SSID Mode
  • Client Mode
  • Range Extender Mode
Wireless Functions Enable/Disable Wireless Radio, WMM, Short GI, AP
Isolation, Wireless Statistics, Throughput Monitor
Wireless Security WEP, WPA/WPA2, WPA/WPA2-PSK encryptions
Quality of Service WMM
Management SNMP
Advanced Functions Up to 30 meters Passive PoE is supported
OTHERS
Certification CE, FCC, RoHS
Package Contents
  • Wireless Access Point TL-WA801N
  • Power Adapter
  • Passive PoE Power Injector
  • RJ45 Ethernet Cable
  • Quick Installation Guide
System Requirements
  • Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS,
  • NetWare, UNIX or Linux
  • Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
  • Java-enabled browser
  • Cable or DSL Modem
  • Subscription with an Internet Service Provider (for Internet access)
Environment
  • Operating Temperature: 0°C~40°C (32°F ~104°F)
  • Storage Temperature: -40°C~70°C (-40°F ~158°F)
  • Operating Humidity: 10%~90% RH
  • Storage Humidity: 5%~90% RH
