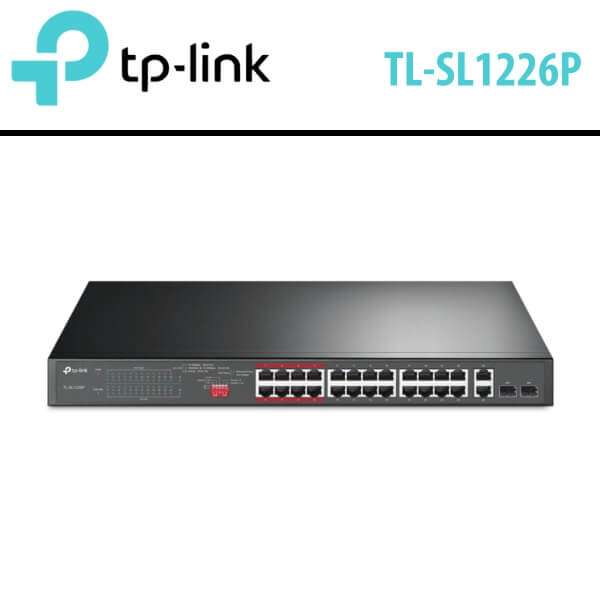

Tplink TL-SL1226P Network Switch Nigeria
Tplink TL-SL1226P Nigeria 24-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE+ Switch. It complies with the 802.3af/at PoE+ standard supports up to 30W on each PoE port. The total 250 W PoE power budget for the 24× PoE ports makes it has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.
Features
- 24× PoE+ 10/100 Mbps RJ45 ports, 2× Gigabit RJ45 ports, and 2× combo Gigabit SFP slots
- High PoE power budget with up to 30 W for each PoE port and 250 W for all PoE ports*
- Up to 250 m data and power PoE transmission range under Extend Mode**, ideal for surveillance system
- Priority Mode ensures high priority of ports 1–8 to guarantees the quality of sensitive applications like video monitor
- Isolation Mode allows one-click client traffic separation for higher security and performance
- Plug and play, with no configuration and installation needed
Dedicated 24-Port PoE+ Switch forWide Range of Applications with 250 W PoE Budget
Compliance with the 802.3af/at PoE+ standard supports up to 30W on each PoE port. The total 250 W PoE power budget* for the 24× PoE ports makes it has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.
Dedicated Design for IP Surveillance—Up to 250 m Transmission
Tplink TL-SL1226P Nigeria packs extend mode, the PoE transmission distance reaches up to 250 m*—perfect for IP Camera deployment in large areas.
Priority Video Quality Guaranteed
Tplink TL-SL1226P Nigeria boasts of quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–8 when one-touch Priority Mode is on.
One-Click Traffic Separation for Ports 1-24
With one click, Isolation Mode easily divides traffic for ports 1–24 to avoid snooping and tampering. This enables the switch to isolate broadcast storm, improving LAN security and data transmission.
Smooth HD Video Monitoring
Tplink TL-SL1226P Nigeria has 2× gigabit RJ45 ports and 2× combo gigabit SFP ports ensure smooth streaming even when 24× HD IP cameras work simultaneously.
Intelligent Power Management
Tplink TL-SL1226P Nigeria automatically turns off lower priority ports’ power to ensure high-priority ports’ power supply when the total PoE power consumption exceeds 250 W.
Powered-Device Detection
Tplink TL-SL1226P Nigeria automatically detects and provides the required power for your PoE devices, and protects your non-PoE equipment from being damaged.
Durable Metal Casing
A durable metal casing and professional heat dissipation design ensure greater reliability in wide operating temperatures (0–50℃).
Specifications
HARDWARE FEATURES | |
Interface |
|
Network Media |
|
Fan Quantity | 2 Fans |
Physical Security Lock | Yes |
Power Supply | 100-240 VAC, 50/60 Hz |
Packet Forwarding Rate | 6.5472 Mpps |
PoE+ Ports(RJ45) |
|
Mac Address Table | 8 K |
Jumbo Frame | 10 KB |
Switching Capacity | 8.8 Gbps |
Dimensions ( W x D x H ) | 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm) |
Max Power Consumption |
|
Max Heat Dissipation |
|
SOFTWARE FEATURES | |
Advanced Features |
|
Transmission Method | Store-And-Forward |
OTHERS | |
Certification | CE, FCC, RoHS |
Package Contents |
|
Environment |
|
