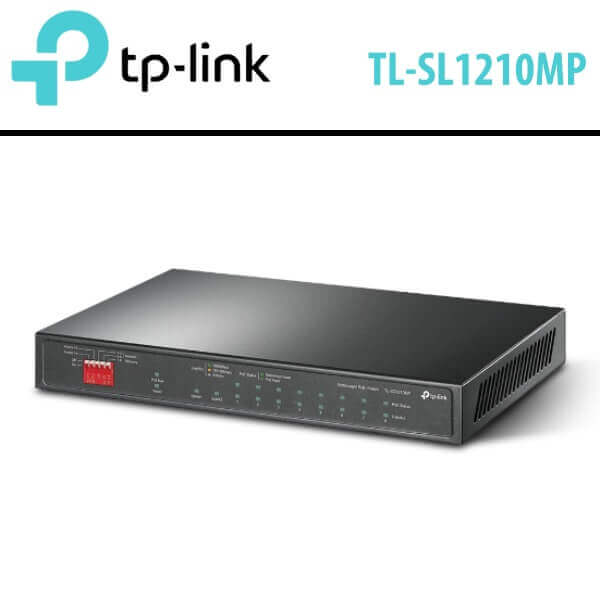

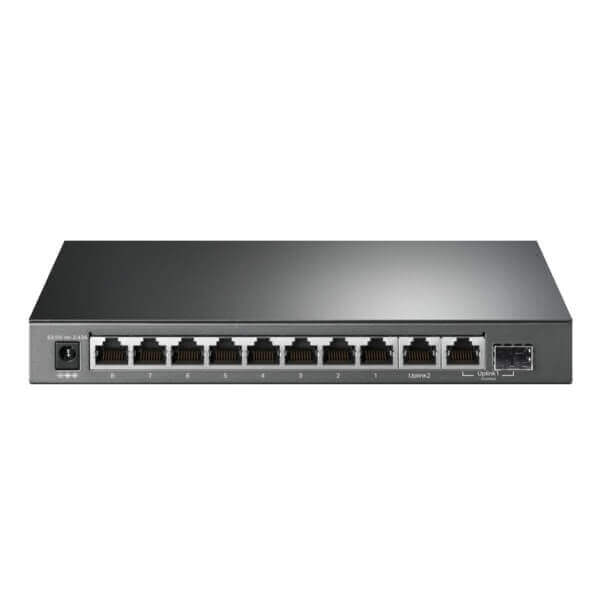

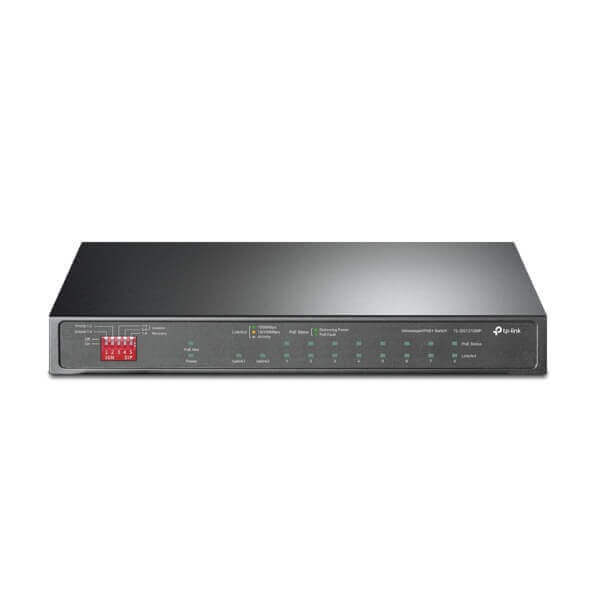

Tplink TL-SL1210MP Network Switch Nigeria

Tplink TL-SL1210MP Nigeria is an unmanaged PoE switch with eight 10/100 Mbps ports, one Gigabit port and one SFP port, and its total PoE budget of the eight PoE+ ports is 124 W. It can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to connect devices such as APs, IP Cameras or IP Phones, etc. 8 of the 11 Auto-Negotiation RJ45 ports (port 1 to port 8) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af/at compliant Powered Devices (PDs).

Features

8-Port 10/100Mbps + 2-Port Gigabit Desktop Switch with 8-Port PoE+
With 8 PoE+ ports, transfers data and power on one single cable
Working with IEEE802.3af/at compliant PDs, expands your network
Supports PoE power up to 30 W for each PoE port
Supports PoE power up to 124 W* for all PoE ports
Up to 250 m data and power transmission under Extend** Mode specially designed for surveillance system
Isolation Mode allows one-click client traffic separation for higher security and performance
Requires no configuration and installation

Overload Arrangement

Tplink TL-SL1210MP Nigeria has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is larger than124 W*, a priority will be arranged among the PoE ports, then the system will cut oﬀ the power of the lowest-priority port.

Intelligent Power Management

Priority (port 1 > port 2 >…> port 7 > port 8): This function will help protect the system when the system power is overloaded. For example, port 1, 2, 3 and 5 is using 30 W (maximum power per port is 30 W); the system power now is 120 W in total. If there is an additional PD inserted to port 4 with 30 W, and then the system will cut oﬀ the power of port 4 because of the overloaded power, this means port 1, 2, 3 and 4 will use 30 W, no power will be supplied to port 5.

Easy to Use

Tplink TL-SL1210MP Nigeria is easy to install and use. It requires no configuration and installation. With desktop and wall mountable design, outstanding performance and quality, TL-SL1210MP is a great selection for expanding your network.

Specifications

General

Device Type : Switch – 10 ports – unmanaged
Enclosure Type : Desktop
Subtype : Fast Ethernet
Ports : 8 x 10/100 (PoE+) + 2 x 10/100/1000
Power Over Ethernet (PoE) : PoE+
PoE Budget : 124 W
Performance :
- Switching capacity : 5.6 Gbps
- Packet forwarding rate : 4.166 Mpps
MAC Address Table Size : 2K entries
Jumbo Frame Support : 16KB
Features : Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, fanless, extend mode
Compliant Standards : IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at
Status Indicators : Power, PoE, link/activity, PoE max
