Description
Tplink TL-SG3428X Managed Switch Nigeria

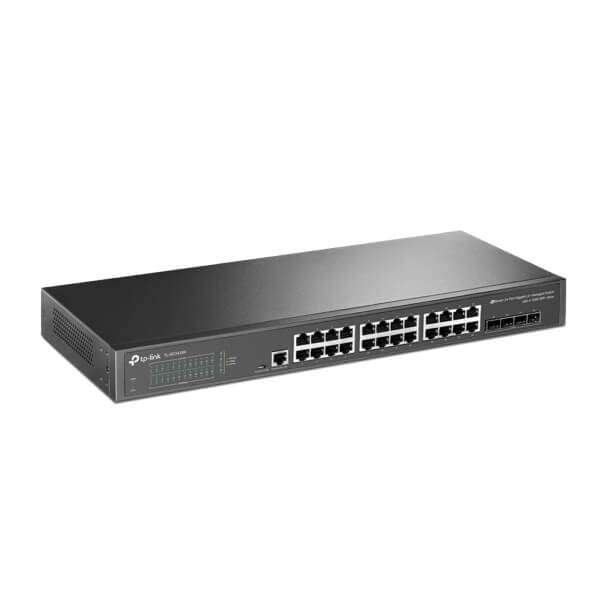

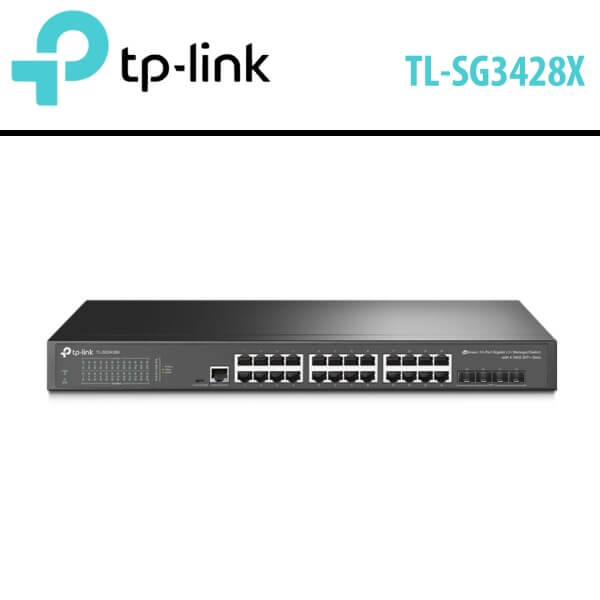

Tplink TL-SG3428X Nigeria JetStream is a 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots. This managed Switch builds and expands your lightning-fast network with 24 gigabit Ethernet ports and 10 Gbps SFP+ uplink ports. Tplink TL-SG3428X Nigeria is seamlessly integrated into Omada SDN system, and is capable of being centrally managed via web UI or Omada app. Ideal for small, medium, and large enterprise networks, it meets and surpasses the needs for high-speed, reliable, and safe enterprise networks
Features
- 10G Lightning-Fast Uplink: 4× 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity.
- Gigabit Speeds: 24× gigabit RJ45 ports offer high-speed and reliable connections to other switches and devices.
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*, Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra-convenience and easy management.
- Static Routing: Helps route internal traffic for more efficient use of network resources.
- Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
- Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
- Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities
Enterprise Switch with 10G Uplink
Tplink TL-SG3428X Nigeria comes with 4× 10 Gbps SFP+ slots providing non-blocking switching performance and ultra-low latency, so reliable and lightning-fast connections to server and other switches are easily built.
Software Defined Networking (SDN) with Cloud Access
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
Advanced L3 Features
An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses and ISPs.
Secure Networking
Tplink TL-SG3428X Nigeria packs security features include IP-MAC-Port-VID Binding, Port Security, Storm Control and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports or VLAN ID. Users’ network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.
Enterprise Level Features
A complete lineup of L2+ features are supported, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routs traffic through the switch for improved efficiency.
Advanced QoS
Tplink TL-SG3428X Nigeria, Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply.
ISP Features
sFlow, QinQ, L2PT PPPoE ID Insertion and IGMP authentication features are provided, developed with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links.
IPv6 Support
IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery and IPv6 Neighbor Discover guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware.
Specifications
HARDWARE FEATURES | |
Interface |
|
Fan Quantity | Fanless |
Power Supply | 100-240 V AC~50/60 Hz |
Dimensions ( W x D x H ) | 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm) |
Mounting | Rack Mountable |
Max Power Consumption | 23.6 W (110V/60Hz) |
Max Heat Dissipation | 80.353 BTU/h (110 V/60 Hz) |
PERFORMANCE | |
Switching Capacity | 128 Gbps |
Packet Forwarding Rate | 95.23 Mpps |
MAC Address Table | 16 K |
Packet Buffer Memory | 12 Mbit |
Jumbo Frame | 9 KB |
SOFTWARE FEATURES | |
Quality of Service |
|
L2 and L2+ Features |
|
L2 Multicast |
|
VLAN |
|
Access Control List |
|
Security |
|
IPv6 |
|
L3 Features |
|
Management |
|
Advanced Features |
|
MIBs |
|
MANAGEMENT | |
Omada App | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
Centralized Management |
|
Cloud Access | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
Management Features |
|
OTHERS | |
Certification | CE, FCC, RoHS |
Package Contents |
|
System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/10/11, MAC OS, NetWare, UNIX or Linux. |
Environment |
|
