Description

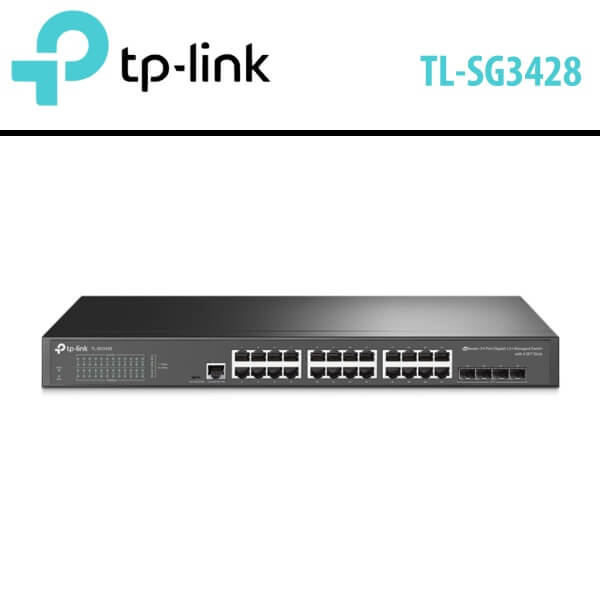

Tplink TL-SG3428 Network Switch Nigeria
Tplink TL-SG3428 Nigeria JetStream is a 24-Port Gigabit L2+ Managed Switch with 4 SFP Slots. It expands your office or business network capacity to handle a multitude of high-bandwidth applications with 24-Port Gigabit Managed Network Switch from TP-Link. This managed rack-mountable switch features 24 Gigabit Ethernet ports that allow you to quickly connect computers, printers, and other wired Ethernet devices. There are also four Gigabit SFP ports for high-speed fiber uplinks. With its 56 Gb/s switching capacity and 41.66 Mpps forwarding rate, Tplink TL-SG3428 Nigeria provides smooth data transfers. The broad range of L2+ and L3 features allows you to configure and manage your network to best suit your business’s needs. A host of security features includes an Access Control List (ACL), Storm Control, and DHCP Snooping to help defend your network against threats. Use the Omada Software Defined Networking platform to manage your connected network devices remotely with the Omada app.
Features
- Full Gigabit Ports: 24× gigabit RJ45 ports and 4× gigabit SFP Slots provide high-speed connections.
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra-convenience and easy management.
- Static Routing: Helps route internal traffic for more efficient use of network resources.
- Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
- Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
- Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities
Software Defined Networking (SDN) with Cloud Access
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
Secure Networking
Tplink TL-SG3428 Nigeria security features include IP-MAC-Port-VID Binding, Port Security, Storm Control, and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, or VLAN ID. Users’ network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.
Advanced QoS
Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply.
Abundant L2 and L2+ Features
Tplink TL-SG3428 Nigeria packs a complete lineup of L2 features are supported including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routs traffic through the switch for improved efficiency.
ISP Features
QinQ, L2PT, PPPoE ID Insertion, and IGMP authentication features are provided, developed with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links.
IPv6 Support
Tplink TL-SG3428 Nigeria IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery and IPv6 Neighbor Discover guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware.
Enterprise Level Management Features
Tplink TL-SG3428 Nigeria is easy to manage via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enables the switch to be polled for valuable status information and to send traps on abnormal events.
Specifications
HARDWARE FEATURES | |
Interface |
|
Fan Quantity | Fanless |
Power Supply | 100-240 V AC~50/60 Hz |
Dimensions ( W x D x H ) | 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm) |
Mounting | Rack Mountable |
Max Power Consumption |
|
Max Heat Dissipation |
|
PERFORMANCE | |
Switching Capacity | 56 Gbps |
Packet Forwarding Rate | 41.66 Mpps |
MAC Address Table |
|
Packet Buffer Memory | 12 Mbit |
Jumbo Frame | 9 KB |
SOFTWARE FEATURES | |
Quality of Service |
|
L2 and L2+ Features |
|
L2 Multicast |
|
VLAN |
|
Access Control List |
|
Security |
|
IPv6 |
|
L3 Features |
|
Advanced Features |
|
MIBs |
|
MANAGEMENT | |
Omada App | Yes, through
|
Centralized Management |
|
Cloud Access | Yes, through
|
Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller (Supported by TL-SG2210P v3.2, v5 and above, while is not supported by TL-SG2210P v4) |
Management Features |
|
OTHERS | |
Certification | CE, FCC, RoHS |
Package Contents |
|
System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/10/11, MAC OS, NetWare, UNIX or Linux. |
Environment |
|
