Tplink TL-SG3210XHPM2 Nigeria

Rating

Tplink TL-SG3210XHPM2 Nigeria

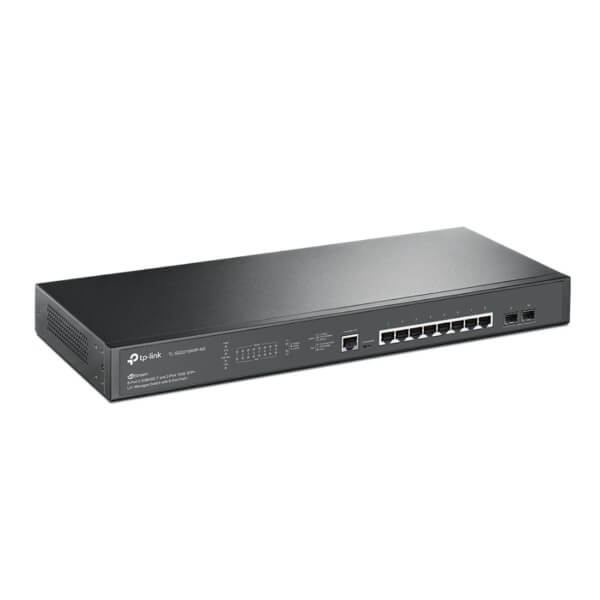

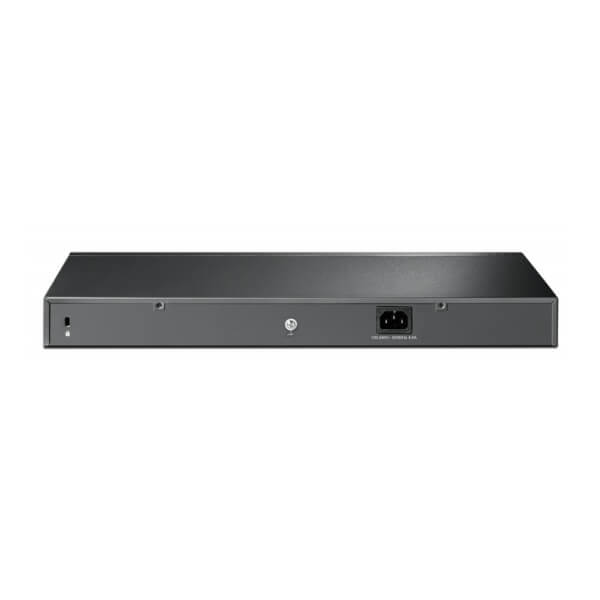

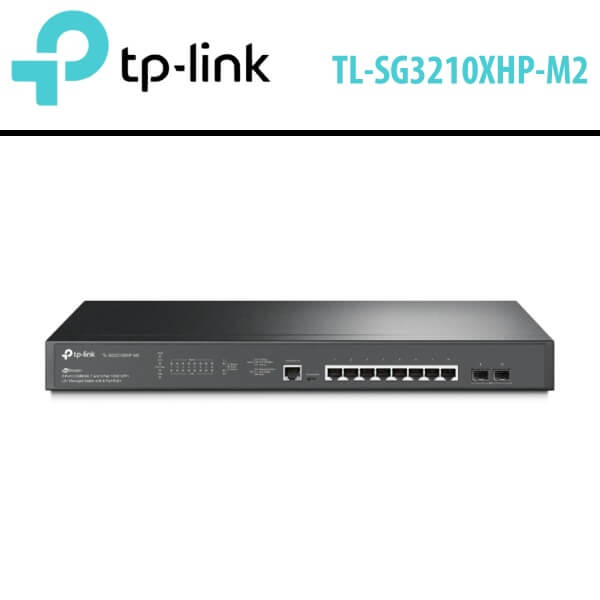

The Tplink TL-SG3210XHPM2 Nigeria is 8-Port Layer 2+ Smart Managed Rackmount 2.5-Gigabit PoE+ Switch providing high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features.

Description

Tplink TL-SG3210XHPM2 Managed Switch Nigeria

The Tplink TL-SG3210XHPM2 Nigeria is 8-Port Layer 2+ Smart Managed Rackmount 2.5-Gigabit PoE+ Switch providing high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 2.5-Gigabit ports ensure high-speed data transfer, and their backward compatibility with Gigabit products reserves room for network upgrades, therefore guaranteeing stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster.

Featuring 8× 2.5 Gbps PoE+ ports, the switch is capable of future network expansion and deployment, providing sufficient bandwidth for incoming WiFi 6 APs. Tplink TL-SG3210XHPM2 Nigeria is designed to use a single Ethernet cable for both data and power transmission, it supports up to 240 W total PoE power budget* and flexible installation to fit in various application scenarios. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. The TL-SG3210XHPM2 provides a reliable, secure solution for enterprise, campus and ISP networks.

Features

Enterprise Switch with 10G Uplink

Tplink TL-SG3210XHPM2 Nigeria has 2× 10 Gbps SFP+ slots provide non-blocking switching performance and ultra-low latency, so reliable and lightning-fast connections to servers and other switches are easily built.

Software-Defined Networking (SDN) with Cloud Access

Omada’s Software-Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

Advanced L3 Features

An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses, and ISPs.

Secure Networking

Tplink TL-SG3210XHPM2 Nigeria security features include IP-MAC-Port-VID Binding, Port Security, Storm Control and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, or VLAN ID. Users’ network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.

Enterprise Level Features

A Tplink TL-SG3210XHPM2 Nigeria packs a complete lineup of L2+ features are supported, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routs traffic through the switch for improved efficiency.

Advanced QoS

Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply.

ISP Features

sFlow, QinQ, L2PT PPPoE ID Insertion, and IGMP authentication features are provided, developed with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links.

IPv6 Support

IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery, and IPv6 Neighbor Discover guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware.

Specifications

HARDWARE FEATURES
Interface
  • 8× 100/1000/2500 Mbps RJ45 Ports
  • 2× 10G SFP+ Slots
  • 1× RJ45 Console Port
  • 1× Micro-USB Console Port
Fan Quantity 2
Power Supply 100-240 V AC~50/60 Hz
PoE Ports (RJ45)
  • Standard : 802.3at/af compliant
  • PoE+ Ports : 8 Ports
  • PoE Power Budget : 240 W*
Dimensions ( W x D x H ) 17.3 × 7.1 × 1.7 in.
(440 × 180 × 44 mm)
Mounting Rack Mountable
Max Power Consumption
  • 17.2 W (no power device connected)
  • 291.5 W (with 240W power devices connected)
Max Heat Dissipation
  • 58.8 BTU/h (no power device connected)
  • 994.6 BTU/h (with 240W power devices connected)
PERFORMANCE
Switching Capacity 80 Gbps
Packet Forwarding Rate 59.52 Mpps
MAC Address Table 16 K
Packet Buffer Memory 12 Mbit
Jumbo Frame 9 KB
SOFTWARE FEATURES
Quality of Service
  • 8 priority queues
  • 802.1p CoS/DSCP priority
  • Queue scheduling
    • SP (Strict Priority)
    • WRR (Weighted Round Robin)
    • SP+WRR
  • Bandwidth Control
    • Port/Flow based Rating Limiting
  • Smoother Performance
  • Action for Flows
    • Mirror (to supported interface)
    • Redirect (to supported interface)
    • Rate Limit
    • QoS Remark
L2 and L2+ Features
  • Link Aggregation
    • static link aggregation
    • 802.3ad LACP
    • Up to 8 aggregation groups, containing 8 ports per group
  • Spanning Tree Protocol
    • 802.1d STP
    • 802.1w RSTP
    • 802.1s MSTP
    • STP Security : TC Protect, BPDU Filter, Root Protect
  • Loopback Detection
    • Port based
    • VLAN based
  • Flow Control
    • 802.3x Flow Control
    • HOL Blocking Prevention
  • Mirroring
    • Port Mirroring
    • CPU Mirroring
    • One-to-One
    • Many-to-One
    • Tx/Rx/Both
L2 Multicast
  • IGMP Snooping
    • IGMP v1/v2/v3 Snooping
    • Fast Leave
    • IGMP Snooping Querier
    • IGMP Authentication
  • IGMP Authentication
  • MLD Snooping
    • MLD v1/v2 Snooping
    • Fast Leave
    • MLD Snooping Querier
    • Static Group Config
    • Limited IP Multicast
  • MVR
  • Multicast Filtering : 256 profiles and 16 entries per profile
VLAN
  • VLAN Group
    • Max 4K VLAN Groups
  • 802.1Q Tagged VLAN
  • MAC VLAN : 7 Entries
  • Protocol VLAN : Protocol Template 16, Protocol VLAN 16
  • Private VLAN
  • GVRP
  • VLAN VPN (QinQ)
    • Port-Based QinQ
    • Selective QinQ
  • Voice VLAN
Access Control List
  • Time-based ACL
  • MAC ACL
    • Source MAC
    • Destination MAC
    • VLAN ID
    • User Priority
    • Ether Type
  • IP ACL
    • -Source IP
    • Destination IP
    • Fragment
    • IP Protocol
    • TCP Flag
    • TCP/UDP Port
    • DSCP/IP TOS
    • User Priority
  • Combined ACL
  • Packet Content ACL
  • IPv6 ACL
  • Policy
    • Mirroring
    • Redirect
    • Rate Limit
    • QoS Remark
  • ACL apply to Port/VLAN
Security
  • IP-MAC-Port Binding
    • 512 Entries
    • DHCP Snooping
    • ARP Inspection
    • IPv4 Source Guard : 100 Entries
  • IPv6-MAC-Port Binding
    • 512 Entries
    • DHCPv6 Snooping
    • ND Detection
    • IPv6 Source Guard : 100 Entries
  • DoS Defend
  • Static/Dynamic Port Security
    • Up to 64 MAC addresses per port
  • Broadcast/Multicast/Unicast Storm Control
    • kbps/ratio control mode
  • 802.1X
    • Port base authentication
    • Mac base authentication
    • VLAN Assignment
    • MAB
    • Guest VLAN
    • Support Radius authentication andaccountability
  • AAA (including TACACS+)
  • Port Isolation
  • Secure web management through HTTPS with SSLv3/TLS 1.2
  • Secure Command Line Interface (CLI) management with SSHv1/SSHv2
  • IP/Port/MAC based access control
IPv6
  • IPv6 Dual IPv4/IPv6
  • Multicast Listener Discovery (MLD) Snooping
  • IPv6 ACL
  • IPv6 Interface
  • Static IPv6 Routing
  • IPv6 neighbor discovery (ND)
  • Path maximum transmission unit (MTU) discovery
  • Internet Control Message Protocol (ICMP) version 6
  • TCPv6/UDPv6
  • IPv6 applications
    • DHCPv6 Client
    • Ping6
    • Tracert6
    • Telnet (v6)
    • IPv6 SNMP
    • IPv6 SSH
    • IPv6 SSL
    • Http/Https
    • IPv6 TFTP
L3 Features
  • 16 IPv4/IPv6 Interfaces
  • Static Routing
    • 48 static routes
  • Static ARP
    • 128 Static Entries
  • Proxy ARP
  • Gratuitous ARP
  • DHCP Server
  • DHCP Relay
    • DHCP Interface Relay
    • DHCP VLAN Relay
  • DHCP L2 Relay
Management
  • Web-based GUI
  • Command Line Interface (CLI) through the console port, telnet
  • SNMP v1/v2c/v3
    • Trap/Inform
    • RMON (1,2,3,9 groups)
  • SDM Template
  • DHCP/BOOTP Client
  • 802.1ab LLDP/LLDP-MED
  • DHCP AutoInstall
  • Dual Image, Dual Configuration
  • CPU Monitoring
  • Cable Diagnostics
  • EEE
  • Password Recovery
  • SNTP
  • System Log
Advanced Features
  • Support Omada Hardware Controller (OC200/OC300), Software Controller, Cloud-Based Controller
  • Automatic Device Discovery
  • Batch Configuration
  • Batch Firmware Upgrading
  • Intelligent Network Monitoring
  • Abnormal Event Warnings
  • Unified Configuration
  • Reboot Schedule
  • ZTP (Zero-Touch Provisioning)**
MIBs
  • MIB II (RFC1213)
  • Interface MIB (RFC2233)
  • Ethernet Interface MIB (RFC1643)
  • Bridge MIB (RFC1493)
  • P/Q-Bridge MIB (RFC2674)
  • RMON MIB (RFC2819)
  • RMON2 MIB (RFC2021)
  • Radius Accounting Client MIB (RFC2620)
  • Radius Authentication Client MIB (RFC2618)
  • Remote Ping, Traceroute MIB (RFC2925)
  • Support TP-Link private MIB
MANAGEMENT
Omada App Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management
  • Omada Cloud-Based Controller
  • Omada Hardware Controller (OC300)
  • Omada Hardware Controller (OC200)
  • Omada Software Controller
Cloud Access Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features
  • Web-based GUI
  • Command Line Interface (CLI) through the console port, telnet
  • SNMP v1/v2c/v3
    • Trap/Inform
    • RMON (1,2,3,9 groups)
  • SDM Template
  • DHCP/BOOTP Client
  • 802.1ab LLDP/LLDP-MED
  • DHCP AutoInstall
  • Dual Image, Dual Configuration
  • CPU Monitoring
  • Cable Diagnostics
  • EEE
  • Password Recovery
  • SNTP
  • System Log
OTHERS
Certification CE, FCC, RoHS
Package Contents
  • TL-SG3210XHPM2 Switch
  • Power Cord
  • Quick Installation Guide
  • Rackmount Kit
  • Rubber Feet
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/10/11, MAC OS, NetWare, UNIX or Linux.
Environment
  • Operating Temperature : 0–50 ℃ (32–122 ℉);
  • Storage Temperature : -40–70 ℃ (-40–158 ℉)
  • Operating Humidity : 10–90% RH non-condensing
  • Storage Humidity : 5–90% RH non-condensing
