Description

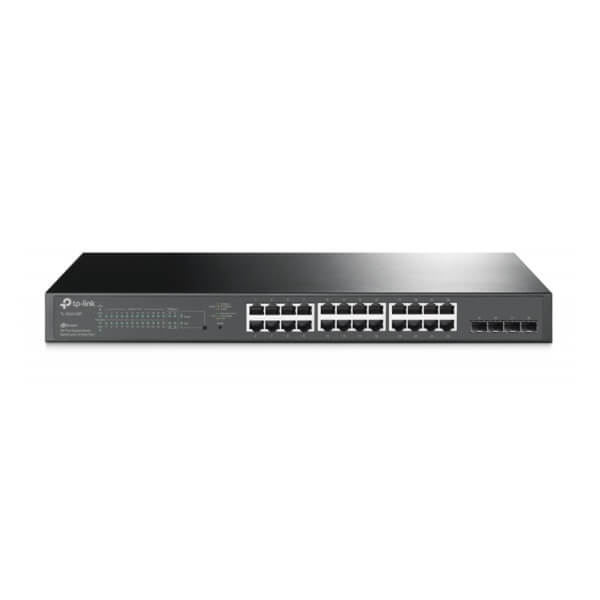

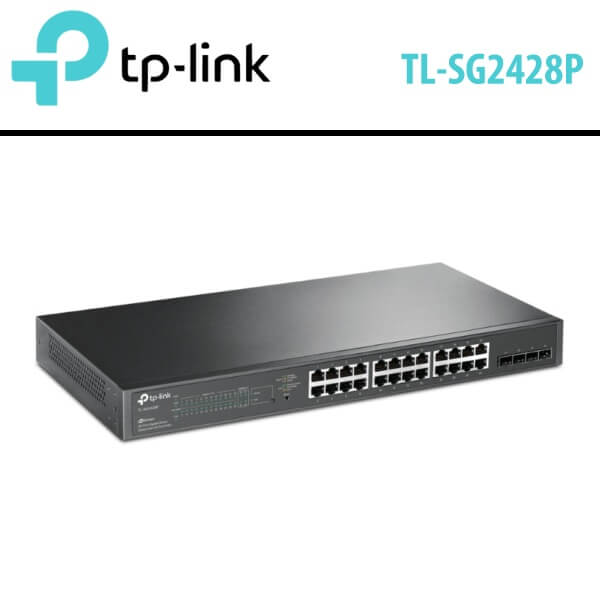

Tplink TL-SG2428P Network Switch Nigeria
Tplink TL-SG2428P Nigeria Smart Switch expands your office or business network capacity to handle a multitude of devices 24-Port PoE+ Compliant Gigabit Managed Switch from TP-Link. This managed rack-mountable switch features 24 PoE+ compliant Gigabit Ethernet ports with a power budget of 250W to operate compatible devices such as IP security cameras, VoIP phones, wireless access points, and more. There are also four Gigabit SFP ports for high-speed fiber uplinks.
With its 56 Gb/s switching capacity and 41.7 Mpps forwarding rate, Tplink TL-SG2428P Nigeria provides smooth data transfers. The broad range of Layer 2 features allows you to configure and manage your network to best suit your business’s needs. A host of security features includes an Access Control List (ACL), Storm Control, and DHCP Snooping to help defend your network against threats. Use the Omada Software Defined Networking platform to manage your connected network devices remotely with the Omada app.
Features
- 250 W PoE Budget: 24× 802.3at/af-compliant PoE+ ports with a total power supply of 250 W*.
- Full Gigabit Ports: 24× gigabit PoE+ ports and 4× gigabit SFP Slots provide high-speed connections.
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra-convenience and easy management.
- Static Routing: Helps route internal traffic for more efficient use of network resources.
- Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
- Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
- IPv6: IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery.
- Software Defined Networking (SDN) with Cloud Access
Centralized Management
The Omada Software Defined Networking (SDN) platform integrates access points, switches, gateways, and other network devices to provide high efficiency, security, and reliability. Configure, manage, and monitor your network using a single interface, from almost anywhere in the world, through the cloud portal interface and Omada smartphone and tablet app.
Security Features
Protect your network from attacks and intrusions with IP-MAC-Port Binding, Access Control List, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
Tplink TL-SG2428P Nigeria Advanced Features
- Automatic Device Discovery
- Batch Configuration
- Batch Firmware Upgrading
- Intelligent Network Monitoring
- Abnormal Event Warnings
- Unified Configuration
- Reboot Schedule
Specifications
HARDWARE FEATURES |
Standards and Protocols |
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x |
Interface |
- 24× 10/100/1000 Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
- 4× Gigabit SFP Slots
|
Network Media |
- 10BASE-T : UTP category 3, 4, 5 cable (maximum 100m)
- 100BASE-TX/1000Base-T : UTP category 5, 5e or above cable (maximum 100m)
- 1000BASE-X : MMF, SMF
|
Fan Quantity |
2 |
Power Supply |
100-240V AC, 50/60Hz |
PoE+ Ports(RJ45) |
- Standard : 802.3at/af compliant
- PoE+ Ports : 24 Ports
- Power Supply : 250 W
|
PoE Ports (RJ45) |
- Standard : 802.3at/af compliant
- PoE+ Ports : 24 Ports
- PoE Power Budget : 250 W*
|
Dimensions ( W x D x H ) |
17.3 × 8.7 × 1.73 in
(440 × 220 × 44 mm) |
Mounting |
19″ 1U rack mountable |
Max Power Consumption |
- 32.1 W (with no power device connected)
- 308.6 W (with 250W power device connected)
|
Max Heat Dissipation |
- 109.5 BTU/h (with no PD connected)
- 1,052.9 BTU/h (with 250 W PD connected)
|
PERFORMANCE |
Switching Capacity |
56 Gbps |
Bandwidth/Backplane |
56 Gbps |
Packet Forwarding Rate |
41.7 Mpps |
MAC Address Table |
8K |
Packet Buffer Memory |
4.1 Mbit |
Jumbo Frame |
9 KB |
SOFTWARE FEATURES |
Quality of Service |
- 802.1p CoS/DSCP priority
- 8 priority queues
- Priority Schedule Mode
- SP (Strict Priority)
- WRR (Weighted Round Robin)
- Queue Weight Config
- Bandwidth Control
- Port/Flow based Rating Limit
- Smoother Performance
- Storm Control
- Multiple Control Modes(kbps/ratio)
- Broadcast/Multicast/Unknown-Unicast Control
|
L2 and L2+ Features |
- 16 IP Interfaces
- Support IPv4/IPv6 Interface
- Static Routing
- 32 IPv4/IPv6 Static Routes
- DHCP Server
- DHCP Relay
- DHCP Interface Relay
- DHCP VLAN Relay
- DHCP L2 Relay
- Static ARP
- Proxy ARP
- Gratuitous ARP
- Link Aggregation
- Static link aggregation
- 802.3ad LACP
- Up to 8 aggregation groups and up to 8 ports
- per group
- Spanning Tree Protocol
- 802.1D STP
- 802.1w RSTP
- 802.1s MSTP
- STP Security : TC Protect, BPDU Filter/Protect,
- Root Protect
- Loopback Detection
- Flow Control
- 802.3x Flow Control
- Mirroring
- Port Mirroring
- CPU Mirroring
- One-to-One
- Many-to-One
- Flow-Based
- Ingress/Egress/Both
- Device Link Detect Protocol (DLDP)
- 802.1ab LLDP/ LLDP-MED
|
VLAN |
- VLAN Group
- Max. 4K VLAN Groups
- 802.1Q tag VLAN
- MAC VLAN
- Protocol VLAN
- GVRP
- Voice VLAN
|
Access Control List |
- Support up to 230 entries
- Time-Range
- Time Slice
- Week Time-Range
- Absolute Time-Range
- Holiday
- Time-based ACL
- MAC ACL
- Source MAC
- Destination MAC
- VLAN ID
- User Priority
- Ether Type
- IP ACL
- Source IP
- Destination IP
- IP Protocol
- TCP Flag
- TCP/UDP Source Port
- TCP/UDP Destination Port
- DSCP/IP TOS
- IPv6 ACL
- Combined ACL
- Rule Operation
- Policy Action
- Mirror
- Rate Limit
- Redirect
- QoS Remark
- ACL Rules Binding
- Port Binding
- VLAN Binding
- Actions for flows
- Mirror (to supported interface)
- Redirect (to supported interface)
- Rate Limit
- QoS Remark
|
Security |
- AAA
- 802.1X
- Port based authentication
- MAC (Host) based authentication
- Authentication Method includes PAP/EAP-MD5
- MAB
- Guest VLAN
- Support Radius authentication and
- accountability
- IP/IPv6-MAC Binding
- 512 Binding Entries
- DHCP Snooping
- DHCPv6 Snooping
- ARP Inspection
- ND Detection
- IP Source Guard
- 253 Entries
- Source IP+Source MAC
- IPv6 Source Guard
- 183 Entries
- Source IPv6 Address+Source MAC
- DoS Defend
- Static/Dynamic/Permanent Port Security
- Up to 64 MAC addresses per port
- Broadcast/Multicast/Unicast Storm Control
- Port Isolation
- Secure web management through HTTPS with
- SSLv3/TLS 1.2
- Secure Command Line Interface (CLI)
- management with SSHv1/SSHv2
- IP/Port/MAC based access control
|
IPv6 |
- IPv6 Static Routing and ACL
- IPv6 Dual IPv4/IPv6
- IPv6 Interface
- Multicast Listener Discovery (MLD) Snooping
- IPv6 neighbor discovery (ND)
- Path maximum transmission unit (MTU) discovery
- Internet Control Message Protocol (ICMP)
- version 6
- TCPv6/UDPv6
- IPv6 applications
- DHCPv6 Client
- Ping6
- Tracert6
- Telnet(v6)
- IPv6 SNMP
- IPv6 SSH
- IPv6 SSL
- Http/Https
- IPv6 TFTP
|
Advanced Features |
- Automatic Device Discovery
- Batch Configuration
- Batch Firmware Upgrading
- Intelligent Network Monitoring
- Abnormal Event Warnings
- Unified Configuration
- Reboot Schedule
|
MIBs |
- MIB II (RFC1213)
- Bridge MIB (RFC1493)
- P/Q-Bridge MIB (RFC2674)
- Radius Accounting Client MIB (RFC2620)
- Radius Authentication Client MIB (RFC2618)
- Remote Ping, Traceroute MIB (RFC2925)
- Support TP-Link private MIBs
- RMON MIB(RFC1757, rmon 1,2,3,9)
|
MANAGEMENT |
Omada App |
Yes, through
- Omada Cloud-Based Controller (Not Supported by TL-SG2210P v4)
- OC300
- OC200
- Omada Software Controller
|
Centralized Management |
- Omada Cloud-Based Controller (Not Supported by TL-SG2210P v4)
- Omada Hardware Controller OC300
- Omada Hardware Controller OC200
- Omada Software Controller
|
Cloud Access |
Yes, through
- Omada Cloud-Based Controller (Not Supported by TL-SG2210P v4)
- OC300
- OC200
- Omada Software Controller
|
Zero-Touch Provisioning |
Yes. Requiring the use of Omada Cloud-Based Controller (Supported by TL-SG2210P v3.2, v5 and above, while is not supported by TL-SG2210P v4) |
Management Features |
- Web-based GUI
- Command Line Interface (CLI) through telnet
- SNMPv1/v2c/v3
- SNMP Trap/Inform
- RMON (1,2,3,9 groups)
- SDM Template
- DHCP/BOOTP Client
- Dual Image, Dual Configuration
- CPU Monitoring
- Cable Diagnostics
- EEE
- SNTP
- System Log
|
OTHERS |
Certification |
CE, FCC, RoHS |
Package Contents |
- TL-SG2428P
- Power Cord
- Installation Guide
- Rackmount Kit
- Rubber Feet
|
System Requirements |
Microsoft Windows XP, Vista or Windows 7, Windows 8, Windows 10, MAC OS, NetWare, UNIX or Linux. |
Environment |
- Operating Temperature : 0–50 ℃ (32–122 ℉);
- Storage Temperature : -40–70 ℃ (-40–158 ℉)
- Operating Humidity : 10–90% RH non-condensing
- Storage Humidity : 5–90% RH non-condensing
|
