Tplink TL-SG2210P Nigeria

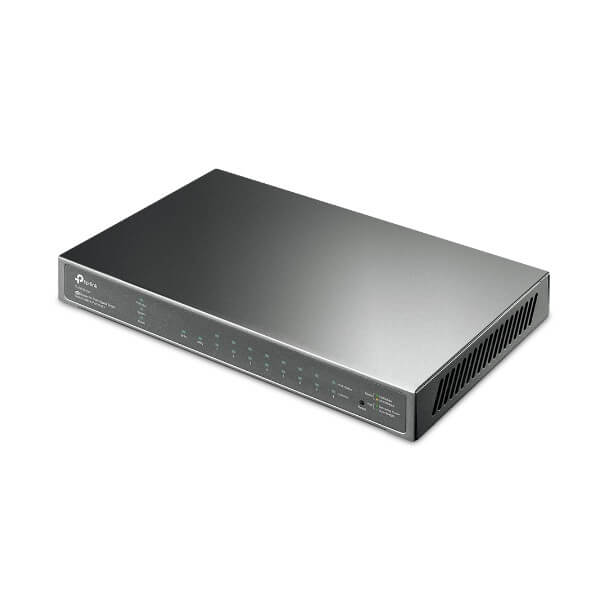

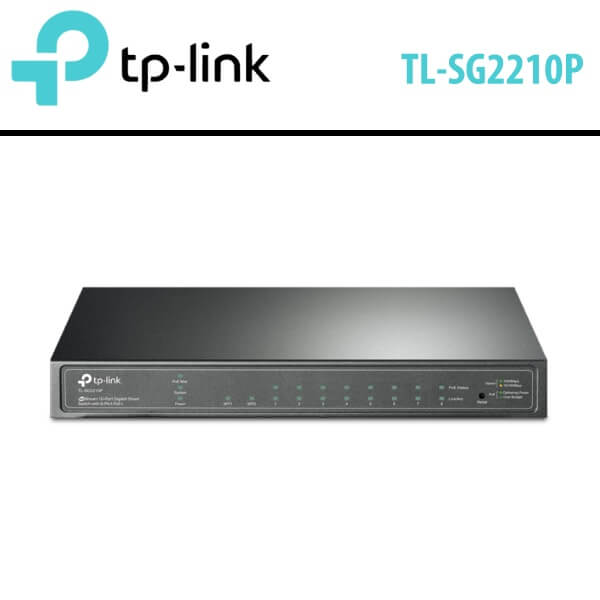

Tplink TL-SG2210P Nigeria is equipped with 8 gigabit RJ45 ports and 2 SFP slots, all RJ45 Ports support IEEE 802.3af/at with total PoE power budget of 58W* and useful PoE power management features.

Description

Tplink TL-SG2210P Network Switch Nigeria

Tplink TL-SG2210P Nigeria is equipped with 8 gigabit RJ45 ports and 2 SFP slots, all RJ45 Ports support IEEE 802.3af/at with total PoE power budget of 58W* and useful PoE power management features. The switch provides high performance, enterprise-level QoS, useful security strategies and rich layer 2 management features. TP Tplink TL-SG2210P Nigeria Gigabit Smart Switch is specially designed for the small and medium business networks that require efficient network management.

 Tplink TL-SG2210P Nigeria comes with a comprehensive set of features, such as Link Aggregation Group, 802.1Q VLAN, Access Control Lists (ACL), Quality of Service (QoS L2 to L4), Storm Control and IGMP Snooping to provide a small or medium-sized business with a network that is geared for growth while ensuring performance and reliability. What’s more, its easy-to-use web management interface means faster setup and configuration with less downtime, providing the ideal solution for your business network.

Features

  • 61 W PoE Budget: 8× 802.3af/at-compliant PoE+ ports with a total power supply of 61 W.
  • Full Gigabit Ports: 8× gigabit PoE+ ports and 2× gigabit SFP Slots provide high-speed connections.
  • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
  • Centralized Management: Cloud access and Omada app for ultra-convenience and easy management.
  • Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, Radius Authentication, and more.
  • Optimized Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
  • Versatile Management: WEB/CLI managed modes, SNMP, and RMON bring abundant management features.

Software Defined Networking (SDN) with Cloud Access

Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

IEEE 802.3af-compliant Power over Ethernet

The TL-SG2210P supports 8 ports of IEEE 802.3af-compliant PoE and has a total power supply of 53W to power any 802.3af compliant power device. It’s an efficient and cost-effective choice to work with wireless access points, surveillance cameras, IP phones and other PoE supported devices, while getting rid of cables or power lines running around. Compact and flexible, the TL-SG2210P is ideal to flexibly use PoE to deploy wireless access points or IP-based network surveillance cameras for projects or small business networks.

Advanced QoS Features

To integrate voice, data and video service on one network, Tplink TL-SG2210P Nigeria switch applies rich QoS policies. Administrator can designate the priority of the traffic based on a variety of means including Port Priority, 802.1P Priority and DSCP Priority, to ensure that voice and video are always clear, smooth and jitter free.In conjunction with the Voice VLAN the switch supports, the voice applications will operate with much smoother performance.

Abundant Layer 2 Features

For more application of layer 2 switches, Tplink TL-SG2210P Nigeria supports a complete lineup of layer 2 features, including 802.1Q tag VLAN, Port Isolation, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol and 802.3x Flow Control function. Any more, the switches provide advanced features for network maintenance such as Loop Back Detection, Cable Diagnostics and IGMP Snooping. IGMP Snooping ensures the switch intelligently forward the multicast stream only to the appropriate subscribers while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access.

Enterprise Level Management Features

Tplink TL-SG2210P Nigeria Smart Switch is easy to use and manage. It supports various user-friendly standard management features, such as intuitive web-based Graphical User Interface(GUI) or industry-standard Command Line Interface(CLI). SNMP (v1/2/3) and RMON support enables the switch to be polled for valuable status information and send traps on abnormal events.

Specifications

HARDWARE FEATURES
Standards and Protocols
  • IEEE 802.3i, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab,
  • IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s,
  • IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
Interface

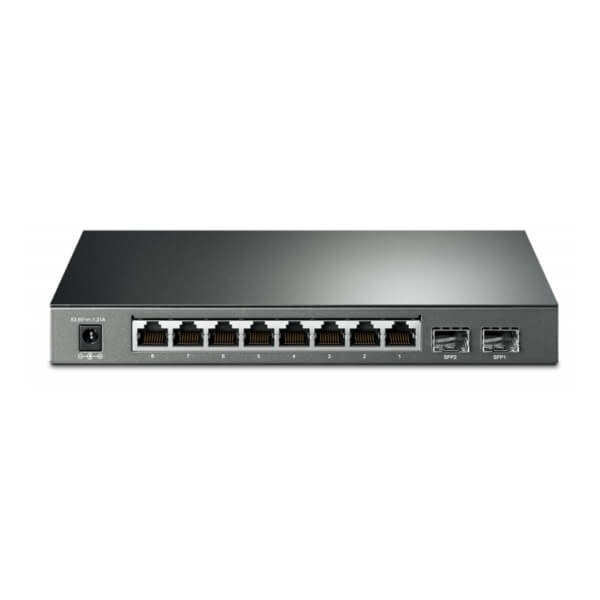

  • 8 10/100/1000Mbps RJ45 Ports
  • 2 1000Mbps SFP Slots (Auto-Negotiation/Auto MDI/MDIX)
Network Media
  • 10BASE-T : UTP category 3, 4, 5 cable (maximum 100m)
  • 100BASE-TX/1000Base-T : UTP category 5, 5e or above cable (maximum 100m)
  • 1000BASE-X : MMF, SMF
Fan Quantity Fanless
Power Supply
  • 100~240VAC, 50/60Hz
  • External Power Adapter(Output : 54VDC/1.3A)
Power Consumption
  • 10.3W (without POE device connected)
  • 76.5W (with 61W POE devices connected)
PoE Ports (RJ45)
  • Standard : 802.3af/at compliant
  • PoE Ports : 8 Ports
  • Power Supply : 61 W*
Dimensions ( W x D x H ) 8.2 x 4.9 x 1.0 in.
(209 x 126 x 26mm)
Mounting Desktop / Wall-Mounting
Max Power Consumption
  • V3.2 : 76.5 W (220 V/50 Hz) (with 61 W PD connected); 10.3 W (220 V/50 Hz) (no PD connected)
  • V4 : 74.4 W (220 V/50 Hz) (with 61 W PD connected)
  • V5 : 77.8 W (110 V/60 Hz) (with 61 W PD connected)
Max Heat Dissipation
  • V3.2 : 261.02 BTU/hr (220 V/50 Hz) (with 61 W PD connected); 35.14 BTU/hr (220 V/50 Hz) (no PD connected)
  • V4 : 253.89 BTU/hr (220 V/50 Hz) (with 61 W PD connected)
  • V5 : 265.3 BTU/hr (110 V/60 Hz) (with 61 W PD connected)
PERFORMANCE
Switching Capacity 20 Gbps
Bandwidth/Backplane 20 Gbps
Packet Forwarding Rate 14.88 Mpps
MAC Address Table 8K
Packet Buffer Memory 4.1 Mbit
Jumbo Frame 9 KB
SOFTWARE FEATURES
Quality of Service
  • 802.1p CoS/DSCP priority
  • 8 priority queues
  • Priority Schedule Mode
    • SP (Strict Priority)
    • WRR (Weighted Round Robin)
  • Queue Weight Config
  • Bandwidth Control
    • Port/Flow based Rating Limit
  • Smoother Performance
  • Storm Control
    • Multiple Control Modes(kbps/ratio)
    • Broadcast/Multicast/Unknown-Unicast Control
L2 and L2+ Features
  • 16 IP Interfaces
    • Support IPv4/IPv6 Interface
  • Static Routing
    • 32 IPv4/IPv6 Static Routes
  • DHCP Server
  • DHCP Relay
    • DHCP Interface Relay
    • DHCP VLAN Relay
  • DHCP L2 Relay
  • Static ARP
  • Proxy ARP
  • Gratuitous ARP
  • Link Aggregation
    • Static link aggregation
    • 802.3ad LACP
    • Up to 8 aggregation groups and up to 8 ports
  • per group
  • Spanning Tree Protocol
    • 802.1D STP
    • 802.1w RSTP
    • 802.1s MSTP
    • STP Security : TC Protect, BPDU Filter/Protect,
  • Root Protect
  • Loopback Detection
  • Flow Control
    • 802.3x Flow Control
  • Mirroring
    • Port Mirroring
    • CPU Mirroring
    • One-to-One
    • Many-to-One
    • Flow-Based
    • Ingress/Egress/Both
  • Device Link Detect Protocol (DLDP)
  • 802.1ab LLDP/ LLDP-MED
VLAN
  • VLAN Group
    • Max. 4K VLAN Groups
  • 802.1Q tag VLAN
  • MAC VLAN
  • Protocol VLAN
  • GVRP
  • Voice VLAN
Access Control List
  • Support up to 230 entries
  • Time-Range
    • Time Slice
    • Week Time-Range
    • Absolute Time-Range
    • Holiday
  • Time-based ACL
  • MAC ACL
    • Source MAC
    • Destination MAC
    • VLAN ID
    • User Priority
    • Ether Type
  • IP ACL
    • Source IP
    • Destination IP
    • IP Protocol
    • TCP Flag
    • TCP/UDP Source Port
    • TCP/UDP Destination Port
    • DSCP/IP TOS
  • IPv6 ACL
  • Combined ACL
  • Rule Operation
    • Permit/Deny
  • Policy Action
  • Mirror
    • Rate Limit
    • Redirect
    • QoS Remark
  • ACL Rules Binding
    • Port Binding
    • VLAN Binding
  • Actions for flows
    • Mirror (to supported interface)
    • Redirect (to supported interface)
    • Rate Limit
    • QoS Remark
Security
  • AAA
  • 802.1X
    • Port based authentication
    • MAC (Host) based authentication
    • Authentication Method includes PAP/EAP-MD5
    • MAB
    • Guest VLAN
    • Support Radius authentication and
  • accountability
  • IP/IPv6-MAC Binding
    • 512 Binding Entries
    • DHCP Snooping
    • DHCPv6 Snooping
    • ARP Inspection
    • ND Detection
  • IP Source Guard
    • 253 Entries
    • Source IP+Source MAC
    • IPv6 Source Guard
    • 183 Entries
    • Source IPv6 Address+Source MAC
  • DoS Defend
  • Static/Dynamic/Permanent Port Security
    • Up to 64 MAC addresses per port
  • Broadcast/Multicast/Unicast Storm Control
    • kbps/ratio control mode
  • Port Isolation
  • Secure web management through HTTPS with SSLv3/TLS 1.2
  • Secure Command Line Interface (CLI)
  • management with SSHv1/SSHv2
  • IP/Port/MAC based access control
IPv6
  • IPv6 Static Routing and ACL
  • IPv6 Dual IPv4/IPv6
  • IPv6 Interface
  • Multicast Listener Discovery (MLD) Snooping
  • IPv6 neighbor discovery (ND)
  • Path maximum transmission unit (MTU) discovery
  • Internet Control Message Protocol (ICMP)
  • version 6
  • TCPv6/UDPv6
  • IPv6 applications
  • DHCPv6 Client
  • Ping6
  • Tracert6
  • Telnet(v6)
  • IPv6 SNMP
  • IPv6 SSH
  • IPv6 SSL
  • Http/Https
  • IPv6 TFTP
Management
  • Web-based GUI
  • Command Line Interface (CLI) through telnet
  • SNMPv1/v2c/v3
  • SNMP Trap/Inform
  • RMON (1,2,3,9 groups)
  • SDM Template
  • DHCP/BOOTP Client
  • Dual Image, Dual Configuration
  • CPU Monitoring
  • Cable Diagnostics
  • EEE
  • SNTP
  • System Log
Advanced Features
  • Automatic Device Discovery
  • Batch Configuration
  • Batch Firmware Upgrading
  • Intelligent Network Monitoring
  • Abnormal Event Warnings
  • Unified Configuration
  • Reboot Schedule
MIBs
  • MIB II (RFC1213)
  • Bridge MIB (RFC1493)
  • P/Q-Bridge MIB (RFC2674)
  • Radius Accounting Client MIB (RFC2620)
  • Radius Authentication Client MIB (RFC2618)
  • Remote Ping, Traceroute MIB (RFC2925)
  • Support TP-Link private MIBs
  • RMON MIB(RFC1757, rmon 1,2,3,9)
MANAGEMENT
Omada App Yes, through

  • Omada Cloud-Based Controller (Not Supported by TL-SG2210P v4)
  • OC300
  • OC200
  • Omada Software Controller
Centralized Management
  • Omada Cloud-Based Controller (Not Supported by TL-SG2210P v4)
  • Omada Hardware Controller OC300
  • Omada Hardware Controller OC200
  • Omada Software Controller
Cloud Access Yes, through

  • Omada Cloud-Based Controller (Not Supported by TL-SG2210P v4)
  • OC300
  • OC200
  • Omada Software Controller
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller (Supported by TL-SG2210P v3.2, v5 and above, while is not supported by TL-SG2210P v4)
Management Features
  • Web-based GUI
  • Command Line Interface (CLI) through telnet
  • SNMPv1/v2c/v3
  • SNMP Trap/Inform
  • RMON (1,2,3,9 groups)
  • SDM Template
  • DHCP/BOOTP Client
  • Dual Image, Dual Configuration
  • CPU Monitoring
  • Cable Diagnostics
  • EEE
  • SNTP
  • System Log
OTHERS
Certification CE, FCC, RoHS
Package Contents
  • TL-SG2210P
  • Power Adapter
  • Installation Guide
  • Rubber Feet
Environment
  • Operating Temperature : 0℃~40℃ (32℉~104℉);
  • Storage Temperature : -40℃~70℃ (-40℉~158℉)
  • Operating Humidity : 10%~90% non-condensing
  • Storage Humidity : 5%~90% non-condensing
