Description

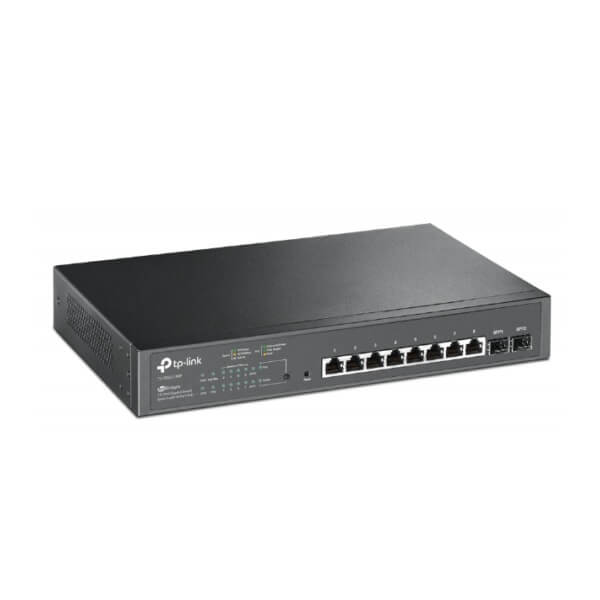

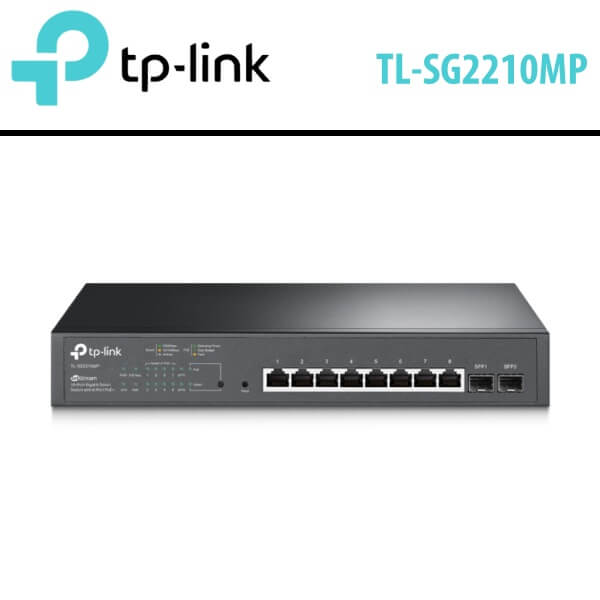

Tplink TL-SG2210MP Network Switch Nigeria
Tplink TL-SG2210MP Nigeria PoE Switch is a manageable L2 switch with PoE functionality, containing 8 Gigabit LAN ports with 802.3af/at PoE support and an additional 2 Gigabit SFP ports. The switch has a total PoE budget 150W for all devices powering (Access Points, VoIP, IP cameras) over cable. Switch can be mounted in a 19″ rack and 1 fan from the side take care of cooling. Tplink TL-SG2210MP Nigeria 10-Port Gigabit Smart Switch with 8-Port PoE+ 150W | 8 802.3af/at compliant PoE+ Ports | Omada SDN Platform Integration | Gigabit Ethernet Connections | IP-MAC-Port Binding | ACL | Port Security | DoS Defend | Storm Control | DHCP Snooping | 802.1X | Radius Authentication | IGMP Snoopin | WEB/CLI Managed Modes
Features
- 150 W PoE Budget: 8× 802.3at/af-compliant PoE+ ports with a total power supply of 150 W*.
- Full Gigabit Ports: 8× gigabit PoE+ ports and 2× gigabit SFP Slots provide high-speed connections.
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra-convenience and easy management.
- Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, Radius Authentication, and more.
- Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
Software Defined Networking (SDN) with Cloud Access
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
Centralized Management
The Omada Software Defined Networking (SDN) platform integrates access points, switches, gateways, and other network devices to provide high efficiency, security, and reliability. This switch works with the Omada cloud-based controller, the Omada OC300 and OC200 hardware controller, and the Omada Software controller.
Omada App
Configure, manage, and monitor your network devices from almost anywhere in the world using your smartphone or tablet.
Security Features
Tplink TL-SG2210MP Nigeria protect your network from attacks and intrusions with IP-MAC-Port Binding, Access Control List, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
Quiet Operation
Tplink TL-SG2210MP Nigeria switch uses a single fan to help maintain optimal temperature and performance.
Tplink TL-SG2210MP Nigeria has Layer 2 Features
- DHCP VLAN Relay
- DHCP L2 Relay
- Link Aggregation – up to 8 aggregation groups and up to 8 ports per group
- Spanning Tree Protocol (802.1D STP, 802.1w RSTP, 802.1s MSTP); STP Security (TC Protect, BPDU Filter/Protect)
- Loopback Detection
- 3x Flow Control
- Mirroring: Port, CPU, One-to-One, Many-to-One, Flow-based, Ingress/Egress/Both
- Device Link Detect Protocol (DLDP)
- 1ab LLDP/ LLDP-MED
Specifications
HARDWARE FEATURES |
Standards and Protocols |
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p |
Interface |
- 8× 10/100/1000 Mbps RJ45 Ports, all supporting PoE+ (Auto-Negotiation/Auto MDI/MDIX)
- 2× 100/1000 Mbps SFP Slots
|
Network Media |
- 10BASE-T : UTP/STP category 3, 4, 5 cable (maximum 100m)
- 100BASE-TX/1000Base-T : UTP/STP category 5, 5e or above cable (maximum 100m)
- 100BASE-FX : MMF, SMF
- 1000BASE-X : MMF, SMF
|
Fan Quantity |
1 |
Physical Security Lock |
Yes |

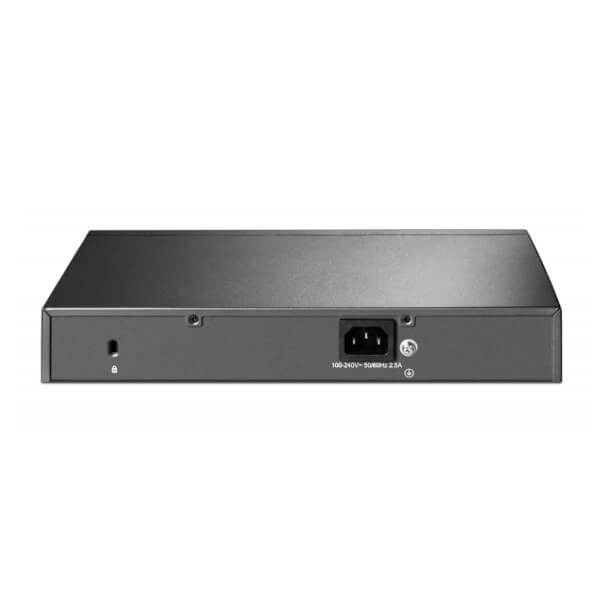

Power Supply |
100-240V AC, 50/60Hz |
PoE+ Ports(RJ45) |
- Standard : 802.3at/af compliant
- PoE+ Ports : 8 Ports
- Power Supply : 150 W
|
PoE Ports (RJ45) |
- Standard : 802.3at/af compliant
- PoE+ Ports : 8 Ports
- PoE Power Budget : 150 W*
|
Dimensions ( W x D x H ) |
11.6 x 7.1 x 1.7 in
(294 x 180 x 44 mm) |
Mounting |
Desktop,
13″ or 19″ 1U rack mountable |
Max Power Consumption |
- 12.2 W (110 V / 60 Hz with no PD connected)
- 173.9 W (110 V / 60 Hz with 150 W PD connected)
|
Max Heat Dissipation |
- 41.6 BTU/h (with no PD connected)
- 539.4 BTU/h (with 150 W PD connected)
|
PERFORMANCE |
Switching Capacity |
20 Gbps |
Packet Forwarding Rate |
14.9 Mpps |
MAC Address Table |
8K |
Packet Buffer Memory |
4.1 Mbit |
Jumbo Frame |
9 KB |
SOFTWARE FEATURES |
Quality of Service |
- 802.1p CoS/DSCP priority
- 8 priority queues
- Priority Schedule Mode
- SP (Strict Priority)
- WRR (Weighted Round Robin)
- Queue Weight Config
- Bandwidth Control
- Port/Flow based Rating Limit
- Smoother Performance
- Storm Control
- Multiple Control Modes(kbps/ratio)
- Broadcast/Multicast/Unknown-Unicast Control
|
L2 and L2+ Features |
- DHCP Relay
- DHCP L2 Relay
- Link Aggregation
- Static link aggregation
- 802.3ad LACP
- Up to 8 aggregation groups and up to 8 ports
- per group
- Spanning Tree Protocol
- 802.1D STP
- 802.1w RSTP
- 802.1s MSTP
- STP Security : TC Protect, BPDU Filter/Protect,
- Root Protect
- Loopback Detection
- Flow Control
- Mirroring
- Port Mirroring
- CPU Mirroring
- One-to-One
- Many-to-One
- Flow-Based
- Ingress/Egress/Both
- Device Link Detect Protocol (DLDP)
- 802.1ab LLDP/ LLDP-MED
|
L2 Multicast |
- IPv4, IPv6 shared multicast groups (511 groups max.)
- IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
- IGMP Snooping Querier
- Static Group Config
- Multicast VLAN Registration (MVR)
- Multicast Filtering
- MLD Snooping
- MLD v1/v2 Snooping
- Fast Leave
- MLD Snooping Querier
- Static Group Config
- Limited IP Multicast (256 profiles and 16 entries per profile)
|
IPv6 Support |
- IPv6 Dual IPv4/IPv6
- Multicast Listener Discovery (MLD) Snooping
- IPv6 neighbor discovery (ND)
- Path maximum transmission unit (MTU) discovery
- Internet Control Message Protocol (ICMP)
- version 6
- TCPv6/UDPv6
- IPv6 applications
- DHCPv6 Client
- Ping6
- Tracert6
- Telnet (v6)
- IPv6 SNMP
- IPv6 SSH
- IPv6 SSL
- Http/Https
- IPv6 TFTP
|
VLAN |
- VLAN Group
- 802.1Q tag VLAN
- MAC VLAN
- Protocol VLAN
- GVRP
- Voice VLAN
|
Access Control List |
- Support up to 230 entries
- Time-Range
- Time Slice
- Week Time-Range
- Absolute Time-Range
- Holiday
- Time-based ACL
- MAC ACL
- Source MAC
- Destination MAC
- VLAN ID
- User Priority
- Ether Type
- IP ACL
- Source IP
- Destination IP
- IP Protocol
- TCP Flag
- TCP/UDP Source Port
- TCP/UDP Destination Port
- DSCP/IP TOS
- IPv6 ACL
- Combined ACL
- Rule Operation
- Policy Action
- Mirror
- Rate Limit
- Redirect
- QoS Remark
- ACL Rules Binding
- Port Binding
- VLAN Binding
- Actions for flows
- Mirror (to supported interface)
- Redirect (to supported interface)
- Rate Limit
- QoS Remark
|
Security |
- AAA
- 802.1X
- Port based authentication
- MAC (Host) based authentication
- Authentication Method includes PAP/EAP-MD5
- MAB
- Guest VLAN
- Support Radius authentication and
- accountability
- IP/IPv6-MAC Binding
- 512 Binding Entries
- DHCP Snooping
- DHCPv6 Snooping
- ARP Inspection
- ND Detection
- IP Source Guard
- 253 Entries
- Source IP+Source MAC
- IPv6 Source Guard
- 183 Entries
- Source IPv6 Address+Source MAC
- DoS Defend
- Static/Dynamic/Permanent Port Security
- Up to 64 MAC addresses per port
- Broadcast/Multicast/Unicast Storm Control
- Port Isolation
- Secure web management through HTTPS with
- SSLv3/TLS 1.2
- Secure Command Line Interface (CLI)
- management with SSHv1/SSHv2
- IP/Port/MAC based access control
|
IPv6 |
- IPv6 Static Routing and ACL
- IPv6 Dual IPv4/IPv6
- IPv6 Interface
- Multicast Listener Discovery (MLD) Snooping
- IPv6 neighbor discovery (ND)
- Path maximum transmission unit (MTU) discovery
- Internet Control Message Protocol (ICMP)
- version 6
- TCPv6/UDPv6
- IPv6 applications
- DHCPv6 Client
- Ping6
- Tracert6
- Telnet(v6)
- IPv6 SNMP
- IPv6 SSH
- IPv6 SSL
- Http/Https
- IPv6 TFTP
|
Advanced Features |
- Automatic Device Discovery
- Batch Configuration
- Batch Firmware Upgrading
- Intelligent Network Monitoring
- Abnormal Event Warnings
- Unified Configuration
- Reboot Schedule
|
MIBs |
- MIB II (RFC1213)
- Bridge MIB (RFC1493)
- P/Q-Bridge MIB (RFC2674)
- Radius Accounting Client MIB (RFC2620)
- Radius Authentication Client MIB (RFC2618)
- Remote Ping, Traceroute MIB (RFC2925)
- Support TP-Link private MIBs
- RMON MIB(RFC1757, rmon 1,2,3,9)
|
MANAGEMENT |
Omada App |
Yes, through
- Omada Cloud-Based Controller (Not Supported by TL-SG2428P v2)
- OC300
- OC200
- Omada Software Controller
|
Centralized Management |
- Omada Cloud-Based Controller (Not Supported by TL-SG2210MP v2)
- Omada Hardware Controller OC300
- Omada Hardware Controller OC200
- Omada Software Controller
|
Cloud Access |
Yes, through
- Omada Cloud-Based Controller (Not Supported by TL-SG2210MP v2)
- OC300
- OC200
- Omada Software Controller
|
Zero-Touch Provisioning |
Yes. Requiring the use of Omada Cloud-Based Controller (Supported by TL-SG2210MP v1, v3 and above, while is not supported by TL-SG2210MP v2) |
Management Features |
- Web-based GUI
- Command Line Interface (CLI) through telnet
- SNMPv1/v2c/v3
- SNMP Trap/Inform
- RMON (1,2,3,9 groups)
- SDM Template
- DHCP/BOOTP Client
- Dual Image, Dual Configuration
- CPU Monitoring
- Cable Diagnostics
- EEE
- SNTP
- System Log
|
OTHERS |
Certification |
CE, FCC, RoHS |
Package Contents |
- TL-SG2210MP
- Power Cord
- Installation Guide
- Rackmount Kit
- Rubber Feet
|
Environment |
- Operating Temperature : 0–50 ℃ (32–122 ℉);
- Storage Temperature : -40–70 ℃ (-40–158 ℉)
- Operating Humidity : 10–90% RH non-condensing
- Storage Humidity : 5–90% RH non-condensing
|
