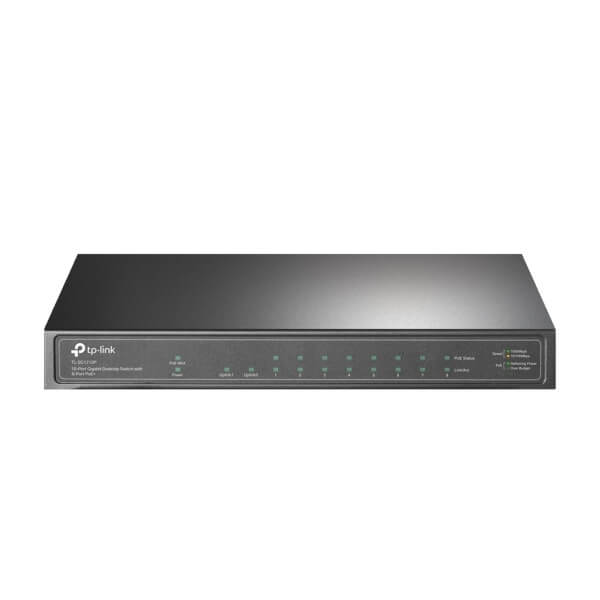

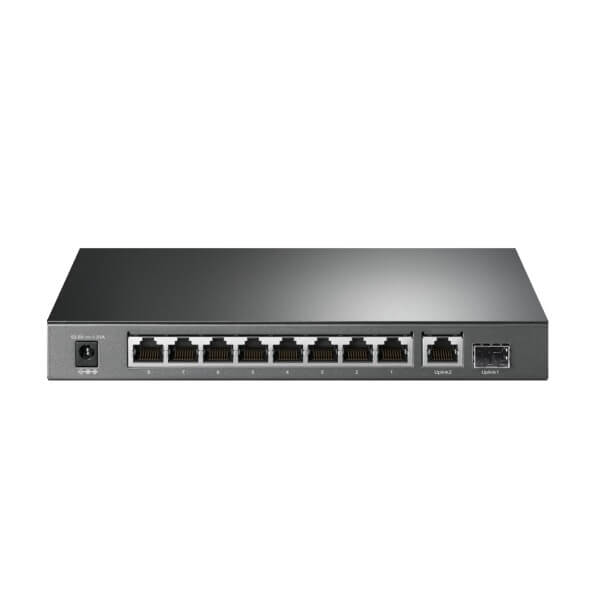

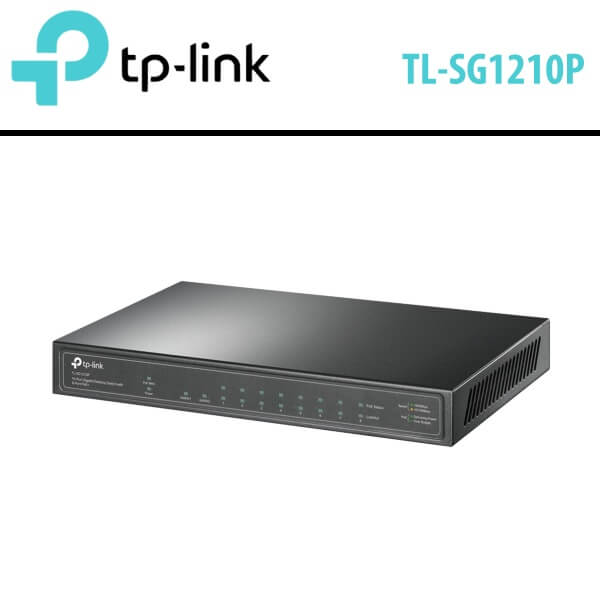

Tplink TL-SG1210P Nigeria

Rating

Tplink TL-SG1210P Nigeria

The Tplink TL-SG1210P Nigeria 10-Port Gigabit Desktop Switch is best for small and medium businesses that are looking for a reliable, easy-to-use, and affordable Gigabit Ethernet switch.

Description

Tplink TL-SG1210P Network Switch Nigeria

The Tplink TL-SG1210P Nigeria 10-Port Gigabit Desktop Switch is best for small and medium businesses that are looking for a reliable, easy-to-use, and affordable Gigabit Ethernet switch. This switch has 10 Gigabit Ethernet ports that can be used to connect to a variety of devices, including computers, printers, and storage devices. The Tplink TL-SG1210P Nigeria comes with a variety of features, like energy-saving technology, 802.3az Energy-Efficient Ethernet, and Green Power, making it an eco-friendly Gadget for your home or office. A powerful, compact and affordable network switch that is certified to meet the essential safety and quality requirements of the European Union (CE) and Federal Communications Commission (FCC) regulations.

Features

  • 9 10/100/1000Mbps RJ45 ports, 1 Gigabit SFP port
  • With 8 PoE+ ports, transfers data and power on one single cable
  • Works with IEEE 802.3af/at compliant PDs and expands office network
  • 1p/DSCP QoS enable smooth latency-sensitive traffic
  • High PoE power budget with up to 30W for each PoE port and 63W for all PoE ports
  • Easy to use, with no configuration and installation needed

Power over Ethernet

Tplink TL-SG1210P Nigeria comes with Port 1-8 of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af/at compliant Powered Devices (PDs).

Intelligent Power Management

When total power consumption excels 63W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.

Dedicated 8-Port PoE+ Switch for Wide Range of Applications with 63 W PoE Budget

Port 1-8 of the switch support Power over Ethernet (PoE) function. Tplink TL-SG1210P Nigeria provides a simple way to expand a wired network by transferring power and data over a single Ethernet cable. With a total power budget of 63W, up to 30W per port, TL-SG1210P has a wide range of applications, such as surveillance, conference calls, WiFi coverage. It is fully compatible with wireless Access Points (APs), IP-Caremas, and IP-Phones.

High Performance with Two Gigabit Uplink Ports

Dedicated 1x gigabit uplink RJ45 port and 1x gigabit SFP slot ensure smooth streaming. The two uplink ports can be used to connect the router/switch and NVR equipment.

Powered-Device Detection

Tplink TL-SG1210P Nigeria automatically detects and provides required power for your PoE devices, and protects your non-PoE equipment from being damaged.

Fluent Online Experience

Administrators can use QoS to designate the priority of traffic. For example, prioritize your cameras or IP-phones to ensure that voice and video applications remain clear and lag-free.

Traffic Optimization for IPTV

IGMP Snooping optimizes multimedia traffic delivery to ensure a better network experience especially for applications like IPTV

Specifications

HARDWARE FEATURES
Interface
  • 8 PoE+ 10/100/1000Mbps RJ45 Ports
  • 1 10/100/1000Mbps RJ45 Port
  • 1 Gigabit SFP Slot
Network Media
  • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 1000BASE-X MMF, SMF
Fan Quantity Fanless
Physical Security Lock Yes
Power Supply External Power Adapter(Output: 53.5VDC / 1.31A)
Packet Forwarding Rate 14.88 Mpps
PoE+ Ports(RJ45)
  • Standard: 802.3at/802.3af compliant
  • PoE Ports: Port1- Port 8
  • PoE Power Budget: 63W
Mac Address Table 4K
Jumbo Frame 16 KB
Switching Capacity 20 Gbps
Dimensions ( W x D x H ) 209 × 126 × 26 mm
Max Power Consumption
  • 7.11 W (220/50Hz. no PD connected)
  • 78.13 W (220/50Hz. with 63W PD connected)
Max Heat Dissipation
  • 24.25 BTU/h (no PD connected)
  • 266.42 BTU/h (with 63W PD connected)
SOFTWARE FEATURES
Advanced Features
  • Compatible With IEEE 802.3af/at Compliant PDs
  • EEE802.3x Flow Control
  • 802.1p/DSCP QoS
  • IGMP Snooping
Transmission Method Store-And-Forward
OTHERS
Certification CE, FCC, RoHS
Package Contents TL-SG1210P, Power Adapter, Installation Guide
Environment
  • Operating Temperature: 0°C~40°C (32°F~104°F)
  • Storage Temperature: -40°C~70°C (-40°F~158°F)
  • Operating Humidity: 10% ~ 90% non-condensing
  • Storage Humidity: 5%~90% non-condensing
