Description

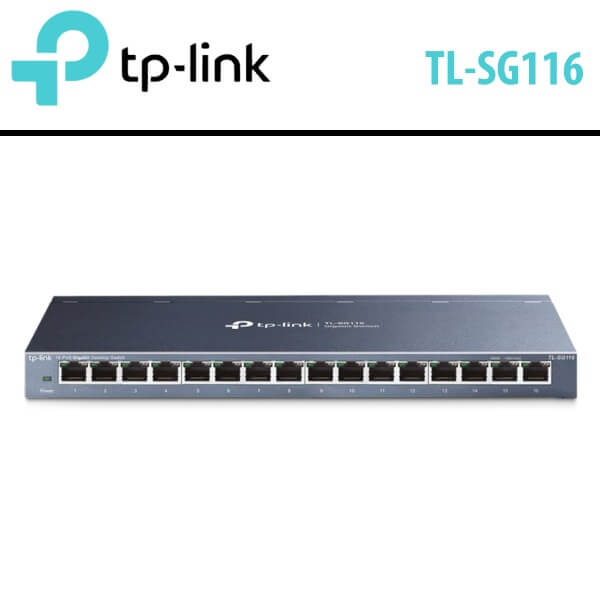

Tplink TL-SG116 Network Switch Nigeria
The Tplink TL-SG116 Nigeria is a 16-Port 10/100/1000Mbps Desktop Switch provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Plug and Play design, with no configuration required, makes the product easy to use. Moreover, Tplink TL-SG116 Nigeria adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG116 can save power consumption, making it an eco-friendly solution for your home or office network.
Features
- 16 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
- Green Ethernet technology saves power consumption
- IEEE 802.3x flow control provides reliable data transfer
- Steel housing, desktop or wall-mounting design
- Support 802.1p/DSCP QoS and IGMP Snooping function
- Plug and play, with no configuration needed
Gigabit Switch
Featured with 16 10/100/1000Mbps ports, Tplink TL-SG116 Nigeria greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.
Go Green with Your Ethernet
You now have the choice to go green when upgrading to a gigabit network! This new generation Tplink TL-SG116 Nigeria 16-Port 10/100/1000Mbps Desktop Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.
Traffic Optimization
802.1p and DSCP QoS enable smooth latency-sensitive traffic such as voice and video, and IGMP Snooping optimizes the Multicast data stream.
Easy to use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Moreover, fanless design ensures quiet operation.
Specifications
| HARDWARE FEATURES | |
| Standards and Protocols | IEEE 802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.1p |
| Interface |
|
| Fan Quantity | Fanless |
| Physical Security Lock | Yes |
| External Power Supply | External Power Adapter 100VAC ~ 240VAC (Output : 12VDC / 1.0A) |
| LED Indicator | System Power Link/Act indicators per port built into each RJ-45 port |
| Dimensions ( W x D x H ) | 11.3 × 4.4 × 1.0 in. (286 × 112 × 25 mm) |
| Max Power Consumption | 10W |
| Max Heat Dissipation | 34.1 BTU/h |
| PERFORMANCE | |
| Packet Forwarding Rate | 23.8Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4.1Mb |
| Jumbo Frame | 10KB |
| SOFTWARE FEATURES | |
| Advanced Features |
|
| Transfer Method | Store and Forward |
| OTHERS | |
| Certification | FCC ,RoHS |
| Package Contents |
|
| Environment |
|
