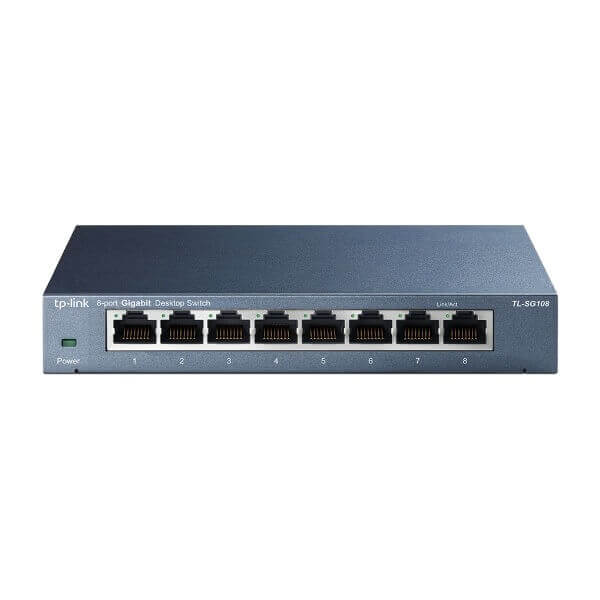

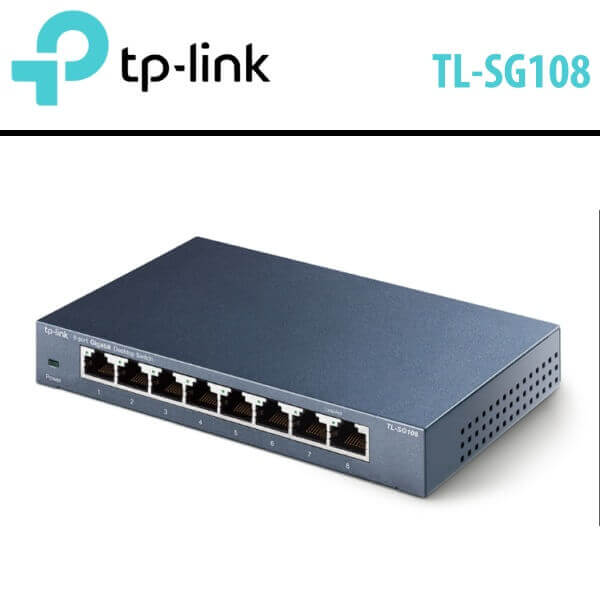

Tplink TL-SG108 Network Switch Nigeria
Tplink TL-SG108 Nigeria 8-Port 10/100/1000 Mb/s Desktop Switch from TP-Link connect a variety of Ethernet-enabled devices to your existing wired network. Equipped with 8 Gigabit Ethernet ports, this unmanaged switch is compatible with IEEE 802.3ab, 802.3x, 802.3u, and 802.3i networking standards. Support for 802.1p helps to prioritize latency-sensitive traffic such as voice, video, and gaming, while IGMP snooping helps optimize multicast traffic.
The Tplink TL-SG108 Nigeria comes with an array of power-savings features that are designed to cut energy consumption based the number of ports in use and cable length, while the unit’s fanless design helps to ensure quiet operation. The steel-housed switch can be placed on a desktop or mounted on a wall.
Features
Link your devices, Create Convenient Business
The Tplink TL-SG108 Nigeria Desktop Switch provides you an easy way to increase the speed of your network server and backbone connections. Whether you are at home or in the office, the TL-SG108 can always help you deal with your business quickly and easily.
Gigabit Ports for Faster Speeds
Increase the speed of your network with Tplink TL-SG108 Nigeria 8-port Gigabit desktop switch. Non-blocking, 8 10/100/1000Mbps ports enables instant transferring of large, bandwidth intensive files without interference.
Simple Setup
The Tplink TL-SG108 Nigeria boasts a plug-and-play design, with no configuration required, while auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device and adjusts for compatibility and optimal performance.
Power-Saving Features
The Tplink TL-SG108 Nigeria is designed to conserve power by automatically detecting the link status of each port and reducing the power consumption of ports that are idle, resulting in an up to 82% reduction of power use. The switch also adjusts its power budget depending on the length of the cables you’re using.
Traffic Optimization
802.1p and DSCP QoS helps smooth the flow of latency-sensitive traffic such as voice and video, while IGMP snooping optimizes the multicast data stream.
Specifications
| HARDWARE FEATURES | |
| Standards and Protocols | IEEE 802.3i / 802.3u / 802.3ab/ 802.3x /802.1p |
| Interface | 8× 10/100/1000Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX |
| Fan Quantity | Fanless |
| External Power Supply | External Power Adapter (Output : 5VDC / 0.6A) |
| LED Indicator |
|
| Dimensions ( W x D x H ) | 6.2 x 4.0 x 1.0 in. (158 x 101 x 25 mm) |
| Max Power Consumption | 2.77 W(220V/50Hz) |
| Max Heat Dissipation | 9.45 BTU/h |
| PERFORMANCE | |
| Packet Forwarding Rate | 11.9 Mpps |
| MAC Address Table | 4K |
| Packet Buffer Memory | 1.5 Mb |
| Jumbo Frame | 16 KB |
| SOFTWARE FEATURES | |
| Advanced Features |
|
| Transfer Method | Store and Forward |
| OTHERS | |
| Certification | CE, FCC ,RoHS |
| Package Contents |
|
| Environment |
|
