Tplink TL-SG1016PE Nigeria

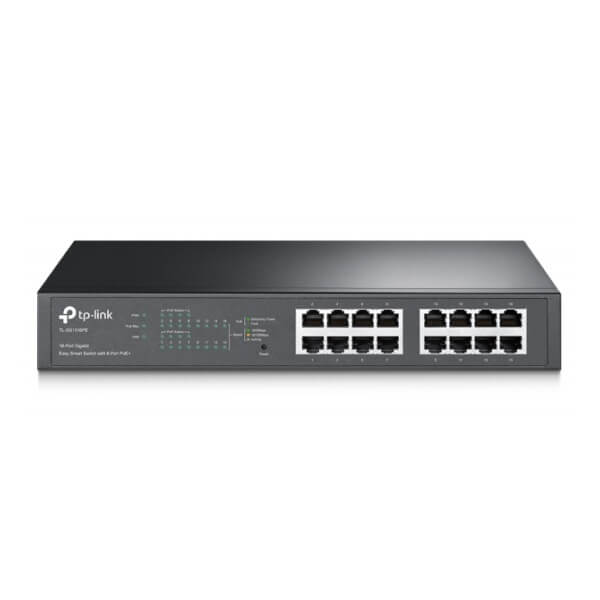

The Tplink TL-SG1016PE Nigeria is a 16-Port Gigabit Desktop/Rack mountable Switch with 8 ports supporting the PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable.

Description

Tplink TL-SG1016PE Network Switch Nigeria

The Tplink TL-SG1016PE Nigeria is a 16-Port Gigabit Desktop/Rack mountable Switch with 8 ports supporting the PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 110W, up to 30W per port, TL-SG1016PE can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, Tplink TL-SG1016PE Nigeria can save up to 75% of the power consumption, making it an eco-friendly solution for your business network.

8 ports of Tplink TL-SG1016PE Nigeria support Power over Ethernet Plus (PoE+) standard which can automatically detect and supply power to any IEEE 802.3af/at compliant device(s). In this situation, the electrical power is transmitted along with data in a single cable, allowing you to expand your network where there are electrical cables or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones.

Features

  • 16 10/100/1000Mbps RJ45 ports
  • Equipped with 8 PoE+ supported ports to transfer data and power over a single cable
  • With a total PoE power budget of 110W, up to 30W per port
  • Works with IEEE 802.3af/at compliant devices, expanding home and office networks
  • Simple network set-up on top of plug-and-play connectivity
  • Web-based user interface and management utility simplify configuration

Overload Arrangement

Tplink TL-SG1016PE Nigeria has a priority function which helps protect the system when its power is overloaded. If all PoE+ devices’ power consumption is greater than or equal to 110W, a priority will be arranged among the 16 PoE+ ports, at which point the system will cut off the power of the lowest-priority port.

Port Priority Function

Tplink TL-SG1016PE Nigeria offer port priority (port 1>port 2>port 3>port 4> port 5>port 6>port 7>port 8): This function will help protect the system if the system power becomes overloaded. For example, Port 1, 2, 3, 4, and 5 are using 30w (maximum power per port is 30W), the system power is 110w in total (PoE max LED will be green if all PoE PDs power consumption is >= 110W). If there is an additional PD inserted to Port 4 with 20w then the system will cut off Port 5 to protect the system, this means Port 1, 2 ,3, will use 90w, and Port 4 will use 20w, and no power will be supplied to Port 5.

Easy to Use

Tplink TL-SG1016PE Nigeria is easy to install and use. It requires no configuration or installation. With its Desktop/Rack mountable design, outstanding performance and quality Tplink TL-SG1016PE Nigeria 16-Port Gigabit Desktop/Rack mountable Switch with 8-Port PoE is a great choice for expanding your home or office network.

Specifications

HARDWARE FEATURES
Standards and Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Interface
  • 16 10/100/1000Mbps RJ45 Ports
  • AUTO Negotiation/AUTO MDI/MDIX
Network Media
  • 10BASE-T : UTP category 3, 4, 5 cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 100BASE-TX : UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 1000BASE-T : UTP category 5, 5e, 6 or above cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity 1
Physical Security Lock Yes
PoE Ports (RJ45)
  • Standard : 802.3 at (30W)
  • PoE Ports : Port 1- Port 8
  • Total PoE Power Budget : 110W

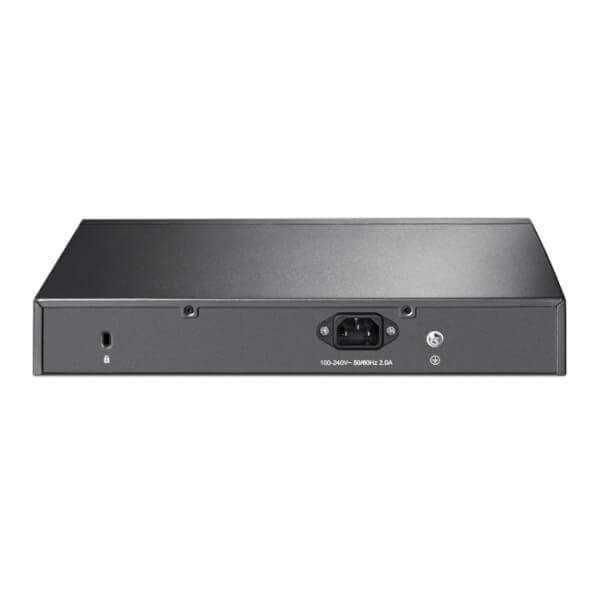

Dimensions ( W x D x H ) 11.6 × 7.1 × 1.7 in.
(294 × 180 × 44 mm)
Mounting 13″ and 19″ 1U rack mountable
Max Power Consumption
  • 14.7W (no PD load)
  • 131.4W (with 110W PD load)
Max Heat Dissipation
  • 50.2 BTU/h (no PD load)
  • 448.4 BTU/h (with 110W PD load)
PERFORMANCE
Switching Capacity 32Gbps
Packet Forwarding Rate 23.8Mbps
MAC Address Table 8K
Packet Buffer Memory 4.1Mb
Jumbo Frame 9KB
SOFTWARE FEATURES
Quality of Service
  • Support Port-Based/802.1p/DSCP priority
  • Support 4 priority queues
  • Rate Limit
  • Storm Control
L2 Features
  • IGMP Snooping V1/V2/V3
  • Link Aggregation
  • Port Mirroring
  • Cable Diagnostics
  • Loop Prevention
VLAN
  • Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
  • MTU/Port/Tag VLAN
Management
  • Web-based GUI
  • Easy Smart Configuration Utility
  • POE Auto Recovery
Transmission Method Store-And-Forward
OTHERS
Certification FCC, RoHS
Package Contents
  • TL-SG1016PE
  • Power Cord
  • Installation Guide
  • Rackmount Kit
  • Rubber Feet
Environment
  • Operating Temperature : 0℃~40℃ (32℉~104℉)
  • Storage Temperature : -40℃~70℃ (-40℉~158℉)
  • Operating Humidity : 10%~90% non-condensing
  • Storage Humidity : 5%~90% non-condensing
