Tplink TL-SF1048 Nigeria

Rating

Tplink TL-SF1048 Nigeria

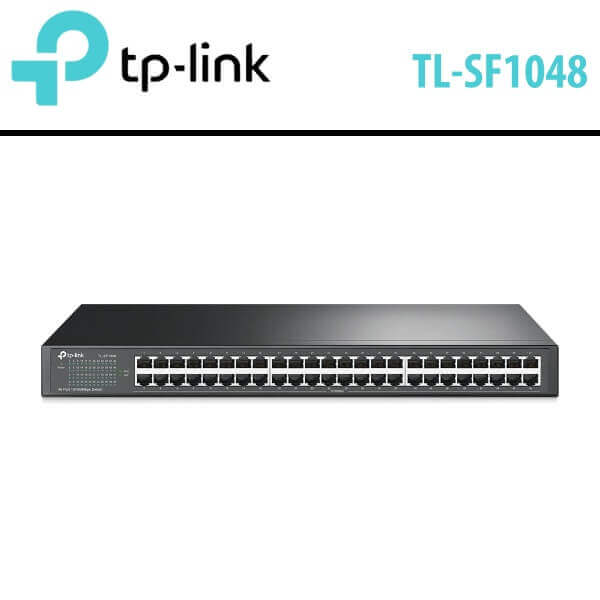

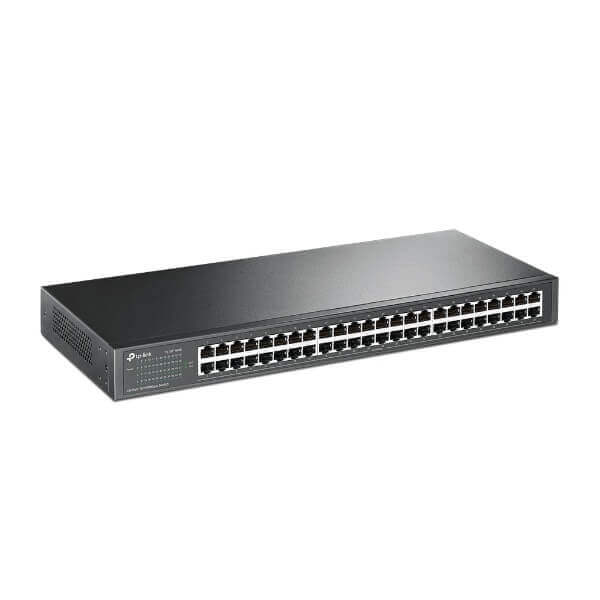

Tplink TL-SF1048 Nigeria is 48-Port 10/100Mbps Rackmount Switch designed to meet the needs of the most demanding workgroup and departmental connectivity requirements.

Description

Tplink TL-SF1048 Network Switch Nigeria

Tplink TL-SF1048 Nigeria is 48-Port 10/100Mbps Rackmount Switch designed to meet the needs of the most demanding workgroup and departmental connectivity requirements. All 48 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-eff client technology, Tplink TL-SF1048 Nigeria can save up to 50% of the power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.

Features

  • 48 10/100Mbps RJ45 ports
  • Innovative energy-efficient technology saves power up to 50%
  • Supports MAC address self-learning and auto MDI/MDIX
  • Standard 19-inch rack-mountable steel case

TP-LINK Green Technology

This new generation Tplink TL-SF1048 Nigeria 10/100Mbps Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.

 High Performance

Featuring non-blocking switching architecture Tplink TL-SF1048 Nigeria, forwards and filters packets at full wire-speed for maximum throughput. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1048 work reliably.

Easy to Use

The auto features of this Fast Ethernet switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100Mbps) and intelligently adjusts for compatibility and optimal performance.

Specifications

HARDWARE FEATURES
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Interface 48 10/100Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
Network Media
  • 10BASE-T : UTP category 3, 4, 5 cable (maximum 100m)
  • 100BASE-TX : UTP category 5, 5e or above cable (maximum 100m)
Fan Quantity Fanless
Physical Security Lock No
Power Supply 100-240VAC, 50/60Hz
Power Consumption Maximum : 9.9W
Dimensions ( W x D x H ) 17.3*7.1*1.7 in. (440*180*44 mm)
Mounting Rack Mountable
Max Power Consumption 9.9W(220V/50Hz)
Max Heat Dissipation 33.78BTU/h
PERFORMANCE
Switching Capacity 9.6Gbps
Packet Forwarding Rate 7.14Mpps
MAC Address Table 8K
Advanced Functions
  • Green Technology
  • 802.3X Flow Control
Green Technology Innovative energy-efficient technology saves power up to 50%
Transfer Method Store-and-Forward
OTHERS
Certification FCC, RoHS
Package Contents
  • 48-Port 10/100Mbps Rackmount Switch
  • Power Cord
  • Installation Guide
  • Rackmount Kit
  • Rubber Feet
System Requirements Microsoft Windows XP, Vista, Windows 7 or Windows 8, MAC OS, NetWare, UNIX or Linux.
Environment
  • Operating Temperature : 0℃~40℃ (32℉~104℉);
  • Storage Temperature : -40℃~70℃ (-40℉~158℉);
  • Operating Humidity : 10%~90% non-condensing;
  • Storage Humidity : 5%~90% non-condensing

Datasheet Download
