Tplink TL-SF1024M Nigeria

Rating

Tplink TL-SF1024M Nigeria

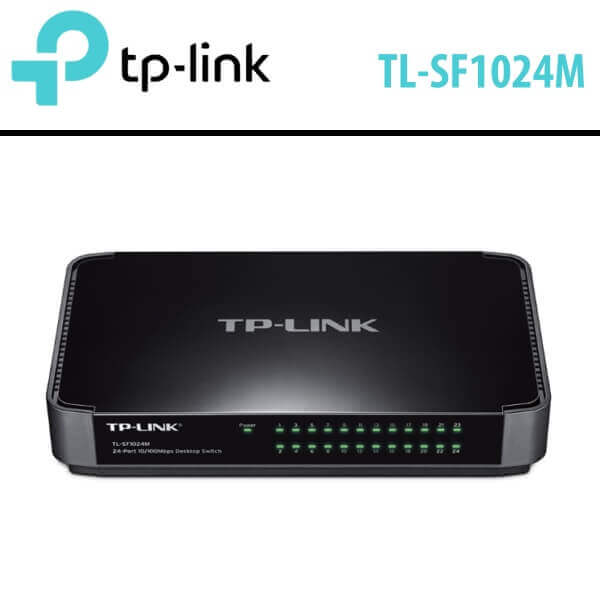

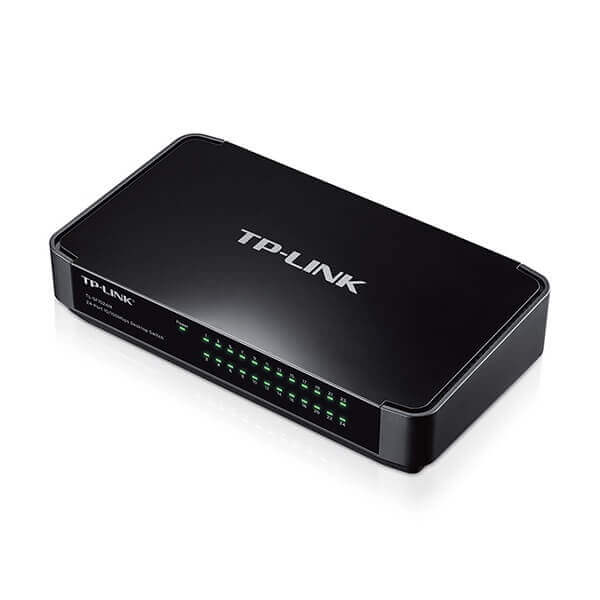

The Tplink TL-SF1024M Nigeria Fast Ethernet Switch is designed for SOHO (Small Office/Home Office) or workgroup users. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play.

Description

Tplink TL-SF1024M Network Switch Nigeria

The Tplink TL-SF1024M Nigeria Fast Ethernet Switch is designed for SOHO (Small Office/Home Office) or workgroup users. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, Tplink TL-SF1024M Nigeria can save up to 67% of the power consumption, making it an eco-friendly solution for your business network.

Features

  • Up to 200 Mbps full duplex bandwidth for high-speed data processing
  • 24 x 10/100 Mbps Ethernet ports
  • Auto MDI/MDIX eliminates the need for crossover cables
  • Auto-negotiation ports provide smart integration between 10 Mbps and 100 Mbps hardware
  • IEEE 802.3x ow control provides reliable data transfer
  • Innovative energy-efficient technology saves up to 67% of power consumption
  • Plug-and-play design simplifies installation

High Performance

Tplink TL-SF1024M Nigeria Fast Ethernet Switch provides 24 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. Featuring non-blocking switching architecture, TL-SF1024M forwards and filters packets at full wire-speed for maximum throughput. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1024M work reliably.

TP-LINK Green Technology

This new generation Tplink TL-SF1024M Nigeria Fast Ethernet Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials.

Easy to Use

The auto features of this switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100 Mbps) and intelligently adjusts for compatibility and optimal performance.

 Specifications

HARDWARE FEATURES
Interface
  • 24 10/100Mbps RJ45 Ports
  • AUTO Negotiation/AUTO MDI/MDIX
Fan Quantity Fanless
Physical Security Lock No
Power Consumption Maximum : 3.68W (220V/50Hz)
External Power Supply External Power Adapter (Output : 9VDC / 0.6A)
Mac Address Table 8K
Dimensions ( W x D x H ) 8.7 x 5.0 x 1.8 in. ( 222 x 126 x 45 mm)
Max Power Consumption 3.36W(220V/50Hz)
Max Heat Dissipation 11.46BTU/h
SOFTWARE FEATURES
Transfer Method Store and Forward
Advanced Functions
  • Green Technology, saving power up to 67%
  • 802.3X Flow Control, Back Pressure
OTHERS
Certification FCC, RoHs
Package Contents
  • 24-Port 10/100Mbps Desktop Switch TL-SF1024M
  • Power Adapter
  • Installation Guide
Environment
  • Operating Temperature : 0℃~40℃ (32℉~104℉);
  • Storage Temperature : -40℃~70℃ (-40℉~158℉);
  • Operating Humidity : 10%~90% non-condensing;
  • Storage Humidity : 5%~90% non-condensing

Datasheet Download
