Tplink TL-SF1009P Nigeria

Rating

Tplink TL-SF1009P Nigeria

Tplink TL-SF1009P Nigeria unmanaged switch features nine 10/100 Mb/s ports, eight of which are PoE+ compliant with total power budget of 65W. All eight of the 30W PoE+ can be put into Extend Mode, which increases the 10 Mb/s data and power transmission range to as far as 820 feet.

Description

Tplink TL-SF1009P Network Switch Nigeria

Tplink TL-SF1009P Nigeria unmanaged switch features nine 10/100 Mb/s ports, eight of which are PoE+ compliant with total power budget of 65W. All eight of the 30W PoE+ can be put into Extend Mode, which increases the 10 Mb/s data and power transmission range to as far as 820 feet. Additionally, sliding the related switch enables priority mode for ports one and two, which helps to ensure smooth high-speed video and audio traffic. With its plug-and-play design, this switch can be integrated into your network without any additional hardware or software. The fanless metal design allows the TL-SF1009P to operate quietly on desktops and it can be mounted onto a wall.

Features

  • 9× 10/100 Mbps RJ45 ports
  • 8× PoE+ ports transfer data and power on individual cables
  • Works with IEEE 802.3af/at compliant PDs
  • Supports PoE Power up to 30 W for each PoE port
  • Supports PoE Power up to 65 W for 8 PoE ports*
  • Up to 250 m data and power transmitting range under Extend Mode**
  • Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
  • Isolation Mode allows one-click client traffic separation for higher security and performance
  • Plug and play with no configuration required

Professional 9-Port Switch with 8-Port PoE+ (65 W Budget) for Numerous Applications

Compliance with the 802.3af/at PoE+ standard supports up to 30W on each PoE port. The total 65 W PoE power budget* for the 8× PoE+ ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

Ideal for IP Surveillance—Up to 250 m Transmissions

Tplink TL-SF1009P Nigeria is equipped with extend mode, the PoE transmission distance reaches up to 250 m—perfect for IP Camera deployment in large areas.

Ideal for IP Surveillance—Higher Performance and Security

Tplink TL-SF1009P Nigeria packs priority Mode and Isolation Mode make surveillance smoother and safer.

Priority Video Quality Guaranteed

Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–2 when one-touch Priority Mode is on.

One-Click Traffic Separation for Ports 1-8

With one click, Isolation Mode easily divides traffic for ports 1–8 to avoid snooping and tampering. This enables the switch to isolate broadcast storm, improving LAN security and data transmission.

Intelligent Power Management

When total power consumption exceeds 65 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.

Durable Metal Casing

The interior components of TL-SF1009P are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1009P delivers switching performance you can depend on.

Specifications

HARDWARE FEATURES
Interface

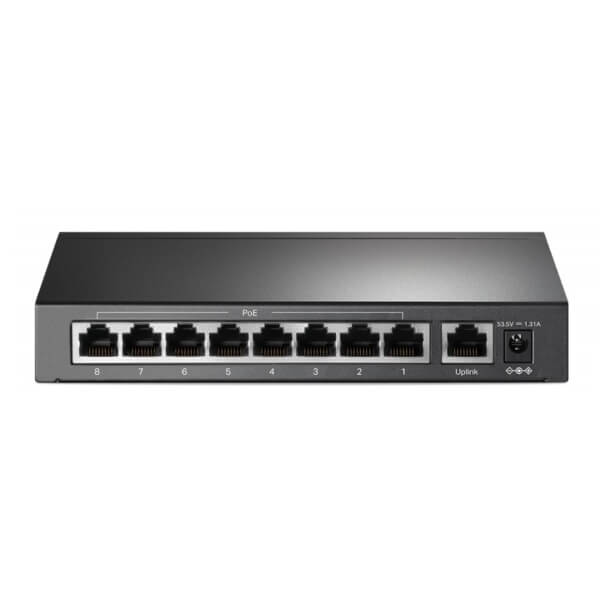

  • 9× 10/100 Mbps RJ45 Ports (8× 10/100 Mbps 802.3af/at PoE+ ports)
  • AUTO Negotiation
  • AUTO MDI/MDIX
Network Media
  • 10BASE-T : UTP category 3, 4, 5 cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 100BASE-TX : UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
Physical Security Lock Yes
External Power Supply External Power Adapter (Output : 53.5VDC / 1.3A)
Packet Forwarding Rate 1.3392 Mpps
PoE Ports (RJ45)
  • Standard : 802.3 af/at compliant
  • PoE Ports : Ports 1–8
  • Power Supply : 65 W
Mac Address Table 2K
Jumbo Frame 2 KB
Switching Capacity 1.8 Gbps
Dimensions ( W x D x H ) 6.7 × 3.9 × 1.1 in
(171 × 98 × 27 mm)
Max Power Consumption 3.6 (no PD connected)
77.1 (with 65 W PD connected)
Max Heat Dissipation
  • 12.3 BTU/h (no PD connected)
  • 262.8 BTU/h (with 65 W PD connected)
SOFTWARE FEATURES
Transmission Method Store-And-Forward
Advanced Functions
  • Compatible With IEEE 802.3af/at Compliant PDs
  • Extend Mode Button (Ports 1–4 and Ports 1–8, Up to 250 m PoE power supply and data transmission)
  • Priority Mode Button (Ports 1–2)
  • Isolation Mode Button (Ports 1–8)
  • Mac Address Auto-Learning and Auto-Aging
  • IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode
OTHERS
Certification FCC, CE, RoHS
Package Contents
  • TL-SF1009P
  • Power Adapter
  • Installation Guide
Environment
  • Operating Temperature : 0–40 ℃ (32–104 ℉)
  • Storage Temperature : -40–70 ℃ (-40–158 ℉)
  • Operating Humidity : 10–90% RH non-condensing
  • Storage Humidity : 5–90% RH non-condensing
