Tplink TL-SF1006P Nigeria

Rating

Tplink TL-SF1006P Nigeria

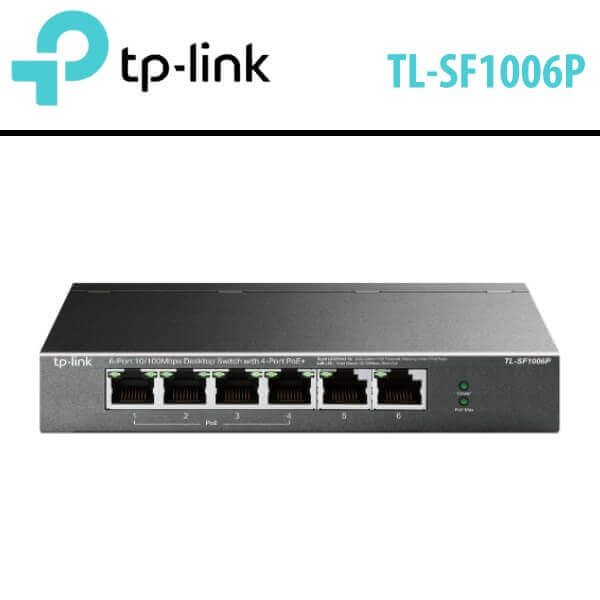

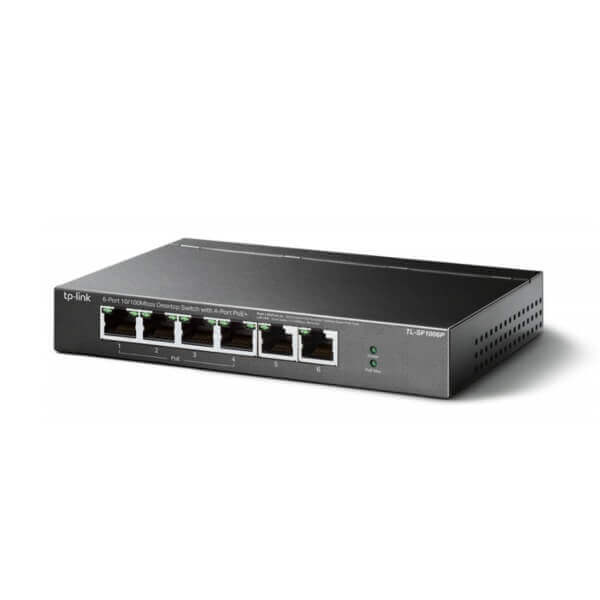

Tplink TL-SF1006P Nigeria PoE Switch is a non-manageable PoE Switch with 6x 10/100Mbps, two ports are for uplink without PoE and the remaining 4 ports supports PoE-Out with standards 802.3af/at (up to 30W/port).

Description

Tplink TL-SF1006P PoE Switch Nigeria

Tplink TL-SF1006P Nigeria PoE Switch is a non-manageable PoE Switch with 6x 10/100Mbps, two ports are for uplink without PoE and the remaining 4 ports supports PoE-Out with standards 802.3af/at (up to 30W/port). The total PoE budget switch is 67W. The switch also supports with turned on extend mode, the PoE transmission distance reaches up to 250m – perfect for IP Camera deployment in large areas. other switch bonuses are priority PoE and Intelligent power management.

Features

  • 6× 10/100 Mbps RJ45 ports
  • 4× PoE+ ports transfer data and power on individual cables
  • Works with IEEE 802.3af/at compliant PDs
  • Up to 250m data and power transmitting range under Extend Mode
  • Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
  • Supports PoE Power up to 30 W for each PoE port
  • Supports PoE Power up to 67 W for all PoE ports
  • Plug and play with no configuration required

Ideal for IP Surveillance—Up to 250 m Transmissions

With extend mode, the PoE transmission distance reaches up to 250 m—perfect for IP Camera deployment in large areas.

Priority Video Quality Guaranteed

Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–2 when one-touch Priority Mode is on.

Intelligent Power Management

When total power consumption exceeds 67 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. Tplink TL-SF1006P Nigeria automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.

Durable Metal Casing

The interior components of Tplink TL-SF1006P Nigeria are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1006P delivers switching performance you can depend on.

Specifications

HARDWARE FEATURES
Interface
  • 6× 10/100 Mbps RJ45 Ports (ports 1–4 support 802.3af/at PoE+)
  • AUTO Negotiation
  • AUTO MDI/MDIX
Network Media
  • 10BASE-T : UTP category 3, 4, 5 cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 100BASE-TX : UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
Physical Security Lock Yes
External Power Supply External Power Adapter (Output : 53.5 V DC / 1.31 A)
Packet Forwarding Rate 0.8928 Mpps
PoE Ports (RJ45)
  • Standard : 802.3 af/at compliant
  • PoE Ports : Ports 1–4
  • Power Supply : 67 W
Mac Address Table 2K
Jumbo Frame 2 KB
Switching Capacity 1.2 Gbps
Dimensions ( W x D x H ) 6.2 x 4.0 x 1.0 in (158 x 101 x 25 mm)
Max Power Consumption
  • 1.9 W (220 V / 50 Hz, no PD connected)
  • 74 W (220 V / 50 Hz, with 67 W PD connected)
Max Heat Dissipation
  • 6.48 BTU/h(no PD connected)
  • 252.34 BTU/h(with 67 W PD connected)
SOFTWARE FEATURES
Transmission Method Store-And-Forward
Advanced Functions
  • Compatible With IEEE 802.3af/at Compliant PDs
  • Extend Mode Button (Ports 1–4)
  • Priority Mode Button (Ports 1–2)
  • Mac Address Auto-Learning and Auto-Aging
  • IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode
OTHERS
Certification FCC, CE, RoHS
Package Contents
  • TL-SF1006P
  • Power Adapter
  • Installation Guide
Environment
  • Operating Temperature : 0–40 ℃ (32–104 ℉)
  • Storage Temperature : -40–70 ℃ (-40–158 ℉)
  • Operating Humidity : 10–90% RH non-condensing
  • Storage Humidity : 5–90% RH non-condensing
