Tplink TL-SF1005LP Nigeria

Description

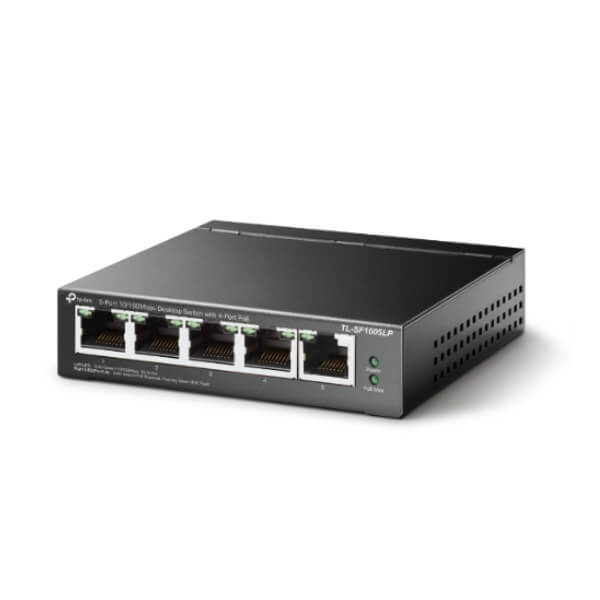

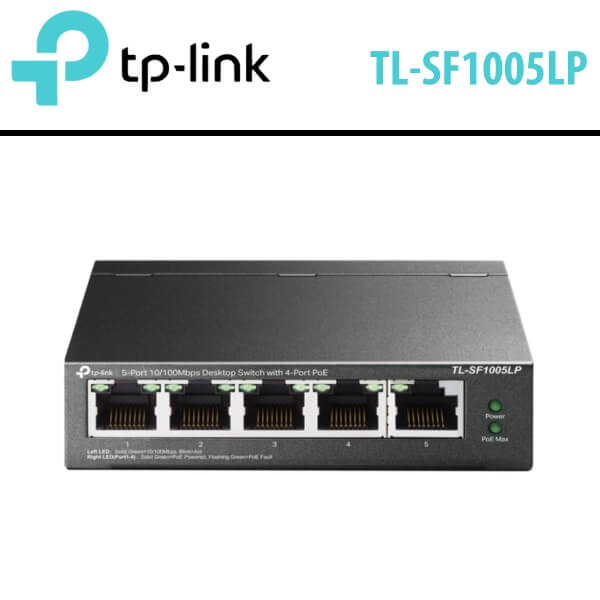

Tplink TL-SF1005LP Network Switch Nigeria

Tplink TL-SF1005LP Nigeria is 5-Port 10/100Mbps Desktop PoE Switch with 4-Port PoE provides reliable switch ensuring high quality of transmission, making this type of switch is perfect solution for expanding home or office network. Tplink TL-SF1005LP Nigeria Switch has the priority function which will help protect the system when the system power is overloaded. The power consumption of the devices powered by PoE is up to 41W. The devices connected to the ports with higher priority are powered in the first place.

Features

5× 10/100 Mbps RJ45 ports
4× PoE ports transfer data and power on individual cables
Works with IEEE 802.3af compliant PDs
Up to 250 m data and power transmitting range under Extend Mode**
Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
Supports PoE Power up to 41 W for all PoE ports*
Plug and play with no configuration required

Dedicated 4-Port PoE Switch (41 W Budget) for Numerous Applications

Tplink TL-SF1005LP Nigeria is compliant with the 802.3af PoE standard supports up to 15.4W on each PoE port. The total 41 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

Priority Video Quality Guaranteed

Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–2 when one-touch Priority Mode is on.

Intelligent Power Management

When total power consumption exceeds 41 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. Tplink TL-SF1005LP Nigeria also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.

Durable Metal Casing

The interior components of Tplink TL-SF1005LP Nigeria are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1005LP delivers switching performance you can depend on.

Specifications

HARDWARE FEATURES
Interface	5× 10/100 Mbps RJ45 Ports (Ports 1–4 support 802.3af PoE) AUTO Negotiation AUTO MDI/MDIX
Network Media	10BASE-T : UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX : UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity	Fanless
Physical Security Lock	Yes
External Power Supply	External Power Adapter (Output : 53.5 V DC / 0.81 A)
Packet Forwarding Rate	0.744 Mpps
PoE Ports (RJ45)	Standard : 802.3 af compliant PoE Ports : Ports 1–4 Power Supply : 41 W
Mac Address Table	2K
Jumbo Frame	2 KB
Switching Capacity	1 Gbps
Dimensions ( W x D x H )	3.9 x 3.9 x 1.0 in (100 x 98 x 25 mm)
Max Power Consumption	1.9 W (220 V / 50 Hz, no PD connected) 47 W (220 V / 50 Hz, with 41 W PD connected)
Max Heat Dissipation	6.48 BTU/h(no PD connected) 160.27 BTU/h(with 41 W PD connected)
SOFTWARE FEATURES
Transmission Method	Store-And-Forward
Advanced Functions	Compatible With IEEE 802.3af/at Compliant PDs Extend Mode Button (Ports 1–4) Priority Mode Button (Ports 1–2) Mac Address Auto-Learning And Auto-Aging IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode
OTHERS
Certification	FCC, CE, RoHS
Package Contents	TL-SF1005LP Power Adapter Installation Guide
Environment	Operating Temperature : 0–40 ℃ (32–104 ℉) Storage Temperature : -40–70 ℃ (-40–158 ℉) Operating Humidity : 10–90% RH non-condensing Storage Humidity : 5–90% RH non-condensing
