Description

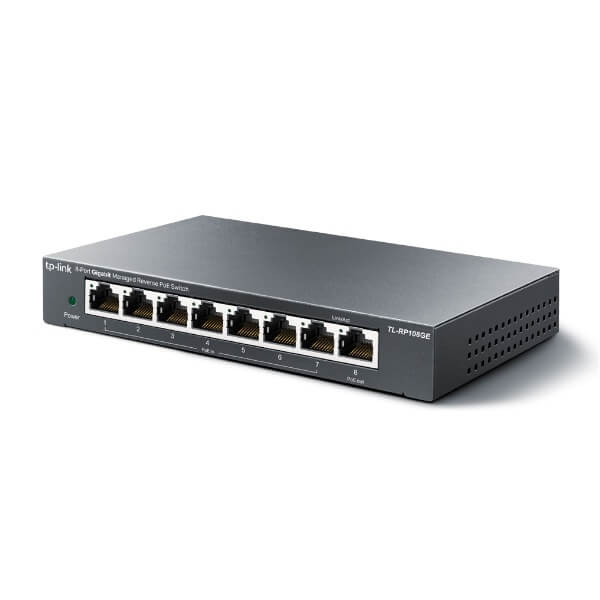

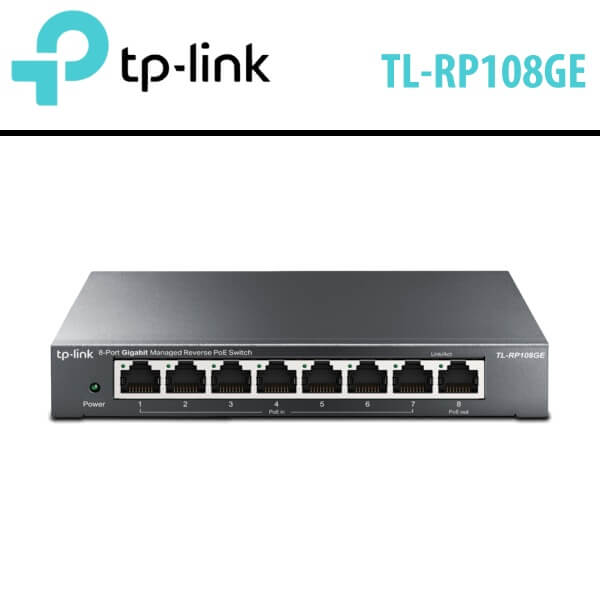

Tplink TL-RP108GE Network Switch Nigeria
The Tplink TL-RP108GE Nigeria Passive PoE switch has seven gigabit PoE input ports that allow it to receive power from user outlets via PoE injectors. Equipped with one PoE output port, this Tplink TL-RP108GE Nigeria switch can supply power to CPEs and similar devices via Port 8. The DC output port supports both 5 V and 12 V optional output voltage and can be used to power devices like ONTs. With data switching and PoE integrated into a single unit, Tplink TL-RP108GE Nigeria saves space, minimizes cabling, and eliminates the need for dedicated electrical outlets—lowering deployment costs and simplifying installation for PoE-capable devices.
Features
- 7 PoE input and 1 PoE output 10/100/1000 Mbps RJ45 Ports

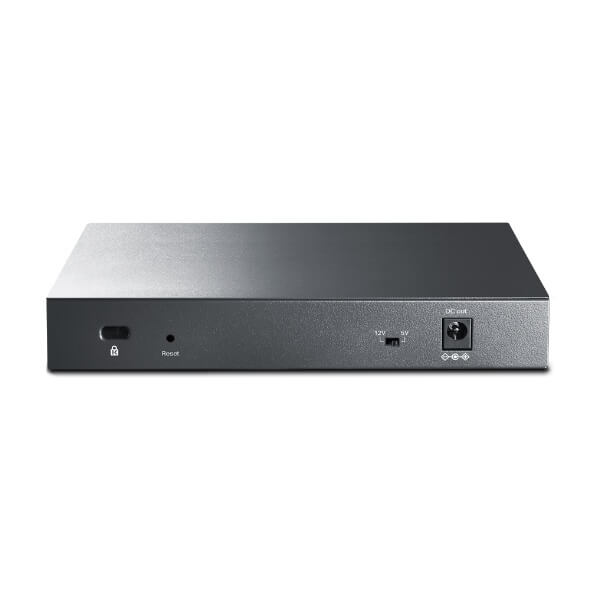

- 1 DC output port that supports both 5V and 12 V voltage switching
- Durable metal casing of superior quality and professional appearance
- Intelligent management via a web user interface and downloadable utility
- Green technology reduces power consumption
Easy to Use
Connecting devices to Tplink TL-RP108GE Nigeria is simple. Auto MDI/MDI-X crossover on all ports eliminates the need for crossover cables or uplink ports. Auto-negotiation on each port detects the link speed of network devices and intelligently adjusts settings for compatibility and optimal performance.
Abundant Software Features
TL-RP108GE excels not only in simple plug-and-play networks, but also in more demanding environments.
- 1p and DSCP QoS ensure smooth traffic.
- Network monitoring enables users to observe traffic behavior.
- Port Mirroring, Loop Prevention and Cable Diagnostics allow connection problems on your network to be identified and located.
- Port/802.1p/DSCP QoS: Designate the priority of the traffic, for example, to ensure that voice and video applications remain clear and lag-free.
- MTU VLAN, port-based VLAN and 802.1Q-based VLAN: Meet more network segmentation requirements and provide a more secure network.
Durable Metal casing
The interior components of Tplink TL-RP108GE Nigeria are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-RP108GE delivers switching performance you can depend on. Its compact size makes it ideal for deployment on desktops or work benches.
Go Green with Your Ethernet
Tplink TL-RP108GE Nigeria makes use of innovative energy-saving technologies. Power consumption automatically adjusts according to the link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Protect the planet and lower your energy bills
Specifications
HARDWARE FEATURES | |
Standards and Protocols | CSMA/CD |
Interface |
|
Network Media |
|
Packet Forwarding Rate | 11.9 Mbps |
Mac Address Table | 4 K |
Jumbo Frame | 16 KB |
Switching Capacity | 16 Gbps |
IEEE Standards |
|
Data Rates |
|
LED Indicator | Power, Link/Act LED |
Dimensions ( W x D x H ) | 6.2 × 3.9 × 1.0 in (158 × 99.1 × 25 mm) |
Max Power Consumption |
|
Max Heat Dissipation |
|
SOFTWARE FEATURES | |
Quality of Service |
|
L2 Features |
|
VLAN |
|
Transmission Method | Store-And-Forward |
OTHERS | |
Certification | FCC, CE, RoHS |
Package Contents |
|
System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, MAC OS, NetWare, UNIX or Linux. |
Environment |
|
