Description

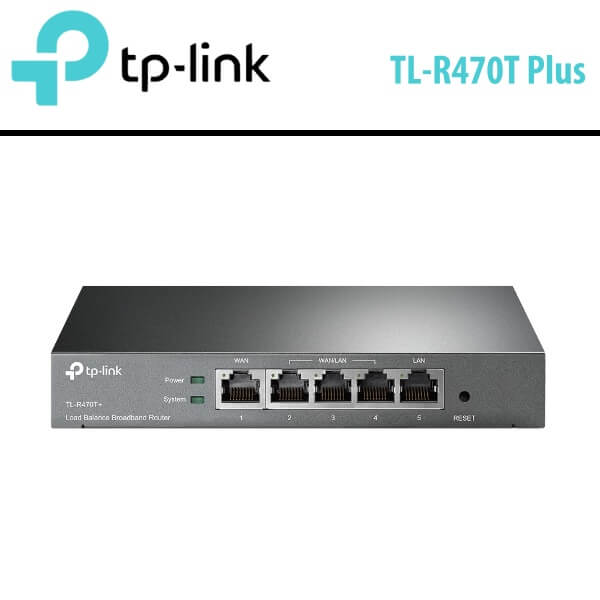

Tplink TL-R470TPlus Load Balance Router Nigeria
The Tplink TL-R470TPlus Nigeria is a load balance broadband router providing a wise choice for small business. It brings you a high return on investment with low overhead. Featuring three changeable WAN/LAN ports, TL-R470TPlus supports up to 4 WAN ports, which can satisfy various Internet access requirements through one device. Tplink TL-R470TPlus Nigeria integrates multiple load balancing strategies, advanced QoS and strong firewall to provide you with consistent network uptime and reliable Ethernet connectivity. Moreover, it is easy to manage the TL-R470TPlus via a web browser, which makes building and managing your network more convenient.
Features
- Up to 4 WAN 10/100 ports for multiple Internet connections. Load balancing by bandwidth distribution, by type of application, or simply failover when the main connection is disturbed1
- Web interface portal authentication evaluate and authenticate all the accesses to the Internet for better access and bandwidth management
- Marshals bandwidth resource to specific clients based on their unique application environments
Three Changeable WAN/LAN Ports
The Tplink TL-R470TPlus Nigeria features three changeable ports that can be set to either LAN or WAN, allowing the router to support up to four WAN ports to satisfy various Internet access requirements through one device. The router also has an integrated smart load balancing function which automatically selects the most efficient line according to load and bandwidth requirements, providing users with consistent network uptime and reliable Ethernet connectivity.
Abundant Security Features
For defense against external threats, Tplink TL-R470TPlus Nigeria can automatically detect and block Denial of services (DoS) attacks such as TCP/UDP/ICMP Flooding, Ping of Death and other related threats. Moreover, this router provides IP/MAC/URL/WEB filtering functions, which forcefully prevent attacks from intruders and viruses. For applications such as FTP, H.323, SIP, IPsec, and PPTP which are not well compatible with NAT, TL-R470TPlus offers administrators one-click enable of ALG choices corresponding to the above five applications.
Efficient Access Management
Web portal authentication inspects and allows all connecting sessions whether from wire or wireless. When the access control works together with IP-based bandwidth control, you can configure the dedicated bandwidth for certain account.
Safety Minded Enterprise Investments
Professional lightning protection technology2 is designed to prevent electrical surges from penetrating the interior of the device, to be discharged harmlessly into the Earth. Tplink TL-R470TPlus Nigeria router is designed to prevent lightning damage of up to 4KV in the well-grounded connection conditions. This feature ensures that networking infrastructure investments remain as safe as possible from one of Mother Nature’s more violent elements.
Specifications
HARDWARE FEATURES | |
Standards and Protocols | IEEE 802.3, 802.3u, 802.3x, TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DDNS |
Interface |
|
Network Media |
|
Button | Reset Button |

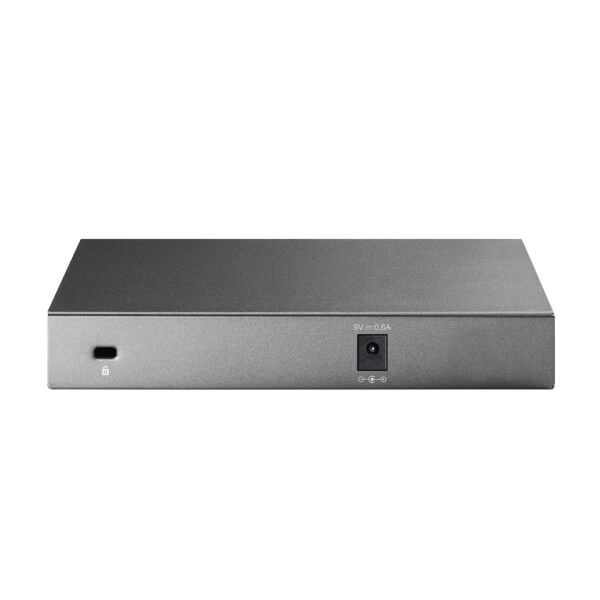

Power Supply | External 9V/0.6A DC Adapter |
Flash | 16MB |
DRAM | 128MB |
LED | PWR, SYS, WAN, LAN, WAN/LAN |
Dimensions ( W x D x H ) | 6.2 × 4.0 × 1.0 in. (158 × 101 × 25mm) |
PERFORMANCE | |
Concurrent Session | 10K |
BASIC FUNCTIONS | |
WAN Connection Type | Static/Dynamic IP, PPPoE, PPTP, L2TP, Dual Access, Bigpond Cable |
MAC Clone | Modify WAN/LAN MAC Address |
DHCP | DHCP Server/Client, DHCP Address Reservation |
Switch Setting | Rate Control, Port Configuration, Port VLAN |
ADVANCED FUNCTIONS | |
ACL | IP/MAC/URL/WEB Filtering |
IGMP | IGMP Proxy/IGMP Snooping |
Forwarding | Virtual Server, Port Triggering, DMZ |
Load Balance | Policy Routing, Link Backup |
Routing | Static Routing |
Security | FTP/SIP/PPTP/IPsec/H.323 ALG, DoS Defence, Ping of Death, IP/MAC Binding |
Traffic Control | Bandwidth Control, Session Limit |
MANAGEMENT | |
Service | Dynamic DNS, UPnP |
Maintenance |
|
OTHERS | |
Certification | CE, FCC, RoHS |
Package Contents |
|
Environment |
|
