Tplink TL-POE200 Nigeria

Rating

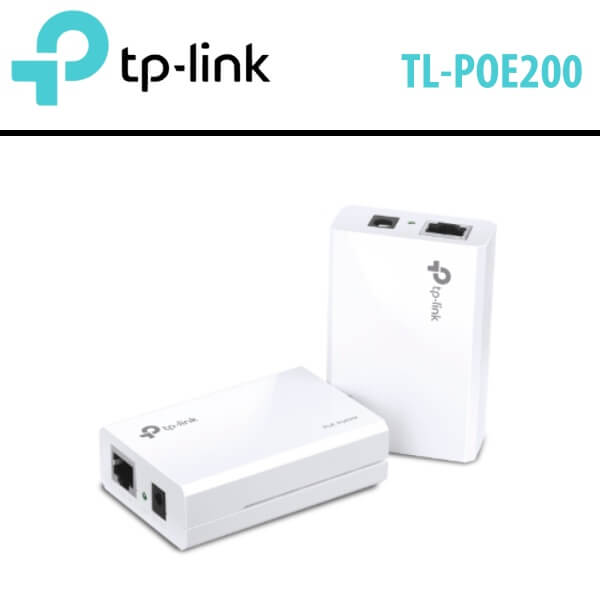

Tplink TL-POE200 Nigeria

The Tplink TL-POE200 Nigeria is Power over Ethernet Adapter Kit designed to deliver power and data over a single Ethernet cable to an Ethernet enabled device up to 100m away.

Category:

Description

Tplink TL-POE200 PoE Adapter Kit Nigeria

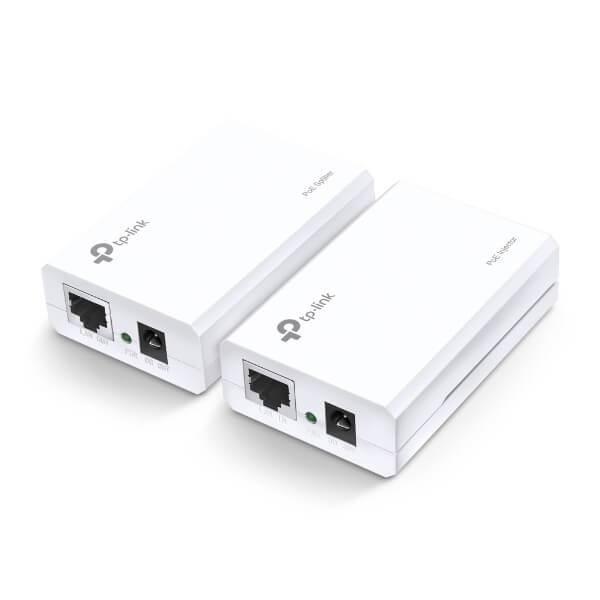

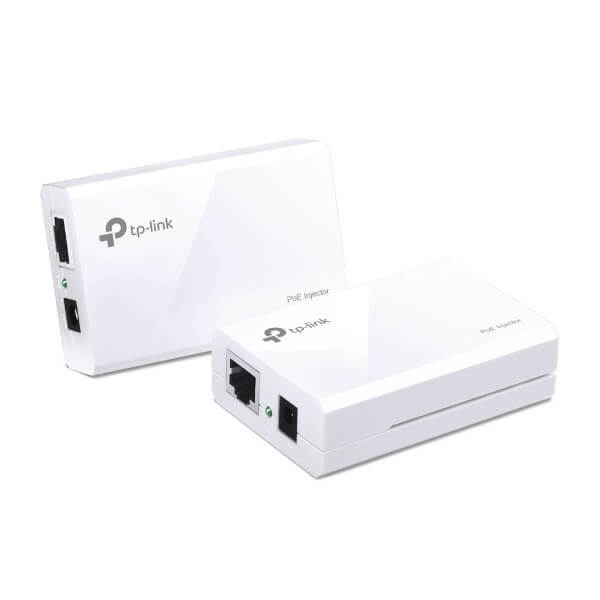

The Tplink TL-POE200 Nigeria is Power over Ethernet Adapter Kit designed to deliver power and data over a single Ethernet cable to an Ethernet enabled device up to 100m away. The PoE kit uses two devices, one, the ´injector´ injects power and data into a single Ethernet cable while the other, the ´splitter´ placed at the receiving end splits the power and data back into two cables to be used by the connected Ethernet device. This convenience allows users to place Ethernet enabled devices such as access points, IP cameras, or VoIP phones anywhere that they are best suited, regardless of whether a power socket is available, to achieve the best performance for the connected devices.

Tplink TL-POE200 Nigeria uses widely adopted PoE technology in the industry and provides more cost-effective PoE solution. Tplink TL-POE200 Nigeria is highly recommended not to pair the PoE products with other PoE adapters unless under professional guidance.

Features

  • Carries power & data over a single Ethernet cable up to 100 meters (328 feet) away
  • 12VDC, 9VDC, or 5VDC selectable power output
  • Plug-and-Play, requires no configuration

Specifications

HARDWARE FEATURES
Interface For POE200A:

  • 1 10/100Mbps Auto-Negotiation/Auto MDI/MDIX RJ45 LAN port
  • 1 10/100Mbps Auto-Negotiation/Auto MDI/MDIX RJ45 PSE port
  • 1 48VDC power input port

For POE200B :

  • 1 10/100Mbps Auto-Negotiation/Auto MDI/MDIX RJ45 LAN port
  • 1 10/100Mbps Auto-Negotiation/Auto MDI/MDIX RJ45 PD port
  • 1 12/9/5VDC power output port (5.5 mm round barrel)
LED Indicator PWR
Dimensions ( W x D x H ) 3.2 × 2.1 × 0.9 in.
(81 × 54 × 24 mm)
OTHERS
Power Supply Unit of PoE Injector Input :

  • 100~240VAC
  • Output : 48V, 0.5A Switching PSU
Output Power For PoE Splitter 12, 9, 5VDC selectable
Environment
  • Operating Temperature : 0℃~40℃ (32℉~104℉)
  • Storage Temperature : -40℃~70℃ (-40℉~158℉)
  • Operating Humidity : 10%~90% non-condensing
  • Storage Humidity : 5%~90% non-condensing

Datasheet Download
