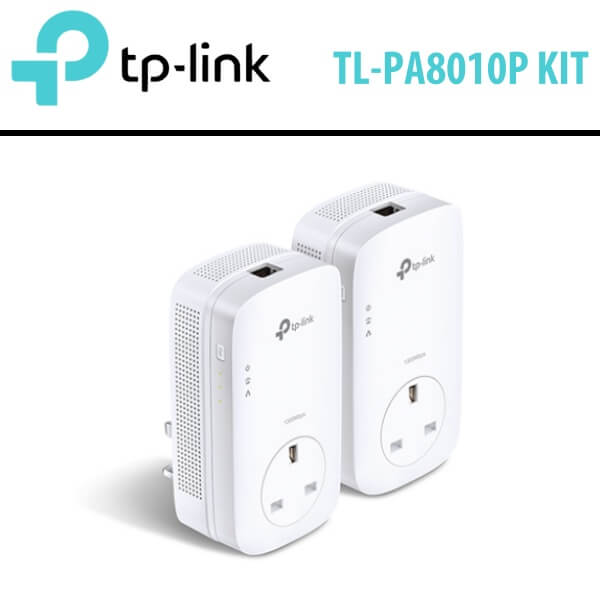

Tplink TL-PA8010P KIT Nigeria

Rating

Tplink TL-PA8010P KIT Nigeria

Tplink TL-PA8010P KIT Nigeria is a Powerline Adapter that Upgrades 1300Mbps Perfect for Bandwidth Demanding Activities. With Advanced HomePlug AV2 technology means Tplink TL-PA8010P KIT Powerline supports 2×2 MIMO

Description

Tplink TL-PA8010P KIT Powerline Adapter Nigeria

Tplink TL-PA8010P KIT Nigeria is a Powerline Adapter that Upgrades 1300Mbps Perfect for Bandwidth Demanding Activities. With Advanced HomePlug AV2 technology means Tplink TL-PA8010P KIT Nigeria supports 2×2 MIMO with beamforming, so users benefit from ultra-fast data transfer speeds of up to 1300Mbps. Perfect for bandwidth demanding activities like streaming Ultra HD video to multiple devices simultaneously, online gaming and large file transfers.

Features

  • HomePlug AV2 standard compliant, high-speed data transfer rates of up to 1300Mbps1, supports all your online needs
  • Line-Neutral/Line-Ground 2×2 MIMO with Beamforming ensures larger range, higher transmission capacity and more stable connections
  • Gigabit port provides secure wired networks for desktops, smart TVs or games consoles
  • Integrated power socket ensures no power outlet goes to waste
  • Plug and play, no configuration required
  • Patented Power-Saving Mode automatically reduces power consumption by up to 85%

Larger Range

Tplink TL-PA8010P KIT Nigeria is equipped with MIMO Technology with Beamforming maximizes the performance on the independent streams, which improves coverage throughout the home, particularly for previously hard to reach outlets.

Higher Transmission Capacity & More Stable Connections

MIMO Technology ensures Tplink TL-PA8010P KIT Nigeria use the 3 wires, including the live, neutral and earth to create multiple data paths, meaning that you benefit from faster data throughput and more stable connections.

Gigabit Port for Ultra-Fast Data Transfer Speed

With one Gigabit Ethernet port, Tplink TL-PA8010P KIT Nigeria allows users to connect a bandwidth intensive device to the Internet at high speeds and ensures the smooth transmission of Ultra HD video streaming. This makes the TL-PA8010P KIT the perfect home entertainment companion.

Plug and Play, No Configuration Required

Connect a Tplink TL-PA8010P KIT Nigeria powerline adapter to the router; plug another powerline adapter into a wall socket in another room, and connect it to your Internet enabled device via Ethernet – and you’re done!

Extra Power Socket for Additional Devices

The integrated power socket, with power output of up to 16A, ensures Tplink TL-PA8010P KIT Nigeria powerline can be used like a traditional electrical socket. Simply plug in your device or extension lead as though it were a normal wall socket. The built-in noise filter also helps to prevent electrical signal noise from affecting Powerline performance.

Power Save by Up to 85%

Tplink TL-PA8010P KIT Nigeria is a new-generation of Powerline adapter. Its sophisticated Power-Saving mode automatically switches from its regular “Working” mode to “Power-Saving” mode reducing energy consumption by up to 85%.

Specifications

HARDWARE FEATURES
Plug Type EU, UK
Standards and Protocols HomePlug AV2, HomePlug AV, IEEE1901, IEEE802.3, IEEE802.3u, IEEE802.3ab
Interface 1 * Gigabit Ethernet Port, Power Socket
Button Pair Button
Power Consumption
  • Maximum: 6W (220V/50Hz)
  • Typical: 6W (220V/50Hz)
  • Standby: 0.5W (220V/50Hz)
LED Indicator PWR, PLC, ETH
Dimensions ( W x D x H ) 5.2×2.8×1.7 in. (131×72×42 mm)
Range 300 Meters over electrical circuit
Power Output to Integrated Socket 16 A
SOFTWARE FEATURES
Modulation Technology OFDM (PLC)
Encryption Powerline Security:
128-bit AES
OTHERS
Certification CE, RoHS
Package Contents
  • Powerline Ethernet Adapter
  • 6.5 ft. (2 m) Ethernet cable (RJ45)
  • Quick Installation Guide
System Requirements Windows 2000/XP/2003/Vista, Windows 7/8/8.1, Mac, Linux
Environment
  • Operating Temperature: 0°C~40°C (32°F ~104°F)
  • Storage Temperature: -40°C~70°C (-40°F ~158°F)
  • Operating Humidity: 10%~90% non-condensing
  • Storage Humidity: 5%~90% non-condensing





Datasheet Download
