Tplink TL-FC111A20 Nigeria

The Tplink TL-FC111A20 Nigeria is a 100M media converter, providing a 100M RJ-45 port and a 100M SC fiber port, which can convert between electrical and optical signals.

Category:

Description

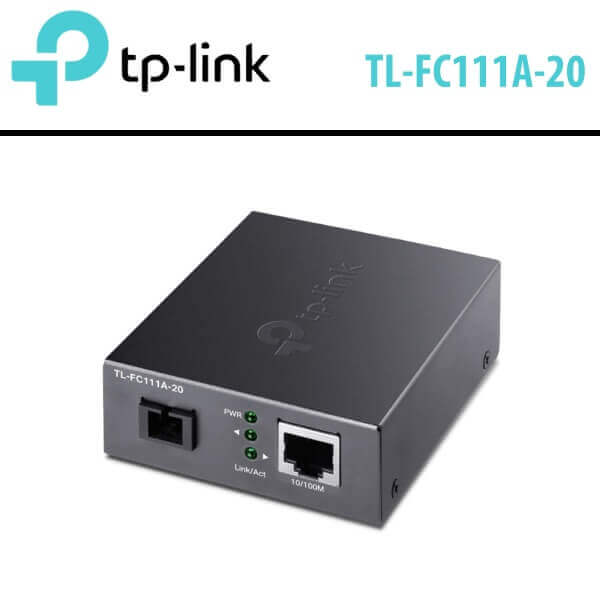

Tplink TL-FC111A20 Media Converter Nigeria

The Tplink TL-FC111A20 Nigeria is a 100M media converter, providing a 100M RJ-45 port and a 100M SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking. Tplink TL-FC111A20 Nigeria adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20km (12.4 miles) over only one fiber, which saves half of the cable deployment cost for customers. TL-FC111A-20 transmits data at 1550nm wavelength and receives data at 1310nm wavelength on optical fiber. The Tplink TL-FC111A20 works in the other end as a pair by receiving data at wavelength 1550nm and sending data at wavelength 1310nm.

Features

  • Complies with 802.3u 10/100Base-TX, 100Base-FX standards
  • Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
  • 9/125 μm SMF (Single-Mode Fiber)
  • Bidirectional WDM communication on a single fiber
  • Ranges up to 20km (12.4 miles)
  • Work with TL-FC111B-20 as a pair

Specifications

General
Compatibility TP-Link TL-FC111B-20
Power
Power Source AC Input (Included)
DC Input Power 5 VDC at 0.6 A
Environmental
Certifications CE, FCC, RoHS
Operating Temperature 32 to 122°F / 0 to 50°C
Operating Humidity 10 to 90% (Non-Condensing)
Storage Temperature -40 to 158°F / -40 to 70°C
Storage Humidity 5 to 90% (Non-Condensing)
Physical
Cable Length Not Specified by Manufacturer
Dimensions 3.7 x 2.9 x 1.1″ / 95 x 73 x 27 mm
Weight Not Specified by Manufacturer
Packaging Info
Package Weight 0.76 lb
Box Dimensions (LxWxH) 8.1 x 6.5 x 2.6″

Datasheet Download
