Tplink TD-W8961N Nigeria

Rating

Tplink TD-W8961N Nigeria

Tplink TD-W8961N Nigeria features 300Mbps Wireless N ADSL2+ Modem Router is an incredibly robust all-in-one device that provides a full rate of ADSL2+ standard with the superb reliability and a cost-effective solution for home and small business.

Description

Tplink TD-W8961N DSL Modems Router Nigeria

Tplink TD-W8961N Nigeria features 300Mbps Wireless N ADSL2+ Modem Router is an incredibly robust all-in-one device that provides a full rate of ADSL2+ standard with the superb reliability and a cost-effective solution for home and small business. With Tplink TD-W8961N Nigeria, you can easily create a secure wireless network and share a high-speed internet connection while access to shared files, music, photos, and printers with multiple computers.

Features

  • All-in-One Device: ADSL2+ Modem, NAT Router, 4-Port Switch and Wireless N Access Point
  • Easy Setup Assistant with multi-language support provides quick & hassle-free installation
  • Easy one-touch wireless security encryption with the ‘WPS’ button and easy Wi-Fi On/Off button
  • Wireless N speed up to 300Mbps makes it ideal for heavy bandwidth consuming or interruption sensitive applications like online gaming, Internet calls and even the HD video streaming

Powerful Antennas

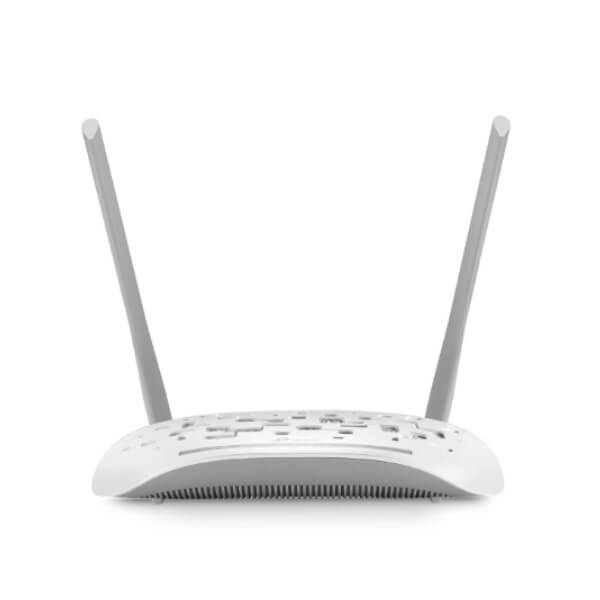

 Tplink TD-W8961N Nigeria has two external 5dBi high-gain antennas send signals to every corner of your home, creating a strong and stable Wi-Fi network.

Wi-Fi & WPS Buttons

With the Wi-Fi On/Off button, you can easily enable or disable wireless broadcasting, and with the “WPS” button, you can easily encrypt your wireless network with one click.

One-Stop Solution

The Tplink TD-W8961N Nigeria does the work of several networking devices packed into one sleek device. With an ADSL2+ modem, NAT router, 4-port switch and 300Mbps wireless N access point, this device eliminates the need to purchase multiple devices to access and share a high-speed internet connection

Incredible Wireless Performance

With 300Mbps 802.11n wireless and 4 Megabit LAN ports, Tplink TD-W8961N Nigeria is the ideal choice for bandwidth heavy users that rely on speedy, reliable connections for bandwidth intensive work or entertainment such as lag-free conference calls, HD video streaming or online gaming

Ideal for Multimedia Application

Port VLAN binds specific LAN ports and PVCs for differential services like IPTV. The Tplink TD-W8961N Nigeria has built-in QoS engine provides various QoS policies that help prioritize Internet traffic to enable smooth IPTV streaming and lag-free online gaming. Thus users can experience the benefits of a smooth network connection without worrying about traffic congestion. Combined with IGMP multicast and IGMP snooping features the TD-W8961N makes an ideal solution for multimedia applications

Specifications

HARDWARE FEATURES
Interface

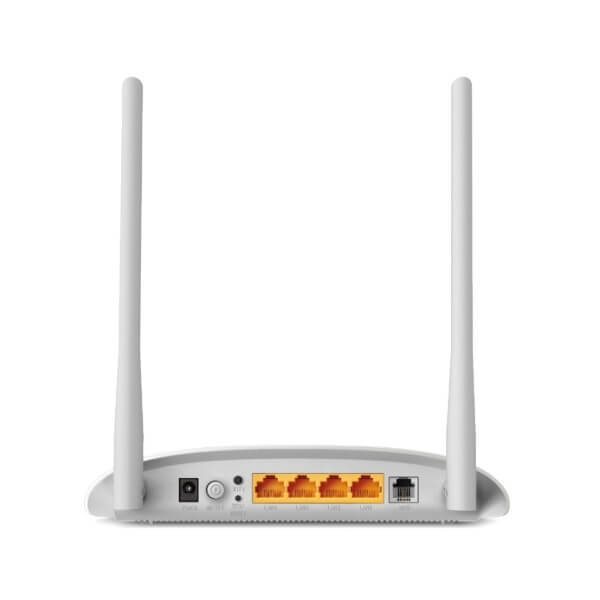

  • 4 10/100Mbps RJ45 Ports
  • 1 RJ11 Port
Button
  • 1 Power On/Off Switch
  • 1 WPS Button
  • 1 Wi-Fi On/Off Button
External Power Supply 9VDC/0.85A
IEEE Standards IEEE 802.3, 802.3u
ADSL Standards
  • Full-rate ANSI T1.413 Issue 2,
  • ITU-T G.992.1(G.DMT),
  • ITU-T G.992.2(G.Lite)
  • ITU-T G.994.1 (G.hs),
  • ITU-T G.995.1
ADSL2 Standards
  • ITU-T G.992.3 (G.dmt.bis),
  • ITU-T G.992.4 (G.lite.bis)
ADSL2+ Standards ITU-T G.992.5
Dimensions ( W x D x H ) 7.7 * 5.1 * 1.4 in. (195 * 130 * 35 mm )
Antenna Type Omni directional, Fixed
Antenna Gain 2x5dBi
WIRELESS FEATURES
Wireless Standards IEEE 802.11n, 802.11g, 802.11b
Frequency 2.400-2.4835GHz
Transmit Power <20dBm(EIRP)
Wireless Security
  • Support 64/128 bit WEP, WPA-PSK/WPA2-PSK,
  • Wireless MAC Filtering
SOFTWARE FEATURES
Quality of Service QoS Remarking based on IPP/ToS, DSCP and 802.1p
Security
  • NAT Firewall,
  • SPI Firewall,
  • MAC / IP / Packet / Application / URL Filtering,
  • Denial of Service(DoS),
  • SYN Flooding,
  • Ping of Death
Management
  • Web Based Configuration(HTTP),
  • Remote management,
  • Telnet management,
  • Command Line Interface,
  • SSL for TR-069,
  • SNMP v1/2c,
  • SNMP over EOC,
  • Web Based Firmware Upgrade,
  • CWMP(TR-069),
  • Diagnostic Tools
Port Forwarding Virtual Server, DMZ, ACL(Access Control List)
VPN Pass-Through PPTP, L2TP, IPSec Pass-through
ATM/PPP Protocols
  • ATM Forum UNI3.1/4.0,
  • PPP over ATM (RFC 2364),
  • PPP over Ethernet (RFC2516),
  • IPoA (RFC1577/2225),
  • PVC – Up to 8 PVCs
Advanced Features
  • Traffic Shaping(ATM QoS) UBR, CBR, VBR-rt, VBR-nrt;
  • Dynamic Host Configuration Protocol (DHCP), DHCP relay;
  • Network Address Translation (NAT);
  • PVC/Ethernet Port Mapping
  • VLAN, 802.1P,
  • Static Routing, RIP v1/v2 (optional);
  • DNS Relay, DDNS,
  • IGMP snooping V1/2
  • IGMP Multicast,
  • UPnP
OTHERS
Certification CE, FCC, RoHS
Package Contents
  • TD-W8961N
  • External Splitter
  • RJ-11 Telephone Cable
  • RJ-45 Ethernet Cable
  • Quick Installation Guide
  • Power Adapter
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ ,Windows 7 or Windows 8, MAC OS, NetWare, UNIX or Linux.
Environment
  • Operating Temperature: 0℃~40℃ (32℉~104℉)
  • Storage Temperature: -40℃~70℃ (-40℉~158℉)
  • Operating Humidity: 10%~90% non-condensing
  • Storage Humidity: 5%~90% non-condensing
