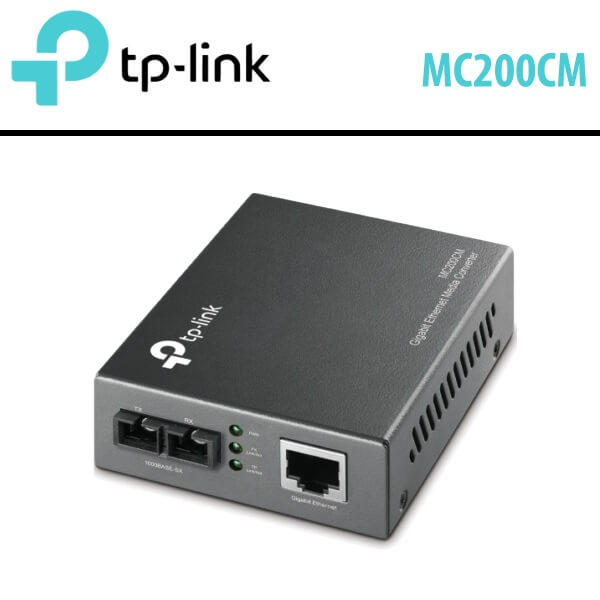

Tplink MC200CM Nigeria

The Tplink MC200CM Nigeria is a media converter designed to convert 1000BASE-SX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX standards, MC200CM is used with multi-mode fiber cable utilizing the SC-Type connector.

Category:

Description

Tplink MC200CM Media Converter Nigeria

The Tplink MC200CM Nigeria is a media converter designed to convert 1000BASE-SX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX standards, Tplink MC200CM Nigeria is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The MC200CM supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data

 Auto MDI/MDI-X for TX port, and front panel status LEDs. The Tplink MC200CM Nigeria will transmit at extended fiber optic distances utilizing multi-mode fiber up to 1,800 feet (550 meters).

Features

  • 1 10/100/1000Mbps Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX
  • Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
  • Complies with IEEE 802.3ab and IEEE 802.3z
  • Extends fiber distance up to 1,800 feet (550m)

Specifications

MEDIA CONVERTER & MODULE
Standards and Protocols IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x
Basic Function
  • Full Duplex Flow Control (IEEE 802.3x)
  • Extends fiber distance up to 0.5km using 50/125um fiber
  • Extends fiber distance up to 0.22km using 62.5/125um fiber
Ports
  • 1 1000M SC/UPC port
  • 1 1000M RJ45 port (Auto MDI/MDIX)
Wave Length 850nm
Network Media 1000BASE-FX Multi-mode Fiber
Network Media 1000BASE-SX Multi-mode Fiber
Network Media 1000BASE-T
  • UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
LED Indicators PWR, LINK, RX
Dimensions (W*D*H) 3.7*2.9*1.1 in. (94.5*73.0*27.0 mm)
Power Supply External Power Adapter
Max Power Consumption 5.5W
Safety & Emission FCC, CE, RoHS
Package Contents
  • Media Converter MC200CM
  • Power Adapter
  • Installation Guide
Environment
  • Operating Temperature : 0℃~40℃ (32℉~104℉)
  • Storage Temperature : -40℃~70℃ (-40℉~158℉)
  • Operating Humidity : 10%~90% non-condensing
  • Storage Humidity : 5%~90% non-condensing
