Tplink EAP660 HD Nigeria

Rating

Tplink EAP660 HD Nigeria

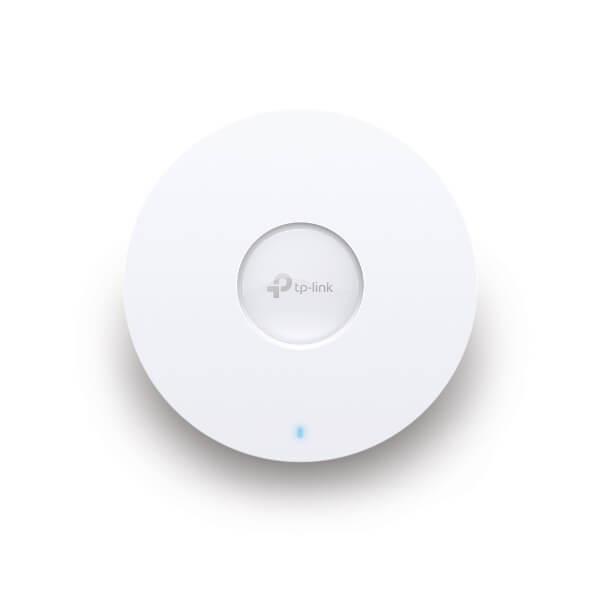

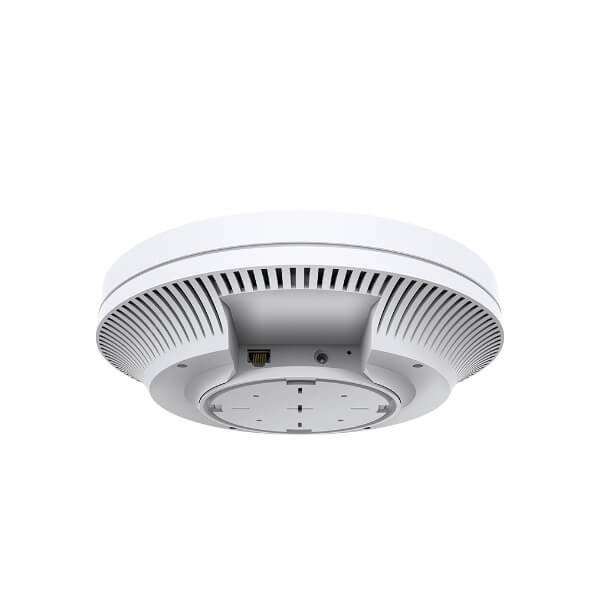

The Tplink EAP660 HD Nigeria AX3600 Wireless Dual Band Multi-Gigabit Ceiling Mount Access Point. It is designed with an appearance that discreetly blends into most environments when mounted on a wall or ceiling using one of the included kits

Description

Tplink EAP660 HD Access Point Nigeria

The Tplink EAP660 HD Nigeria AX3600 Wireless Dual Band Multi-Gigabit Ceiling Mount Access Point. It is designed with an appearance that discreetly blends into most environments when mounted on a wall or ceiling using one of the included kits, this dual-band 802.11ax Wi-Fi access point delivers up to 3550 Mb/s wireless speeds over the 2.4 GHz and 5 GHz frequencies. With 802.11k/v roaming technology, users automatically switch to the access point with the strongest signal as they move, helping to ensure uninterrupted connections. Tplink EAP660 HD Nigeria packs power adapter, the EAP660 HD’s PoE-complaint 2.5 Gigabit Ethernet port supports 802.3at PoE and multi-Gig speeds with compatible switches for flexible installation. Your wireless network is protected by enterprise-class security and you can manage it from almost anywhere using the Omada cloud platform.

Features

  • Ultra-Fast Wi-Fi 6 Speeds :  Simultaneous 1148 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 3550 Mbps Wi-Fi speeds.
  • High-Density Connectivity : 4× increased capacity to connect more devices simultaneously.
  • Integrated into Omada SDN : Zero-Touch Provisioning (ZTP)§, Centralized Cloud Management, and Intelligent Monitoring.
  • Centralized Management : Cloud access and Omada app for ultra-convenience and easy management.
  • 5G Port :  A 2.5 Gbps Ethernet port boosts total internet throughput.
  • Seamless Roaming : Even video streams and voice calls are unaffected as users move between locations.
  • PoE+ Support :  Supports Power over Ethernet (802.3at) for convenient deployment and installation.
  • Secure Guest Network : Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.

Blazing Fast Speed with 8 Spatial Streams

The Omada Wi-Fi 6 Access Point features the latest 802.11ax technologies like 1024 QAM and Long OFDM Symbol, which allows the EAP to boost overall speeds up to 3550 Mbps (2402 Mbps on a 5 GHz band and 1148 Mbps on a 2.4 GHz band). With 8 spatial streams, multi-user throughput is incredibly increased to drive more applications

Omada SDN—Smarter Cloud Solution for Business Networking

Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.

Hassle-Free Centralized Cloud Management

Tplink EAP660 HD Nigeria is 100% centralized cloud management of whole network from different sites—all controlled from a single interface anywhere, anytime.

Optimized Wired Performance with 2.5 GE PoE+ Port

Armed with a 2.5 Gigabit Ethernet Port, Tplink EAP660 HD Nigeria delivers exceptional multi-gigabit performance to support the insatiable demand for better and faster Wi-Fi. Compatibility with standard 802.3at PoE+ is ideal for flexible deployment.

Seamless Roaming

802.11k/v roaming switches clients automatically to the AP with the optimal signal with a seamless transition when moving. This allows sensitive applications like VoIP and video conferences to go uninterrupted.

Secure Guest Network with Facebook Wi-Fi and SMS Login

Tplink EAP660 HD Nigeria provides elevated secure access to guests sharing your Wi-Fi network, with captive portal helping maintain only authorized guests to use the network. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and power up your business.

Specifications

HARDWARE FEATURES
Interface 1× 2.5 Gbps Ethernet Port (supports IEEE802.3at PoE)
Button Reset
Power Supply 802.3at PoE or 12 V DC
Power Consumption 21.5 W
Dimensions ( W x D x H ) 9.6 × 9.6 × 2.5 in.
(243 × 243 × 64 mm)
Antenna Type Internal Omni

  • 2.4 GHz : 4× 4 dBi
  • 5 GHz : 4× 5 dBi
Mounting Ceiling or wall mount
(kits included)
WIRELESS FEATURES
Wireless Standards IEEE 802.11ax/ac/n/g/b/a
Frequency 2.4 GHz and 5 GHz
Signal Rate
  • 5 GHz : Up to 2402 Mbps
  • 2.4 GHz : Up to 1148 Mbps
Wireless Functions
  • 1024-QAM
  • 4× Longer OFDM Symbol
  • OFDMA
  • Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
  • Enable/Disable Wireless Radio
  • Automatic Channel Assignment
  • Transmit Power Control (Adjust Transmit Power on dBm)
  • QoS(WMM)
  • MU-MIMO
  • Seamless Roaming△
  • Omada Mesh△
  • Band Steering
  • Load Balance
  • Airtime Fairness
  • Beamforming
  • Rate Limit
  • Reboot Schedule
  • Wireless Schedule
  • Wireless Statistics based on SSID/AP/Client
Wireless Security
  • Captive Portal Authentication△
  • Access Control
  • Wireless Mac Address Filtering
  • Wireless Isolation Between Clients
  • SSID to VLAN Mapping
  • Rogue AP Detection
  • 802.1X Support
  • WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power < 26 dBm (2.4 GHz)
< 26 dBm (5 GHz)
MANAGEMENT
Omada App Yes
Centralized Management
  • Omada Cloud-Based Controller
  • Omada Hardware Controller (OC300)
  • Omada Hardware Controller (OC200)
  • Omada Software Controller
Cloud Access Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1, v2c, v3
System Logging Local/Remote Syslog Local/Remote Syslog
SSH Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
OTHERS
Certification CE, FCC, RoHS
Package Contents
  • EAP660 HD
  • Power Adapter
  • Ceiling/Wall Mounting Kits
  • Installation Guide
Environment
  • Operating Temperature : 0–40 ℃ (32–104 ℉)
  • Storage Temperature : -40–70 ℃ (-40–158 ℉)
  • Operating Humidity : 10–90% RH non-condensing
  • Storage Humidity : 5–90% RH non-condensing



Datasheet Download
