Tplink EAP650 Nigeria

Rating

Tplink EAP650 Nigeria

Tplink EAP650 Nigeria Access Point provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network.

Description

Tplink EAP650 Access Point Nigeria

Tplink EAP650 Nigeria Access Point provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network. The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers.

Features

  • Ultra-Fast WiFi 6 Speeds :  Simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 2976 Mbps WiFi speeds.
  • High-Efficiency WiFi 6 : More connected devices can enjoy faster speeds.
  • Centralized Cloud Management : Omada SDN integration manages the whole network locally or from the cloud via web UI or Omada app.
  • 160 MHz Channel : Double the data at peak transmission times on a single stream with HE160.
  • Seamless Roaming : Video streams and voice calls are unaffected as users move between locations.
  • Omada Mesh :  Enables wireless connectivity between access points for extended range and flexible deployment
  • PoE+ Powered : Supports both 802.3at PoE+ and DC (adapter included) power supply for flexible installations.
  • Ultra-Slim Design : 160 mm × 33.6 mm elegant design brings more agility.

Seamless Integration into Omada SDN

The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers. It provides 100% centralized cloud management and creates a highly scalable network controlled from a single interface.

Auto Channel Selection and Power Adjustment

Tplink EAP650 Nigeria Provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network

Easy Pairing, Less Wiring

With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.

Optimized Network Performance

Tplink EAP650 Nigeria boasts of intelligent self-organization that optimizes the best path between EAPs while self-healing ensures you stay online even when one AP is disrupted.

Always Stay Smooth with Fast Roaming

Tplink EAP650 Nigeria ensures customers to enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.

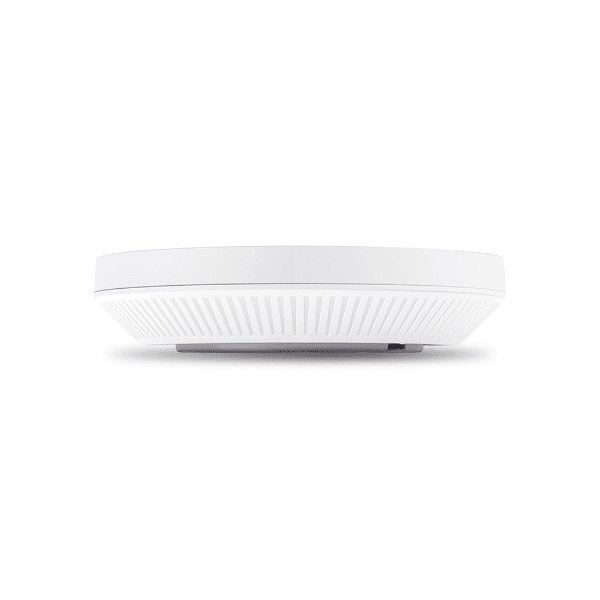

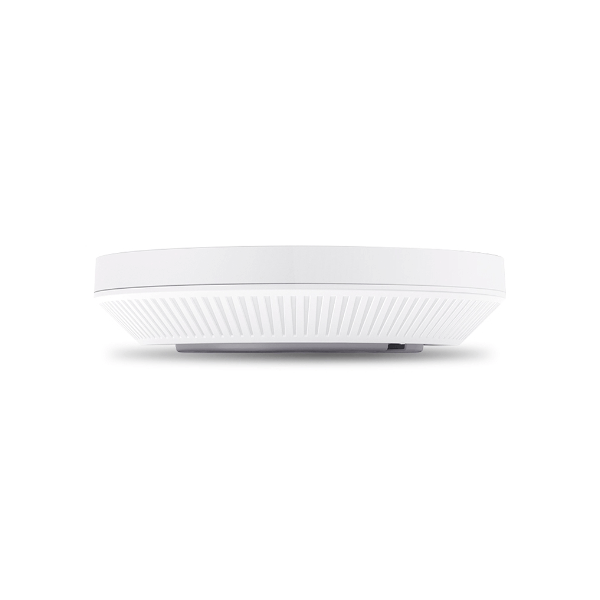

Ultra-Slim Design Brings More Agility

Tplink EAP650 Nigeria provides exceptional performance with compact design ensuring simple WiFi installation while saving space. The elegant appearance makes EAP650 perfectly blend into any modern office, hotel, classroom, or café

 Specifications

HARDWARE FEATURES
Interface 1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
Button Reset
Power Supply 802.3at PoE
12V DC (Power Adapter included)
(EU Version : 12 V / 1.0 A DC. US Version : 12 V / 1.5 A DC).
Power Consumption
  • EU : 13.5 W
  • US : 14.7 W
Dimensions ( W x D x H ) 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm)
Antenna Type Internal Omni

  • 2.4 GHz : 2× 4 dBi
  • 5 GHz : 2× 5 dBi
Mounting
  • Ceiling /Wall Mounting (Kits included)
  • Junction Box Mounting
WIRELESS FEATURES
Wireless Standards IEEE 802.11ax/ac/n/g/b/a
Frequency 2.4 GHz and 5 GHz
Signal Rate
  • 5 GHz : Up to 2402 Mbps
  • 2.4 GHz : Up to 574 Mbps
Wireless Functions
  • 1024-QAM
  • 4× Longer OFDM Symbol
  • OFDMA
  • Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
  • Enable/Disable Wireless Radio
  • Automatic Channel Assignment
  • Transmit Power Control (Adjust Transmit Power on dBm)
  • QoS(WMM)
  • MU-MIMO
  • HE160 (160 MHz Bandwidth)‡
  • Seamless Roaming §
  • Omada Mesh§
  • Band Steering
  • Load Balance
  • Airtime Fairness
  • Beamforming
  • Rate Limit
  • Reboot Schedule
  • Wireless Schedule
  • Wireless Statistics based on SSID/AP/Client
Wireless Security
  • Captive Portal Authentication§
  • Access Control
  • Wireless Mac Address Filtering
  • Wireless Isolation Between Clients
  • SSID to VLAN Mapping
  • Rogue AP Detection
  • 802.1X Support
  • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power CE :

  • <20 dBm(2.4 GHz, EIRP)
  • <23 dBm(5 GHz, Band1 & Band2, EIRP)
  • <30 dBm(5 GHz, Band3, EIRP)

FCC :

  • <25 dBm (2.4 GHz)
  • <25 dBm (5 GHz)
MANAGEMENT
Omada App Yes
Centralized Management
  • Omada Hardware Controller (OC300)
  • Omada Hardware Controller (OC200)
  • Omada Software Controller
  • Omada Cloud-Based Controller
Cloud Access Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1, v2c, v3
System Logging Local/Remote Syslog Local/Remote Syslog
SSH Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
OTHERS
Certification CE, FCC, RoHS
Package Contents
  • EAP650
  • Power Adapter
  • Ceiling/Wall Mounting Kits
  • Installation Guide
System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
Environment
  • Operating Temperature : 0–40 ℃ (32–104 ℉)
  • Storage Temperature : -40–70 ℃ (-40–158 ℉)
  • Operating Humidity : 10–90% RH non-condensing
  • Storage Humidity : 5–90% RH non-condensing





Datasheet Download
